Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MOSRAC
-
Model Number:
-
DMFE140
-
Torque:
-
6/16/18/40/50/100 (Nm)
-
AC Voltage:
-
220V
-
Certification:
-
3C, CE, ROHS
-
Product Name:
-
Direct Drive Motor
Quick Details
-
Speed(RPM):
-
3/5 (Rps)
-
Continuous Current(A):
-
custom
-
Efficiency:
-
IE 4
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MOSRAC
-
Model Number:
-
DMFE140
-
Torque:
-
6/16/18/40/50/100 (Nm)
-
AC Voltage:
-
220V
-
Certification:
-
3C, CE, ROHS
-
Product Name:
-
Direct Drive Motor
Product Description

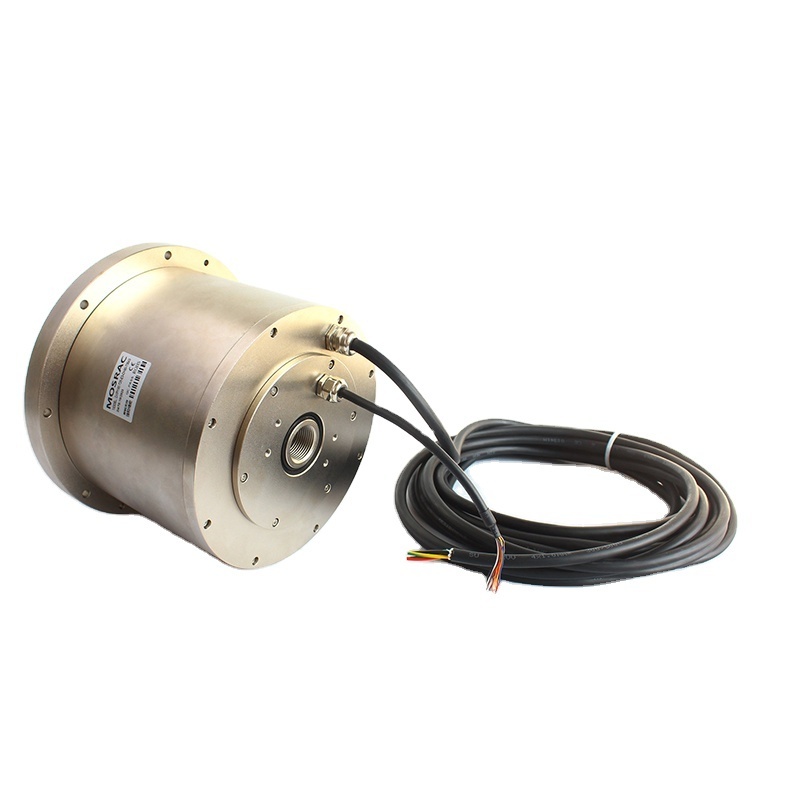

Customized Enclosed 220V high torque direct drive motor for automatic electric machine
MOSRAC-DM series direct drive motors are low-speed, high-torque, high-positioning accuracy, high-resolution, and high-rigidity direct drive motors for use in machinery in various industries, especially in semiconductor manufacturing equipment, electrode manufacturing equipment, and liquid crystal manufacturing equipment.
FEATURES AT A GLANCE:
1. High positioning accuracy
1.1 Absolute accuracy ±10arc se
1.2 Repeatability ±0.5arc sec
2. High resolution
2.1 Encoder resolution: 67,108, 864pulses/rev
3. High Rigidity
3.1 High rigidity and hardness in combination with loads to withstand load fluctuations.
4. Maintenance free
4.1 Easy to install, frictionless, no lubrication, maintenance-free.
PRODUCT SPECIFICATIONS:
| Model No. | DMFE140-T18-EC30 | DMFE140-T18-EC30 | DMFE140-T40-EC30 |
| Voltage | 220 | 220 | 220 |
| Rated Output*1 (W) | 113.04 | 339.12 | 754.56 |
| Rated torque*1 (Nm) | 6 | 18 | 40 |
| Instant Max Torque*1 (Nm) | 16 | 50 | 110 |
| Rated Current*1 (Arms) | 2.5 | 5 | 5 |
| Instant Max Current*1 (Arms) | 8 | 15 | 15 |
| Rated Speed (Rpm) | 3 | 3 | 3 |
| Max Speed*1 (Rpm) | 5 | 5 | 5 |
| Torque Parameter (Nm/Arms) | 2.4 | 3.6 | 8 |
| Rotor inertia 10-4kg.m² | 45 | 75 | 112 |
| Back EMF coefficient (V/K rpm) | 220 | 360 | 550 |
| Resistance (Ω) | 4.5 | 4.5 | 6.6 |
| Inductance (mH) | 6 | 6 | 9.2 |
| Pole-pairs number (2P) | 13 | 13 | 13 |
| Encoder resolution (sin/cos) | 8192 | 8192 | 8192 |
| Absolute accuracy(arc_sec) | ±25 | ±25 | ±25 |
| Repeat positioning accuracy (arc_sec) | ±1.5 | ±1.5 | ±1.5 |
| Positive | 2000 | 2000 | 2000 |
| Reverse | 1000 | 1000 | 1000 |
| Radial load (N.m) | 30 | 30 | 30 |
| Pulses number of origin | 1 | 1 | 1 |
| Mechanical accuracy of mounting surface (um) | ≤10 | ≤10 | ≤10 |
| Weight (kg) | 3.4 | 5.6 | 7.4 |
| Height (mm) | 50 | 80 | 120 |
Drawing:
