Quick Details
-
Voltage:
-
220V-480V
-
Dimension(L*W*H):
-
5600*1850*860mm
-
Weight:
-
750 KG
-
Marketing Type:
-
New Product 2022
-
Application range:
-
Iron,Gold, Tin, Tungsten, Chrome, Manganese, Copper,Rare Earth, etc
-
Material:
-
Fiberglass reinforced plastic
-
Deck types:
-
Coarse ore, fine sand, and slime ore deck for option
-
Motor required:
-
1.1kw for Lead Ore Processing Plant
-
Beneficiation area:
-
7.67/4.08/2/0.51sq.m
-
Model availabe:
-
LS4500,LY3000,LY2100,LY1100
-
Ore samples testing:
-
Available
-
Installation:
-
Supply set up video, dispatch engineer if need
-
CAD layout drawing:
-
Supply
Quick Details
-
Production Capacity:
-
0-2t/h
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Jinshibao
-
Voltage:
-
220V-480V
-
Dimension(L*W*H):
-
5600*1850*860mm
-
Weight:
-
750 KG
-
Marketing Type:
-
New Product 2022
-
Application range:
-
Iron,Gold, Tin, Tungsten, Chrome, Manganese, Copper,Rare Earth, etc
-
Material:
-
Fiberglass reinforced plastic
-
Deck types:
-
Coarse ore, fine sand, and slime ore deck for option
-
Motor required:
-
1.1kw for Lead Ore Processing Plant
-
Beneficiation area:
-
7.67/4.08/2/0.51sq.m
-
Model availabe:
-
LS4500,LY3000,LY2100,LY1100
-
Ore samples testing:
-
Available
-
Installation:
-
Supply set up video, dispatch engineer if need
-
CAD layout drawing:
-
Supply

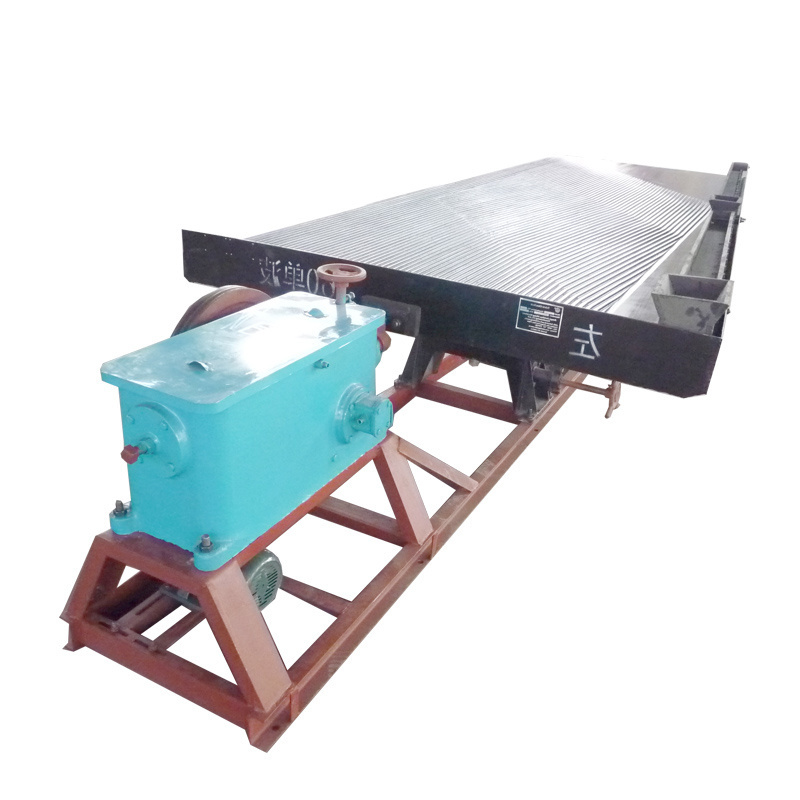

6s Vibration Shaking Table Lead Ore Processing Plant
| > PRODUCT INTRODUCTION of Lead Ore Processing Plant |
Jinshibao Lead Ore Processing Plant is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.
The
Lead Ore Processing Plant
is also widely used in separation for
Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum
, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.
|
> PRODUCT
STRUCTURE
of Lead Ore Processing Plant
|
The following drawing shows the structure of the Lead Ore Processing Plant :
| > MAIN COMPONENT of Lead Ore Processing Plant |
1. Deck
Lead Ore Processing Plant
The decks of
Lead Ore Processing Plant
are constructed of steel framework and covered 16mm fiberglass with corundum, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant, corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.
Our jinshibao Lead Ore Processing Plant have THREE different deck designs available:
(1) The course ore deck is designed for recovering particles size from 0.5 mm to 2 mm ;
(2) The fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm ;
(3) The slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm .
2. Head Motion Lead Ore Processing Plant
6-S
Lead Ore Processing Plant
are furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum.
3. Support device
Lead Ore Processing Plant
We mainly have three supporting device types for the
Lead Ore Processing Plant
:
- #28 channel steel type support Lead Ore Processing Plant
-
#10 channel steel type support
Lead Ore Processing Plant
-
#8 channel steel type support
Lead Ore Processing Plant
You could also build the cement support foundation if you do not need to move the Lead Ore Processing Plant.
|
>
TECHNICAL SPECS
of Lead Ore Processing Plant
|
Below are the main specifications of the Lead Ore Processing Plant
| Model | LS4500 | LY3000 | LY2100 | LY1100 | |
| Screen Size(mm) | 4500× 1850× 1560 | 3000× 1620× 1100 | 2100× 1050× 850 | 1100× 500× 430 | |
| Feeding Range(mm) | Sand ore | -2 | -2 | -2 | -2 |
| slime | -0.074 | -0.1 | -0.074 | -0.074 | |
| Capacity (t/h) | Sand ore | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 |
| slime | 0.5-0.8 | 0.4-1 | 0.3-0.5 | 0.05-0.1 | |
| Motor power | kw | 1.1 | 1.1 | 1.1 | 0.55 |
| Dimension (mm) | 5600× 1850× 860 | 4075× 1320× 780 | 3040× 1050× 1020 | 1530× 500× 800 | |
| > WEARING PARTS of Lead Ore Processing Plant |
|
>
CUSTOMERS' SPOTS
of Lead Ore Processing Plant
|
Our Lead Ore Processing Plants are widely applied on different mining sites home and abroard.
• LCL: If the Lead Ore Processing Plant is shipped by bulk, it is always packed in steel frame.
When the quantity is one set, the Lead Ore Processing Plant is installed up and packed in steel frame inside and plywood outside.
When the quantity is more than 1 set, the Lead Ore Processing Plants are not installed up and packed in steel frames separately.
• FCL: If the Lead Ore Processing Plant is shipped in container, it will be loaded in the container as belows without installation.
The purpose why do not install up them is to save the volume. The volume of one set of installed up LS4500 Lead Ore Processing Plant is about 10 cubic meters.
|
>
TRANSACTION TERMS
of Lead Ore Processing Plant
|
Payment terms
- We usually accept T/T, L/C. WEST UNION etc
- 30% of total amount as deposit, 70% balance payment before delivery.
- We will notice you before the arrival of the goods.
Packing ways
- FCL & LCL export standard container 20/40 feet loading
- FCL: Sea-worthy package. Machines are fixed in container; spare parts are packed in wooden boxes.
- LCL: Machines are packed in steel frame with plywood boxes. Customized package is available.
Jiangxi Jinshibao Mining Machinery Manufacturing Co., Ltd has specialized in the mining equipment manufacturing for 25 years.
Shaking Table is one of our flagship products. The place we locate, Shicheng County, is the home of Shaking Table in China. Based on this, we grow up stronger and stronger.
25 Year-experienced skill ensure our product a stable structure and better performance. Among so many products from us, Shaking Table is the most popular one and enjoy a really good reputation and feedback from our customers from all over the world.
