Quick Details
-
Weight (KG):
-
400
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Qixing
-
Product name:
-

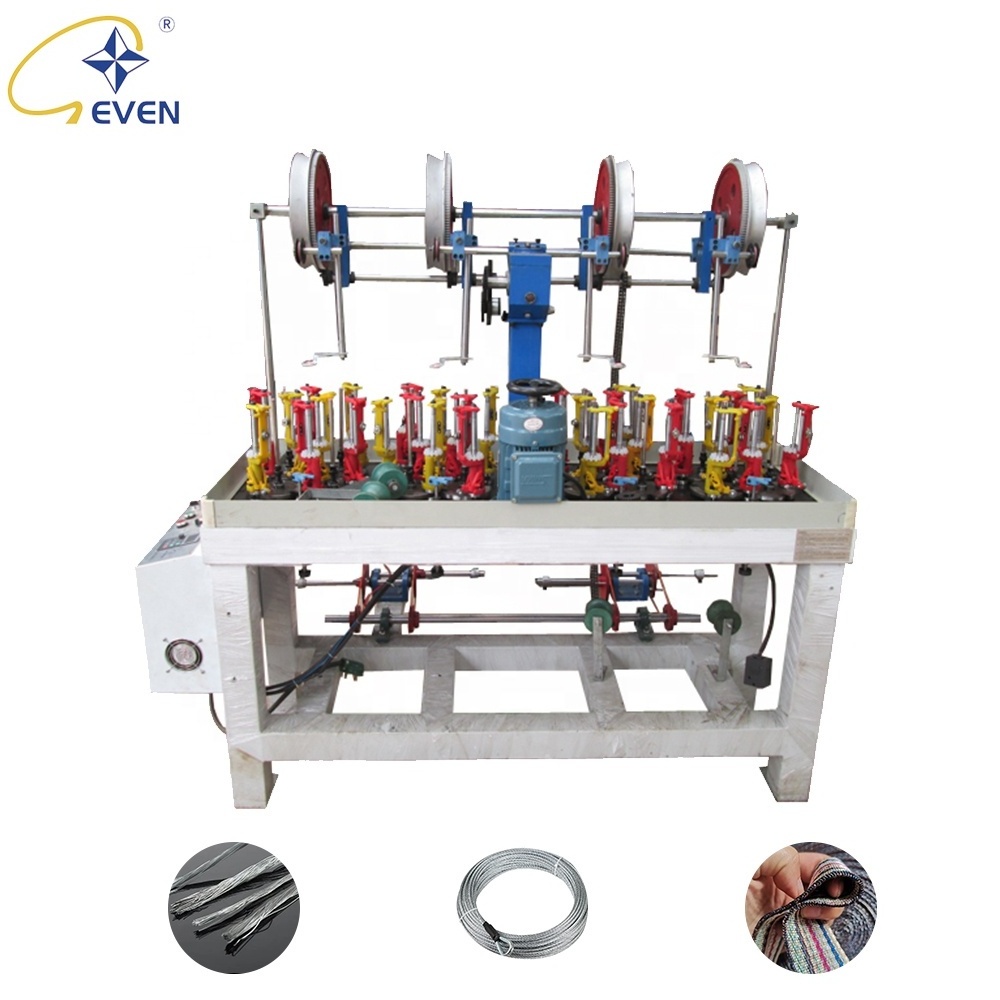

130 Series High Speed Braiding Machine
-
Bobbin number:
-
64
-
Head number:
-
4
-
Spindle number:
-
32
-
Bobbin size:
-
D:47*142mm
-
Max Speed of Impeller:
-
230 rpm
-
Motor Power:
-
0.75KW*1,380V 3PH
-
Machine Weight:
-
400
-
Impeller Size:
-
130mm
-
Size:
-
1700*550*1550mm(for reference)
Quick Details
-
Machine Type:
-
Braiding Machine
-
Product:
-
Lace Chenille Fishing Net Shoelace
-
Material Capabilities:
-
Thread FIBER Yarn
-
Weight (KG):
-
400
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Qixing
-
Product name:
-
130 Series High Speed Braiding Machine
-
Bobbin number:
-
64
-
Head number:
-
4
-
Spindle number:
-
32
-
Bobbin size:
-
D:47*142mm
-
Max Speed of Impeller:
-
230 rpm
-
Motor Power:
-
0.75KW*1,380V 3PH
-
Machine Weight:
-
400
-
Impeller Size:
-
130mm
-
Size:
-
1700*550*1550mm(for reference)
Product Paramenters
|
Braiding Machine Spindle
|
|
|
|
Name
|
spindle and bobbin
|
|
|
Bobbin Size
|
Diameter: 65mm; Height: 200mm and customized.
|
|
|
Brand Name
|
Qixing
|
|
|
Place Of Origin
|
Jiangsu, China
|
|
|
Features
|
Big bobbin size: It can make the machine work longer and it is more convenient to replace the bobbin. The key parts are specially treated, which is more durable, wear-resistant and corrosion-resistant.
|
|
|
Braiding Machine Spindle Base And Horngear
|
|
|
|
Name
|
Spindle Base and Horngear
|
|
|
Brand Name
|
Qixing
|
|
|
Place Of Origin
|
Jiangsu, China
|
|
|
Features
|
Using the most advanced manufacturing technology, improve work efficiency. More wear-resistant, durable and corrosion-resistant
|
|
|
Braiding Machine Control Box
|
|
|
|
Name
|
Button control panel & touch screen control panel
|
|
|
Brand Name
|
Qixing
|
|
|
Place Of Origin
|
Jiangsu, China
|
|
|
Voltage
|
110V, 220V, 380V, 440V, Single phase, 3 phsases, customized.
|
|
|
Features
|
We adopt Holip Inverter to Control Speed. Easier to operate and more complete functions.
|
|
|
Traction System
|
|
|
|
Name
|
Traction roller
|
|
|
Brand Name
|
Qixing
|
|
|
Place Of Origin
|
Jiangsu, China
|
|
|
Style
|
Diagonal roller, Flat roller, Connection roller, Rope wheel (groove wheel), Track.
|
|
|
Features
|
According to the different products produced, you need to use different traction rollers, only need you to provide the products
you need to compile, and our technicians will give you the best choice advice |
|
|
Semi-enclosed And Fully Enclosed Braiding Machine
|
|
|
|
Brand Name
|
Qixing
|
|
|
Place of Origin
|
Jiangsu, China.
|
|
|
Material
|
Aluminium, Organic Glass, Metal Type
.
|
|
|
Function
|
Dustproof, noise reduction.
|
|
|
Application Industry
|
Heart stent.
|
|
|
Features
|
It can effectively reduce noise and dust, and can be used to make precision products, such as heart stents.
|
|
