Quick Details
-
Sub screen:
-
LCD, 15.6 inches
-
MicroSD(TF):
-
Max Support to 64G
-
WIFI:
-
2.4G,Support 802.11b/g/n
-
Blue tooth:
-
BT 4.0 Support 2.1/3.0/4.0
-
Horn:
-
2W
-
Size:
-
39cm*34cm*26cm
-
Power Adapter:
-
Input AC100-240V/1.7A Output DC 12V4A
-
Face Detection:
-
5 Megapixel Camera
-
External Interface:
-
USB TypeA*3,RJ45 LAN*1 AUX*1,DC*1
-
Operation System:
-
Android 6.0
-
Hard Disk Capacity:
-
2GB RAM,8GB ROM
Quick Details
-
CPU:
-
Cortex-A17 1.8GHz
-
Place of Origin:
-
Guangdong, China
-
Main Screen:
-
LCD, 15.6 inches IPS 1366*768
-
Sub screen:
-
LCD, 15.6 inches
-
MicroSD(TF):
-
Max Support to 64G
-
WIFI:
-
2.4G,Support 802.11b/g/n
-
Blue tooth:
-
BT 4.0 Support 2.1/3.0/4.0
-
Horn:
-
2W
-
Size:
-
39cm*34cm*26cm
-
Power Adapter:
-
Input AC100-240V/1.7A Output DC 12V4A
-
Face Detection:
-
5 Megapixel Camera
-
External Interface:
-
USB TypeA*3,RJ45 LAN*1 AUX*1,DC*1
-
Operation System:
-
Android 6.0
-
Hard Disk Capacity:
-
2GB RAM,8GB ROM
Products Description
|

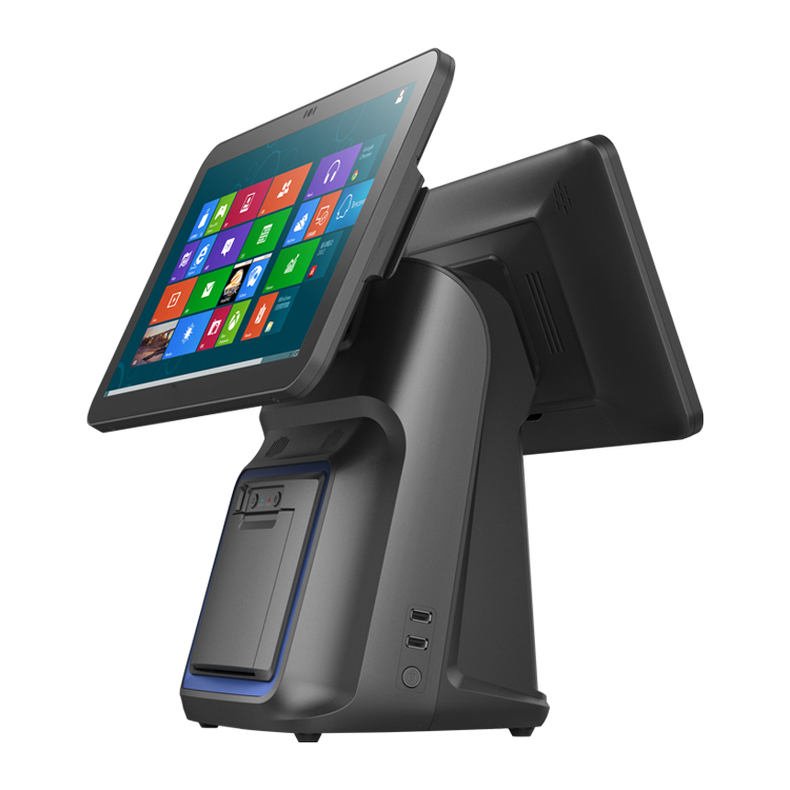

G1 Series
|
|
|
||
|
Windows OS
|
Part No.
|
G1-W156*-***
|
||
|
|
Processors
|
Intel J1900 Quad Core 2.0Ghz (i3/i5/i7 Optional)
|
||
|
|
Memory
|
4GB RAM （8GB Optional）
|
||
|
|
Storage
|
64GBMSATA SSD (128GB/256GB/512GB Optional)
|
||
|
|
Operating Systems
|
Win7 / 8 / 10
|
||
|
Android OS
|
Part NO.
|
G1-A156*-***
|
||
|
|
Processors
|
RK3288 Quad Core 1.8Ghz(RK3399 Optional)
|
||
|
|
Memory
|
2GB RAM （4GB Optional）
|
||
|
|
Storage
|
16GB EMMC (32GB Optional)
|
||
|
|
Operating Systems
|
Androld 7.1 ,Support Google Play(8.0/9.0 need to confirm with the Sales)
|
||
|
Display
|
Main screen
|
15.6 inch LCD Screen,
Resolution: 1366*768 (1920*1080 Optional) |
||
|
|
Customer display
|
None/ LED 8 digltal / VFD 2*20 /10.1inch LCD scree /13.3 inch LCD screen / 15.6 inch LCD screen （Optional）
|
||
|
|
|
|
||
|
|
Brightness
|
220cd/m2
|
||
|
|
Touch Screen
|
True flat capacitive touch screen. Muti-touch
|
||
|
I/O
|
Serial Port(Com port)
|
1x COM (2 opional)
|
||
|
|
Display
|
1x VGA (Windows only)
|
||
|
|
USB
|
6x Type-A USB2.0(Side 2，Bottom 4)
|
||
|
|
LAN
|
1x Ethemet RJ45
|
||
|
|
Audio
|
1x Line out
|
||
|
|
HDMI
|
1x HDMI (Optional)
|
||
|
|
Power Supply
|
Adaptor 12V/5A
|
||
|
Physical
|
Dimension(LxWxH)
|
Single Screen：390*420*210mm
Dual Screen：90*420*260mm |
||
|
|
Package Slze(LxWxH)
|
Single Screen：480*280*530mm
Dual Screen：490*340*530mm |
||
|
|
Net Weight
|
Single Screen：5.3KG Dual Screen：6.5KG
|
||
|
|
Gross Weight
|
Single Screen：6.8KG Dual Screen：7.8KG
|
||
|
Built-in Optional Function
|
WIFI
|
2.4G; 802.11a/b/g/n (Android default，Windows Optional)
|
||
|
|
Bluetooth
|
Bluetooth 4.0 (Android default，Windows Optional)
|
||
|
|
Speaker
|
1x 3W stereo speaker（2x 3W Optional)
|
||
|
|
4G Module
|
Mini-PCIE Module (Optional)
|
||
|
|
Built-in Scanner
|
1D/2D barcode and QR scanner ( Optional)
|
||
|
|
Built-in Printer
|
58mm / 80mm Receipt Printer ( Optional)
|
||
|
|
Built-in Card Reader
|
Magnetic Stripe card reader /IC/ID/RFID ( Optional)
|
||
|
|
Built-in Camera
|
1M pixels / 2M pixels / 5M pixel /Binocular camera( Optional)
|
||
|
Other
|
Cerifcation
|
CE,FCC,RoHS
|
||
|
|
Housing
|
ABS Frame+Metal Stand
|
||
|
|
Color
|
Black or White
|
||
|
Optional
Peripherals
|
Printer
|
58mm / 80mm Receipt Printer;Label Printer
|
||
|
|
Scanner
|
1D/2D barcode and QR scanner
|
||
|
|
Card Reader
|
Magnetic Stripe card reader /IC/ID/RFID
|
||
|
|
Cash drawer
|
12V Cash Drawer
|
||
|
The above parameters are for reference only, update according to market trend
|
|
|
||
