Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JT
-
Voltage:
-
380V/220V/440V, 380V/220V/440V
-
Dimension(L*W*H):
-
2500X800X1700MM
-
Weight:
-
400 KG
-
Product name:
-
PP PE PVC single wall corrugated pipe making machine
-
Keywords:
-
corrugated pipe making machine
-
Material Processed:
-
PE PP PVC
-
Motor power:
-
11KW/15hp
-
capacity:
-
30-200kg/h
-
Product:
-
PP PE PVC single wall corrugated pipe making machine pipe machine
-
Production speed:
-
8-12M/Min
-
Screw diameter:
-
50MM
-
Certification:
-
CE
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
28:1
-
Screw Speed (rpm):
-
2200 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JT
-
Voltage:
-
380V/220V/440V, 380V/220V/440V
-
Dimension(L*W*H):
-
2500X800X1700MM
-
Weight:
-
400 KG
-
Product name:
-
PP PE PVC single wall corrugated pipe making machine
-
Keywords:
-
corrugated pipe making machine
-
Material Processed:
-
PE PP PVC
-
Motor power:
-
11KW/15hp
-
capacity:
-
30-200kg/h
-
Product:
-
PP PE PVC single wall corrugated pipe making machine pipe machine
-
Production speed:
-
8-12M/Min
-
Screw diameter:
-
50MM
-
Certification:
-
CE
Product Desription
Let us contribute to environmental protection to a force!
⇒PP PE PVC single wall corrugated pipe making machine
It is mainly composed of the extruder, extruder die-head , corrugated pipe forming machine , forming machine chain mould , and winding machine can be added if customers need.

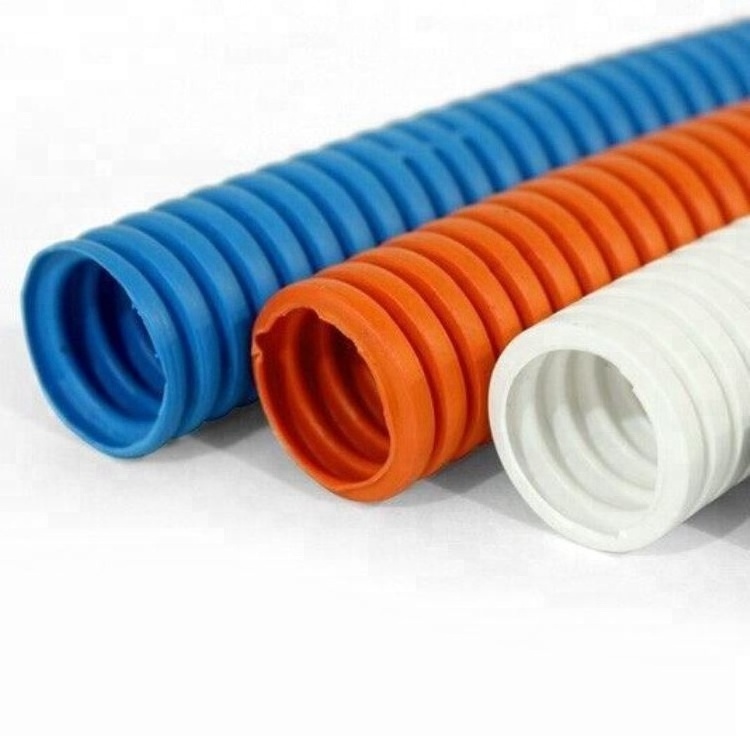

Use: single wall flexible corrugated pipe machine has features of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.
Features: They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.
| Pipe diameter | 8-32mm | 16-75mm |
| Main Extruder model | SJ50 | SJ65 |
| Main Extruder L/D | 25:1/28:1/30:1 | 25:1/28:1/30:1 |
| Capacity | 30-50kg/h | 60-80kg/h |
| Main Motor | 11KW/15KW | 18.5KW/22KW |
| Cooling type | Air fans cooling | Air fans cooling |
| Forming mould quantity | 50 paris | 60 pairs |
| Production Speed | 8-12m/min | 8-15m/min |
| Forming machine motor | 1.5kw | 1.5kw |
