Quick Details
-
Place of Origin:
-
Guangdong, China
-
Structure:
-
Double Ball Raceway Structure
-
Mounting Way:
-
Top Plate, Threaded stem,Scaffolding ect.
-
Wheel Material:
-
Polypropylene PP
-
Wheel Diameter:
-
65/75/89/100/125/150 mm
-
Tread Width:
-
32mm
-
Overall Height:
-
91/108/119/132/157/186 mm
-
Capacity(kg):
-
Up to 200kgs
-
Certificate:
-
NSF; ISO9001:2008
-
Brand Name:
-
Sistom
-
Country of Origin:
-
China
Quick Details
-
Material:
-
Iron, Polyolefin, Polypropylene, Steel
-
Type:
-
Plate Casters, Stem Casters, Bolt-Hole Casters, trolley caster
-
Model Number:
-
22-40201002-11180
-
Place of Origin:
-
Guangdong, China
-
Structure:
-
Double Ball Raceway Structure
-
Mounting Way:
-
Top Plate, Threaded stem,Scaffolding ect.
-
Wheel Material:
-
Polypropylene PP
-
Wheel Diameter:
-
65/75/89/100/125/150 mm
-
Tread Width:
-
32mm
-
Overall Height:
-
91/108/119/132/157/186 mm
-
Capacity(kg):
-
Up to 200kgs
-
Certificate:
-
NSF; ISO9001:2008
-
Brand Name:
-
Sistom
-
Country of Origin:
-
China

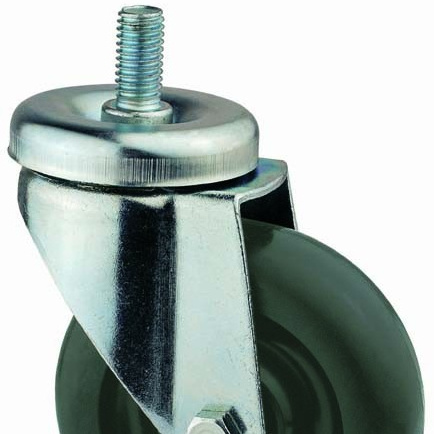

22 Series Double Ball Raceway Structure Top Plate Threaded Stem Swivel with brake Black PP Caster scaffolding castor wheel
Standard fearures:
1. Zinc plated finish is attractive and drable
2. 3/8" solid axle with lock nut
3. 3mm thickness fork and 4mm thickness top plate
4. 2-1/2"x3-5/8" standard Swivel top plate
5.Swivel Dust Cap
Fork Options:
1.Hardened. Full double ball hardened raceways for better performance and greater durability.
2.Hollow Axle. Grease holes for greater convenience.
3.Nylon lock nut.
4.Swivel Dust Cap.
5.Top Plate 21-#2 2-3/4" X 3-3/4".
6.Top Plate 21-#3 3-1/8" X 4-1/8".
Wheel Options:
Thread Guards. Available on many models.
Packing:
Standard export wooden cases or cartons
Brake Options
1.Total Lock Brake
Locks wheel and swivel simultaneously.
Fits 3'',3 1/2'',4'', and 5'' swivel models.(Specify TTL)
2.Side Brake
Locks wheel only
Fits 3'',3 1/2'',4'', and 5'' swivel models. Field installable
3.Top Lock Brake
Locks wheel only
Fits 3'',3 1/2'',4'', and 5'' swivel models. Field installable
4.Nylon Top Lock Brake
Locks wheel only
Fits 3'',3 1/2'',4'', and 5'' swivel models. Field installable
