Quick Details
-
Model Number:
-
HK-PG-F2R26
-
Place of Origin:
-
Guangdong, China
-
Backplane bandwidth:
-
24g
-
MAC address table:
-
4K
-
Class V line:
-
100M
-
Multimode fiber:
-
550m
-
Single mode fiber:
-
20/40/80/120 km
-
Poe ports:
-
24
-
single port MAXIMUM POWER:
-
30W
-
Power supply line pair:
-
1/2 (+), 3/6 (-)
-
Total power:
-
300W
-
Operating temperature:
-
-10~+55 ℃
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
OEM ODM
-
Model Number:
-
HK-PG-F2R26
-
Place of Origin:
-
Guangdong, China
-
Backplane bandwidth:
-
24g
-
MAC address table:
-
4K
-
Class V line:
-
100M
-
Multimode fiber:
-
550m
-
Single mode fiber:
-
20/40/80/120 km
-
Poe ports:
-
24
-
single port MAXIMUM POWER:
-
30W
-
Power supply line pair:
-
1/2 (+), 3/6 (-)
-
Total power:
-
300W
-
Operating temperature:
-
-10~+55 ℃

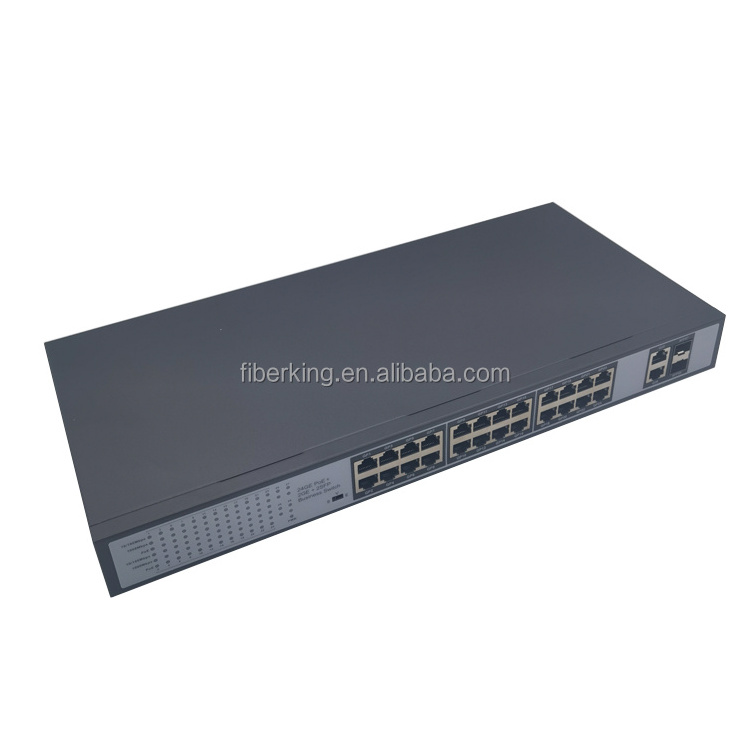

Gigabit uplink 2SFP 26PoE switch
HK-PG-F2R26 24 1000M Poe ports, 2 Gigabit ports +2 SFP optical ports (Combo optical multiplexing). It is an economical small switch, which is widely used in small networks and monitoring systems such as homes and enterprises.
HK-PG-F2R26 Gigabit uplink Poe switch supports ieee8023af and ieee8032at Poe standard can provide up to 30 watts of power to Poe webcam, wireless AP, Internet phone and other point receiving devices through one network cable, especially suitable for occasions where power wiring is inconvenient.
The unique dial switch design of HK-PG-F2R26 Gigabit uplink Poe switch provides one key isolation (VLAN) mode, and ports 1~16 are isolated from each other to prevent DHCP spoofing and suppress broadcast storms, and improve network security.
Characteristic：
1.International famous brand chips are adopted, with stable and reliable performance
2.Provide 16 10/100base-t Poe ports and 2 10/100/1000base-t electrical ports +1 Gigabit SFP optical port uplink
3.Support ieee8023af/at Poe Ethernet power supply standard, single port maximum output power 30W
4.16g backplane bandwidth, high-speed and smooth data exchange
5.Support one click VLAN and ultra long distance transmission, and adapt to different application scenarios
6.Built in power supply design, stable and reliable, providing maximum power of 250W
7.Lightning protection and surge protection, short circuit protection, overvoltage and undervoltage protection, safe and reliable
8.Compact appearance, plug and play, simple maintenance
Products Description
Product Paramenters
|
port
|
24 10/100base-t Poe ports
Two 10/100/1000base-t uplink 2 SFP optical ports uplink (Combo optical multiplexing) |
|
Switching performance
|
Backplane bandwidth: 24g
MAC address table: 4K Support store and forward |
|
Standard protocol
|
IEEE802. 3, IEEE802. 3i 10Base-T, IEEE802. 3u 100Base-T, IEEE 802.3ab 1000BASE-T,
IEEE 802.3z 1000BASE-X,IEEE802. 3x Flow Control, IEEE802. 1q VLAN, IEEE802. 3af PoE, IEEE802. 3at PoE+ |
|
Transmission medium and distance
|
Class V line: 100M;
Multimode fiber: 550m; Single mode fiber: 20/40/80/120 km |
|
Poe
|
Poe ports: 24
DC48V, single port MAXIMUM POWER 30W Power supply line pair: 1/2 (+), 3/6 (-) |
|
Power Supply
|
Ac100~240v 50/60hz input; Or dc48v~57v input
Total power 300W |
|
indicator light
|
Power indicator, VLAN mode indicator, Poe indicator, electric port link connection indicator,
Electric port 1000m rate indicator, optical port link connection indicator |
|
Use environment
|
Operating temperature: -10~+55 ℃
Storage temperature: -40~+70 ℃ Operating humidity: 10~90% non condensing Storage humidity: 5~90% non condensing |
|
physical characteristics
|
Dimension (W x D x H): 440x180x44mm
Weight: 3250g |
