Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINMORE
-
Model Number:
-
KM-38F520-158-0651.2
-
Torque:
-
on load 5kg.cm
-
Certification:
-
RoHS
-
Gearbox:
-
Width 38mm, length 64.4mm
-
Shaft diameter:
-
6.0mm
-
Rated Voltage:
-
12 V DC
-
Operating Temperture:
-
-10℃ ~ +60℃
-
Way of commutation:
-
brushes
-
shaft position:
-
Parallel
-
Rotation:
-
CW/CCW
-
Weight:
-
178g
-
DC Motor type:
-
Iron core permanent magnet motor
Quick Details
-
Speed(RPM):
-
No load 52rpm
-
Continuous Current(A):
-
on load 0.813A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINMORE
-
Model Number:
-
KM-38F520-158-0651.2
-
Torque:
-
on load 5kg.cm
-
Certification:
-
RoHS
-
Gearbox:
-
Width 38mm, length 64.4mm
-
Shaft diameter:
-
6.0mm
-
Rated Voltage:
-
12 V DC
-
Operating Temperture:
-
-10℃ ~ +60℃
-
Way of commutation:
-
brushes
-
shaft position:
-
Parallel
-
Rotation:
-
CW/CCW
-
Weight:
-
178g
-
DC Motor type:
-
Iron core permanent magnet motor

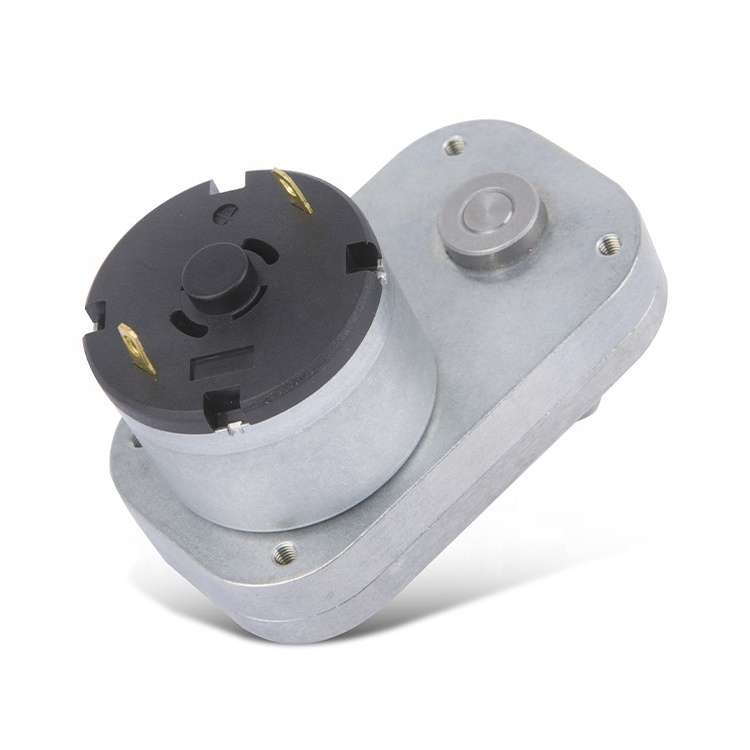

Micro high quality dc electric wheelbarrow motor kit , Model No. KM-38F520 , Low Voltage Direct-current Gear Motor, and gearbox max diameter 38mm,DC motor Max diameter 33mm, and shaft position Parallel
More than 20 years' motor design and production experience
90 million-piece annual capacity
Auto motors are almost entirely produced on automated lines
Facilities certified to IAFT16949:2016,ISO 9001:2008 and ISO 14001:2004
Advanced equipment from Sodick, Hexagon,Mitutoyo, Magtrol and Votsch
10% sales revenue invested in R&D and automatic equipment every year
Customer PPM: auto motors s 30;general motors s 3,000
| Ratio | Model No. | Voltage | No load | On load | ||||
| Operating Range | Norminal Voltage | Current | Speed | Current | Torque | Speed | ||
| V | V | A | r/min | A | kg.cm | r/min | ||
| 1/105 | KM-38F520-105-1252 | 6.0-12.0 | 12 | 0.05 | 52 | 0.2 | 3 | 45 |
| 1/155.5 | KM-38F520-155.5-1273 | 6.0-12.0 | 12 | 0.16 | 73 | 0.75 | 6 | 60.6 |
| 1/223 | KM-38F520-223-1231 | 6.0-12.0 | 12 | 0.06 | 32 | 0.4 | 8 | 24 |
| 1/446 | KM-38F520-446-1212 | 6.0-12.0 | 12 | 0.05 | 12.3 | 0.23 | 10 | 10.5 |
