Quick Details
-
Brand Name:
-
TIBOX
-
Model Number:
-
ST5 515
-
External Size:
-
500W*500H*150Dmm
-
Color:
-
RAL 7032 & RAL 7035
-
Material:
-
Cold Rolled Steel
-
Thickness of sheet steel:
-
1.2mm & 1.5 mm & 2.0 mm
-
Protection degree:
-
IP66
-
Against mechanical impacts:
-
IK10
-
Size:
-
optional
-
Certification:
-
CE,IEC,ROHS,TUV,SGS
-
Lock:
-
available on request
-
Accessories:
-
wall mount brackets to be offered seperately
Quick Details
-
Protection Level:
-
IP66
-
Type:
-
Control Box
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIBOX
-
Model Number:
-
ST5 515
-
External Size:
-
500W*500H*150Dmm
-
Color:
-
RAL 7032 & RAL 7035
-
Material:
-
Cold Rolled Steel
-
Thickness of sheet steel:
-
1.2mm & 1.5 mm & 2.0 mm
-
Protection degree:
-
IP66
-
Against mechanical impacts:
-
IK10
-
Size:
-
optional
-
Certification:
-
CE,IEC,ROHS,TUV,SGS
-
Lock:
-
available on request
-
Accessories:
-
wall mount brackets to be offered seperately
Wall Mounting housings/ cabinets/panels (distribution boxes),
Metal Junction Connection Distribution Enclosure
P ower Supply Metal Enclosures
Industrial Steel Box
Metal Electric Switch Steel Box
Circuit breakers distribution boxes
Steel electrical distribution box
Description:
-Enclosure& door: sheet steel 1.2mm till size ST6-820 then 1.5mm
-Mounting plate: sheet steel 1.5mm till size ST6 820 then 2.0mm
Surface Finish
-Enclosure & door: thermosetting expoxy polyester powder coating in textured RAL 7032 & RAL7035
-Mounting plate: zinc coated
Protection degree
-IP65 NEMA 4 for single door boxes
Supply includes
-Mounting plate
-gland plate and sealing gasket
-locking system
-screws for earthing
-fixing material
Detailed Pictures
Parameters of Product
Special size of enclosure,special demands on request...

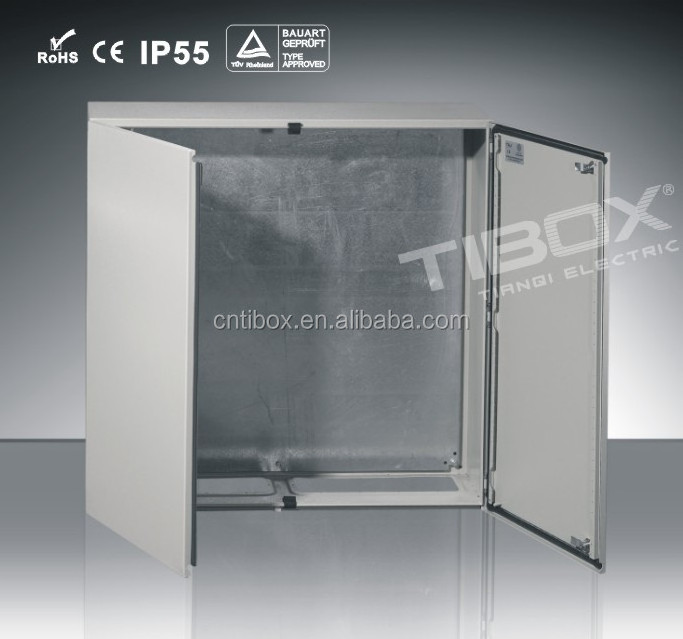

Double door(STD or STDD)
Plexiglass door(STP) / Inner door(STI) / Plexiglass door + Inner door (STIP)
Packaging Detail: control box packing sizes by carton decided by product sizes
Delivery Detail: within 30 days after the receipt of your deposit or negotiated
