- Product Details
- {{item.text}}
Quick Details
-
Productivity:
-
170M3/H
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Weight:
-
33000kg
-
Dimension(L*W*H):
-
12510*2500*3990mm
-
Max.speed:
-
Max.speed
-
Concrete pumping pressure:
-
8MPa
-
Theoretical pumping times:
-
25Time/min
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
CE/ISO9001
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
48m
-
Max. horizontal conveying distance:
-
43.5m
-
Productivity:
-
170M3/H
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Weight:
-
33000kg
-
Dimension(L*W*H):
-
12510*2500*3990mm
-
Max.speed:
-
Max.speed
-
Concrete pumping pressure:
-
8MPa
-
Theoretical pumping times:
-
25Time/min
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
CE/ISO9001
Products Description

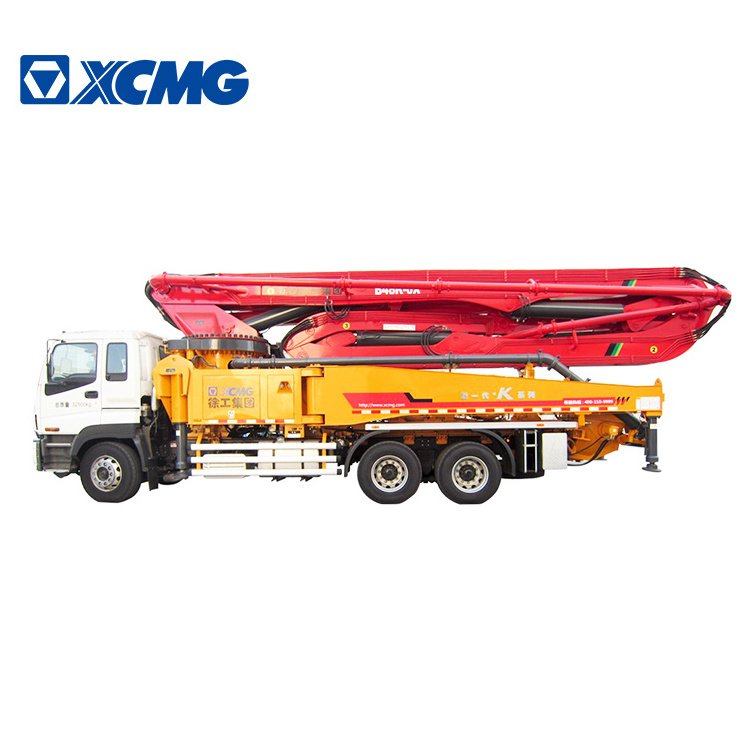

XCMG truck-mounted concrete pump HB48K 48m China truck mounted concrete pump for sale
1, XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
2, It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
* Large diameter (260 mm) Φ, large displacement (170 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
2, It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
* Large diameter (260 mm) Φ, large displacement (170 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Product Paramenters
|
Description
|
|
Unit
|
Parameter value
|
|
|
Outline dimension
|
|
mm
|
12510×2500×3990
|
|
|
Overall weight
|
|
kg
|
33000
|
|
|
Chassis
|
Model
|
|
ZZ5347V484MC1
|
|
|
|
Max. speed
|
km/h
|
90
|
|
|
|
Max. grade-ability
|
%
|
40
|
|
|
|
Wheelbase
|
mm
|
4800+1400
|
|
|
|
Tire
|
|
315/80R22.5
|
|
|
Engine
|
Model
|
|
MC11.40-30
|
|
|
|
Max. power
|
kW
|
297
|
|
|
|
Max. torque
|
N·m/(r/min)
|
1900/1000~1400
|
|
|
|
Displacement
|
L
|
10.518
|
|
|
|
Emission standard
|
|
Eruo III
|
|
|
Pumping system
|
Theoretical output
|
m³/h
|
170
|
|
|
|
Concrete pumping pressure
|
MPa
|
8
|
|
|
|
Theoretical pumping times
|
Time/min
|
23~26
|
|
|
|
Delivery cylinder diameter ×stroke
|
mm
|
φ260×2000
|
|
|
|
Max. diameter of pumping concrete
|
mm
|
≤40
|
|
|
|
Filling height
|
mm
|
1580
|
|
|
|
Concrete slump range
|
cm
|
8~23
|
|
|
Placing boom
|
Reach height
|
m
|
47.5
|
|
|
|
Reach depth
|
m
|
34
|
|
|
|
Slewingradius
|
m
|
43.5
|
|
|
|
Slewing angle
|
°
|
±270
|
|
|
|
Unfolding angle of the 1st section
|
°
|
90
|
|
|
|
Unfolding angle of the 2nd section
|
°
|
180
|
|
|
|
Unfolding angle of the 3rd section
|
°
|
180
|
|
|
|
Unfolding angle of the 4th section
|
°
|
240
|
|
|
|
Unfolding angle of the 5th section
|
°
|
210
|
|
|
|
Unfolding angle of the 6th section
|
°
|
120
|
|
|
Stabilizer span
|
Longitudinal span of stabilizer
|
mm
|
8955
|
|
|
|
Transverse span of front stabilizer
|
mm
|
7884
|
|
|
|
Transverse span of rear stabilizer
|
mm
|
9940
|
|
|
Others
|
Lubrication method
|
|
Automatic lubrication
|
|
|
|
Control method
|
|
Manual/remote control
|
|
|
|
Volume of water box
|
L
|
1300
|
|
