Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Ohmalloy/OEM
-
Model Number:
-
SP-ohmalloy124B
-
Product name:
-

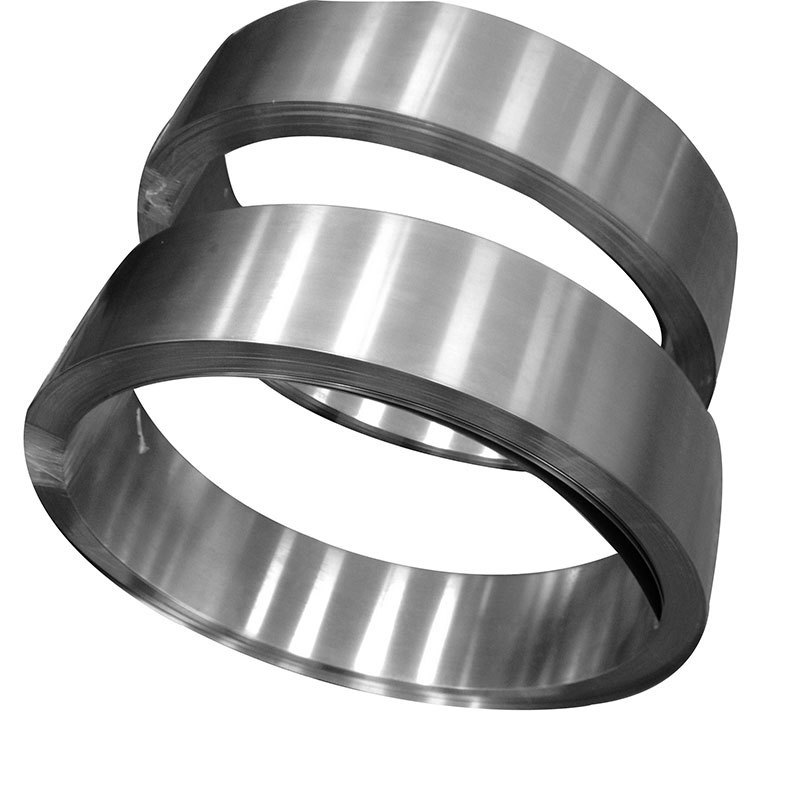

Alloy 0Cr25Al5 0Cr13Al4 Strip Heating Element
-
Color:
-
Gold
-
Material:
-
Fe-cr-al
-
Tensile Strength:
-
700 Mpa
-
Max Operating Temperature:
-
1250 ℃
-
Magnetic Properties:
-
Non-magnetic
Quick Details
-
Application:
-
Heating
-
Conductor Material:
-
FeCrAl alloy
-
Conductor Type:
-
Solid
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Ohmalloy/OEM
-
Model Number:
-
SP-ohmalloy124B
-
Product name:
-
Alloy 0Cr25Al5 0Cr13Al4 Strip Heating Element
-
Color:
-
Gold
-
Material:
-
Fe-cr-al
-
Tensile Strength:
-
700 Mpa
-
Max Operating Temperature:
-
1250 ℃
-
Magnetic Properties:
-
Non-magnetic
1) Normal Composition(%)
|
C |
P |
S |
Mn |
Si |
Cr |
Ni |
Al |
Fe |
Other |
|
Max |
|||||||||
|
0.06 |
0.025 |
0.025 |
0.70 |
Max 0.60 |
23.0~26.0 |
Max 0.60 |
4.5~6.5 |
Bal. |
- |
2)Typical Mechanical Properties(1.0mm)
|
Yield strength |
Tensile Strength |
Elongation |
|
Mpa |
Mpa |
% |
|
500 |
700 |
23 |
3)Typical Physical Properties
|
Density (g/cm3) |
7.10 |
|
Electrical resistivity at 20℃(Ωmm2/m) |
1.42 |
|
Conductivity coefficient at 20℃ (WmK) |
13 |
|
4)Coefficient of thermal expansion |
|
|
Temperature |
Coefficient of Thermal Expansion x10-6/℃ |
|
20 ℃- 1000℃ |
15 |
|
5)Specific heat capacity |
|
|
Temperature |
20℃ |
|
J/gK |
0.46 |
|
Melting point (℃) |
1500 |
|
Max continuous operating temperature in air (℃) |
1250 |
|
Magnetic properties |
non-magnetic |
6)Temperature Factor of Electrical Resistivity
|
20℃ |
100℃ |
200℃ |
300℃ |
400℃ |
500℃ |
700℃ |
800℃ |
900℃ |
1000℃ |
1100℃ |
1200℃ |
1300℃ |
|
1 |
1.002 |
1.005 |
1.008 |
1.013 |
1.021 |
1.038 |
1.040 |
1.042 |
1.044 |
1.046 |
1.047 |
7)Style of supply
|
Alloys Name |
Type |
Dimension |
|
|
OhmAlloy142BW |
Wire |
D=0.03mm~8mm |
|
|
OhmAlloy142BR |
Ribbon |
W=0.4~40 |
T=0.03~2.9mm |
|
OhmAlloy142BS |
Strip |
W=8~250mm |
T=0.1~3.0 |
|
OhmAlloy142BF |
Foil |
W=6~120mm |
T=0.003~0.1 |
|
OhmAlloy142BB |
Bar |
Dia=8~100mm |
L=50~1000 |
FeCrAl Alloy:
OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr253Al5,0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.
NiCr Alloy:
Cr20Ni80, Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.Karma
CuNi Alloy(Electric Resistance Alloy):
CuNi1,CuNi2,CuNi6,CuNi10,CuNi23,CuNi30,CuNi40,Constantan,Manganin
CuNi Alloy(Corrosion-Resisting Alloy)
C71500,C7100,C70600
Thermocouple alloy:
K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.
Inconel alloy:
Inconel 600, 601, 617 ,X-750, 625, 690, 718, 825.
Incoloy alloy:
Incoloy 800, 800H, 800HT, 825, 925
Hastelloy alloy:
HC-276, C-22, C-4, HB, B/2/3, X,N.
Monel Alloy:
Monel 400, K500.
Precision alloy series:
1J33,3J01,3J9,4J29,4J32.4J33, Invar36,4J45.FeNi50.
Thermal spray alloy:
Inconel 625, Ni95Al5, Monel400,45CT,HC-276,K500,Cr20Ni80.
Capillary Tube Series:
Kovar,Invar,FeNi42,copper,Stainless Steel, Pure Nickel, Mo, Ta, Nb.
