Quick Details
-
Brand Name:
-
CN Electric
-
Model Number:
-
CNGD-Z3033
-
Product Name:
-
Operable Movable Partition Walls
-
Material:
-
Aluminium Alloy Frame and MDF Board
-
Color:
-
Customized Colors
-
Position:
-
Large banquet hall, conference hall, villa etc
-
Size:
-
Can be customized
-
Trademark:
-
CN Electric
-
Surface Finishing:
-
Finished
-
Certification:
-
CB,CE,ISO14001
-
Specification:
-
65mm/85mm/100mm in thickness
Quick Details
-
Application:
-
Hotel, Apartment, Office Building, Hospital, School, Mall, Leisure Facilities
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CN Electric
-
Model Number:
-
CNGD-Z3033
-
Product Name:
-
Operable Movable Partition Walls
-
Material:
-
Aluminium Alloy Frame and MDF Board
-
Color:
-
Customized Colors
-
Position:
-
Large banquet hall, conference hall, villa etc
-
Size:
-
Can be customized
-
Trademark:
-
CN Electric
-
Surface Finishing:
-
Finished
-
Certification:
-
CB,CE,ISO14001
-
Specification:
-
65mm/85mm/100mm in thickness
Product Description

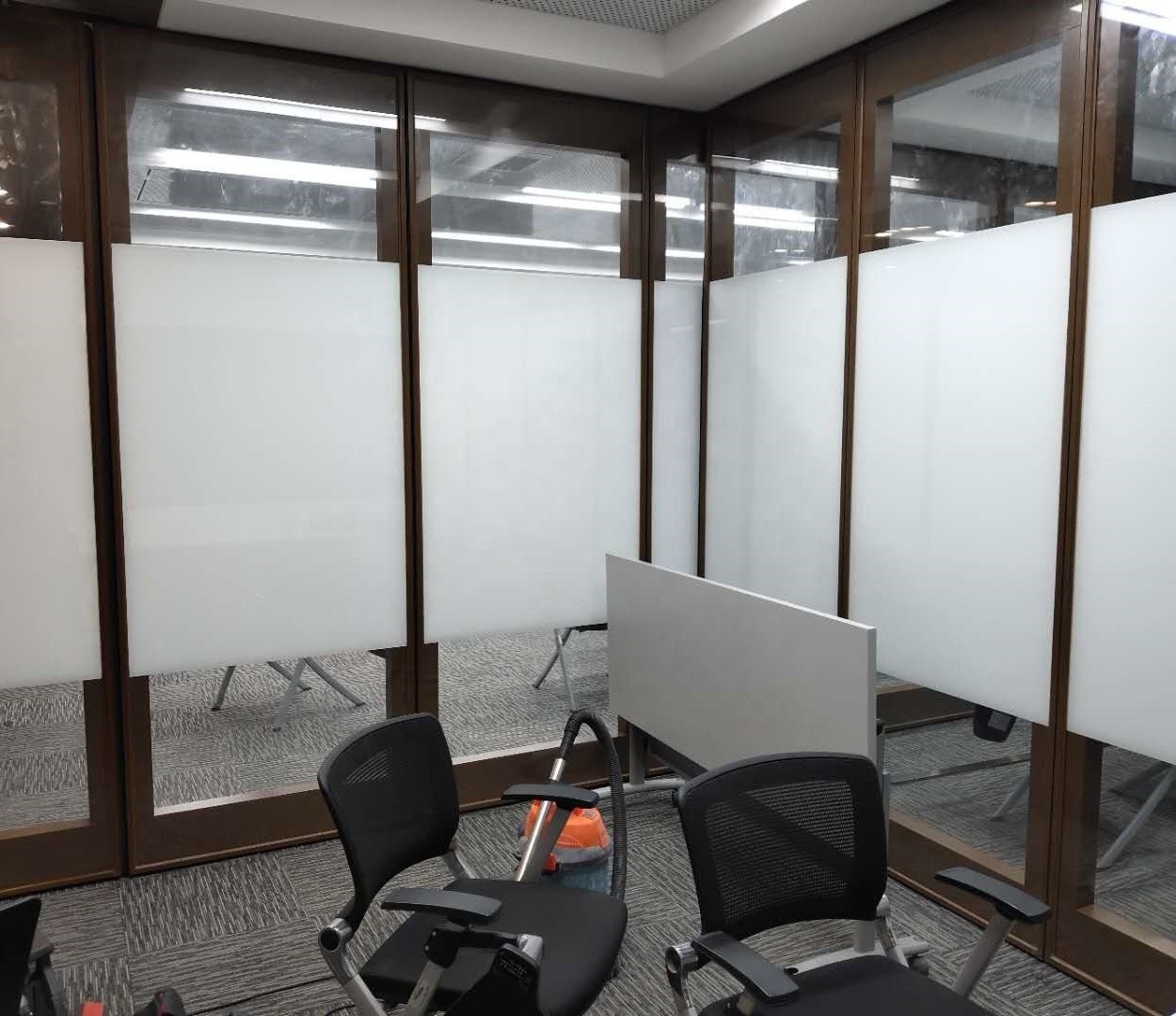

Low Cost Fittings Cubicle Partition Upper Panel Holder Glass Panel Wall System Operable Movable Partition Walls
CN Electric Automatic Partition
series products have been widely used in star hotel ballroom, multifunctional meeting rooms, restaurants, exhibition halls, pavilions, financial institutions, hospitals, factories, etc.It has a high degree of flexibility, stability and other characteristics, but also a highly ornamental decoration. It can be randomly combined and separated rooms, play a room multi-purpose, a hall multi-purpose effect.
Movable Partition Walls
is a movable wall with general wall functions that can divide large space into small space or connect small space into large space at any time according to needs. It can play a role of multiple functions in one hall or one room. The acoustic movable walls brings great convenience to people's work. For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.
Product introduction
.
1.
Door panel :
Diversified surface treatment, diverse material selection, easy to match with a variety of design styles, simple daily maintenance.
2.
Sound insulation :
Unique structural design, using specially formed rubber components, equipped with self-developed upper & lower braces and side braces, sound insulation can reach RW=53db.
3.
Fire prevention :
Through the [Fire resistance Test Method of Building Components Part 8] test, the fire integrity is greater than 90 minutes, fire resistance and heat insulation is greater than 90 minutes, in line with the safety fire standards.
4.
Anti-collision induction :
There are electric eyes and collision switches on the side of the door panel. When any door panel is blocked, the door panel behind it will stop running and will run automatically after the barrier is cleared.
Specification
|
Rail Load
|
750KG/m
|
Door panel speed
|
100~250mm/s
|
|
|
Maximum width
|
3000mm
|
STC
|
40db-53db
|
|
|
Minimum width
|
600mm
|
Voltage supply
|
AC150V~250V
|
|
|
Maximum height
|
16000mm
|
Frequency
|
50~60Hz
|
|
|
The independent motor drive power of each door panel
|
100W
|
Hand thrust
|
u＜ 350N
|
|
|
Operating ambient temperature
|
-20°C+60°C
|
Closing force
|
u200N＜F＜400N
|
|
Use Characteristics
1. High strength
6063-T5
aluminum alloy guide rail.
2. Special motor made of German technology.
3. Automatic control system, one key operation.
4. In case of accidental power failure, manual push and turn function is available to ensure normal passage of personnel.
5. Suitable for conference hall, exhibition hall, banquet hall, multi-function hall and other places.
*
Load bearing of each meter is more than 2000 KGS
* Each pulley bearing more than 1500 KGS
* Easily moved even being pushed at waist-high
* The panel can make a turn automatically as sliding in the straight rail
* Each pulley bearing more than 1500 KGS
* Easily moved even being pushed at waist-high
* The panel can make a turn automatically as sliding in the straight rail
Packing & Delivery
Packing and Delivery :
1.
Standard export packing and
MDF batten cover corners
.
2.
We have professional trucks to transport the goods to our export port ( Guangzhou port).
Our Factory
Our company attaches great importance to the quality and progress of our products. Every year, we spend a lot of energy and financial resources to train professional technicians and improve their independent research and development, design and production capabilities to meet the needs of most customers.After years of management, we have become one of the industry leaders.
FAQ
1.Are you trading company or manufacturer?
We are automatic door manufacturer for many years.
2.
Have your partition wall products come in standard sizes?
No, actually all of our movable partition wall sizes are supported customized.
No, actually all of our movable partition wall sizes are supported customized.
3.Are your products guaranteed?
Yes. The warranty of CN products is 1 year for free maintenance and lifelong service. And we have established a 24-hour service system for whole day service.
4.
Do you provide samples ? is it free or extra?
Free samples can only be provided if the order is large enough. A small quantity can only be a trial order.
Free samples can only be provided if the order is large enough. A small quantity can only be a trial order.
5.Payment terms.
30% -50%deposit and balance before shipment, T/T, Western Union or Cash accepted.
6.Is the movable partition wall acoustic (soundproof)?
Yes, our movable wall system is soundproof. We have different acoustic materials infill to reach different acoustic rating. For heavy series we can reach 53 db.
