- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
320
-
Voltage:
-
110V/220V/380V/415V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AUTOMPACK
-
Dimension(L*W*H):
-
1200x700x1900mm
-
Packing Film Material:
-
OPP/PE,CPP/PET,PE,KOP,VMCPP,VMPET
-
Vendor Model:
-
ATM-320C/380C
-
ATM-320C Bag Size:
-
L50-200mm,W30-150mm
-
Film roll diameter:
-
max 320mm
-
Packing speed:
-
5-80bags/Min
-
Range of measurement:
-
1-1000g
-
Film thickness:
-
0.04-0.12mm
-
Bag type:
-
Pillow bag,3/4 sides seal,chain bag,gusseted bag etc.
-
Option:
-
Printer,batch cutter,vacuum loader,check weigher etc.
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing, counting
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper, Metal
-
Weight (KG):
-
320
-
Voltage:
-
110V/220V/380V/415V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AUTOMPACK
-
Dimension(L*W*H):
-
1200x700x1900mm
-
Packing Film Material:
-
OPP/PE,CPP/PET,PE,KOP,VMCPP,VMPET
-
Vendor Model:
-
ATM-320C/380C
-
ATM-320C Bag Size:
-
L50-200mm,W30-150mm
-
Film roll diameter:
-
max 320mm
-
Packing speed:
-
5-80bags/Min
-
Range of measurement:
-
1-1000g
-
Film thickness:
-
0.04-0.12mm
-
Bag type:
-
Pillow bag,3/4 sides seal,chain bag,gusseted bag etc.
-
Option:
-
Printer,batch cutter,vacuum loader,check weigher etc.

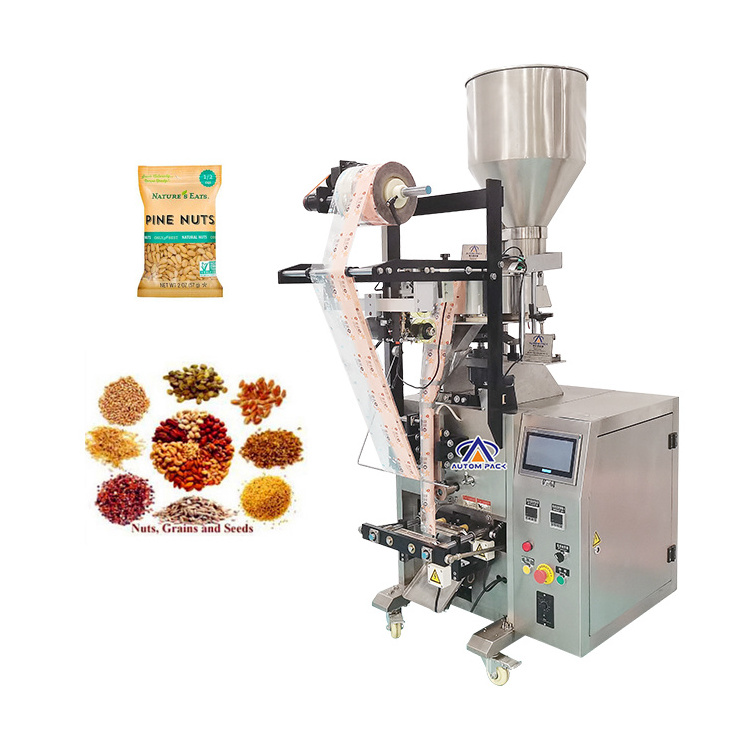

Autompack High-Speed And Efficient Packaging Of 250g 500g 1kg Melon Seeds Pet Food Microwave Popcorn Sugar Rice Sachet Packaging Machine
ATM-320C/380C is applicable for packing loose rounded granules in the pharmaceutical,food chemical and other industried, such as puffed granule,peanuts,melon seeds,rice,seeds,monosodium glytamate, pepper, corn kernels, popcorn, small steamed buns, sugar granules, biscuites and other granular solid materials.
Machine Features
1.Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.
2.Computer plc control and automatic alarming function.
3. English and chinese human-machine operation interface, it is easy to operate, high degree of automation.
4.High sensitivity photoelectric eye color tracing, more accuracy.
5. Famous brand components, ensure the quality and durability of the machine.
| Model | ATM-320C | ATM-380C |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 30-150mm | 60-180mm |
| Film roll diameter | Max. 300mm | Max. 320mm |
| Measuring range | 1-1000ml | 1-1500ml |
| Packaging rate | 5-80 bag/min | 5-80 bag/min |
| Packing film thickness | 0.04-0.12mm | |
| Working voltage | 2.2kw | 2.5kw |
| Packing material applications | OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE | |
| Dimensions | L1200 *W 700 *H 1900mm | L1100mm*W800mm*H2150mm |
| Gross weight(kg) | about 320kg | about 400kg |
1.Hot stamp ribbon coder
2.Batch cutter
3.Vacuum loader
4.On-line check weighting with auto feedback weight
Packing Effect
1.The machine can provide back-seal packing, 3-side seal packing and 4-side seal packing effects.
2.It can be upgraded to add the bag with hanging holes and easy tear effect according to the needs.
