Quick Details
-
Production Capacity:
-
7.5sqm per hour
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
WANLONG
-
Voltage:
-
380V, 50Hz( other available)
-
Dimension(L*W*H):
-
7300*3800*5500mm
-
Weight:
-
9000 kg
-
Warranty:
-
1year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Cutting Granite
-
Usage:
-
Shape Stone Cutting
-
Control system:
-
PLC(imported Brand)
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Blade diameter:
-
350-700mm
-
Cutting materials:
-
Stone Marble Granite Block
-
Model:
-
QSQ-2800
-
Feature:
-
Fast Sharp Cutting
-
Advantage:
-
High Efficent
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
55.3kw
-
Cutting thickness (max):
-
300mm
-
Production Capacity:
-
7.5sqm per hour
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
WANLONG
-
Voltage:
-
380V, 50Hz( other available)
-
Dimension(L*W*H):
-
7300*3800*5500mm
-
Weight:
-
9000 kg
-
Warranty:
-
1year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Cutting Granite
-
Usage:
-
Shape Stone Cutting
-
Control system:
-
PLC(imported Brand)
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Blade diameter:
-
350-700mm
-
Cutting materials:
-
Stone Marble Granite Block
-
Model:
-
QSQ-2800
-
Feature:
-
Fast Sharp Cutting
-
Advantage:
-
High Efficent

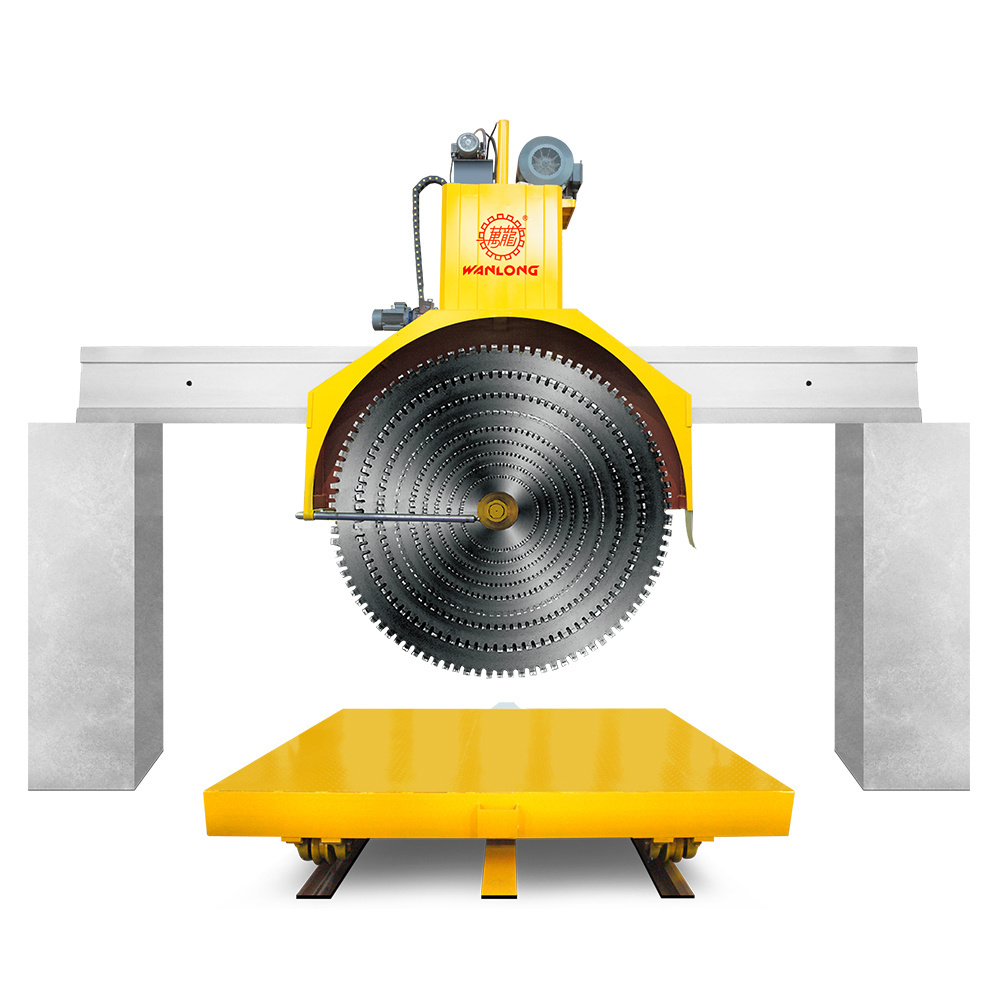

QSQ-2800 Mulitblade bridge block cutter for granite
| QSQ-2200 | QSQ-2500 | QSQ-3000 | ||
|---|---|---|---|---|
| Max.diameter of blade | mm | 2200 | 2500 | 3000 |
| Max.No. of blades | pc | 9 | 5 | 1 |
| Recommended Blade Combination | mm | 2200 2000 1800 1600 1400 1200 1000 800 600 | 2500 2000 1600 1200 800 | |
|
Recommend saw blade thickness |
mm | 6.5 | 32 | 8.0 |
| Main motor power | KW | 45(55) | 45(55) | 37(65) |
| Max.Cutting size(L x W x H) | mm | 3600*2100*950 | 3300(3800)00*2100*1100 | 2800(3800)*2100*1350 |
| Overall dimensions (L x W x H) | mm | 7500*4000*5500 | 7500(8000)*4000*5500 | 7500(8500)*4000*6100 |
| Water consumption | m3/h | 30 | 30 | 20 |
| Approximate weight | Kg | 12000 | 12000(13000) | 12000(14000) |
QSQ-2800 Stone Machine / Block Cutting Machine
1)Bridge Multi blade Cutting Machine
2)Automatic Granite Block Cutter
4)High Productivity & multi disc machine
Machine Models
QSQ-2800 Block Cutter
Blade Diameter: 2200mm Max.
Cutting Slab Size: Max. 3200x1800x1200mm
Precision: +/-0.4~0.5mm
37/45Kw Main Motor
Machine Certificates
CE Certificate
Exporting to Europe, South Americas and Mid-East
QSQ-2200 combines different diameters of blades working, and hydraulic lifting system four columns type, make the machine with high cutting efficiency.
The cross beam moves for feeding and slicing, so that the table for block is not necessary
Heavy duty structure, logical control system easy operation together with "Wanlong" Blade give high production and make the finished slabs with flat surface.
