Quick Details
-
Brand Name:
-
shentai
-
Model Number:
-
SHT-FMCW
-
Material:
-
radar
-
Mode:
-
W-band[76-81GHz]
-
Product name:
-
Radar level meter
-
principle:
-
radar
-
error:
-
±1mm
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
shentai
-
Model Number:
-
SHT-FMCW
-
Material:
-
radar
-
Mode:
-
W-band[76-81GHz]
-
Product name:
-
Radar level meter
-
principle:
-
radar
-
error:
-
±1mm
Product Introduction

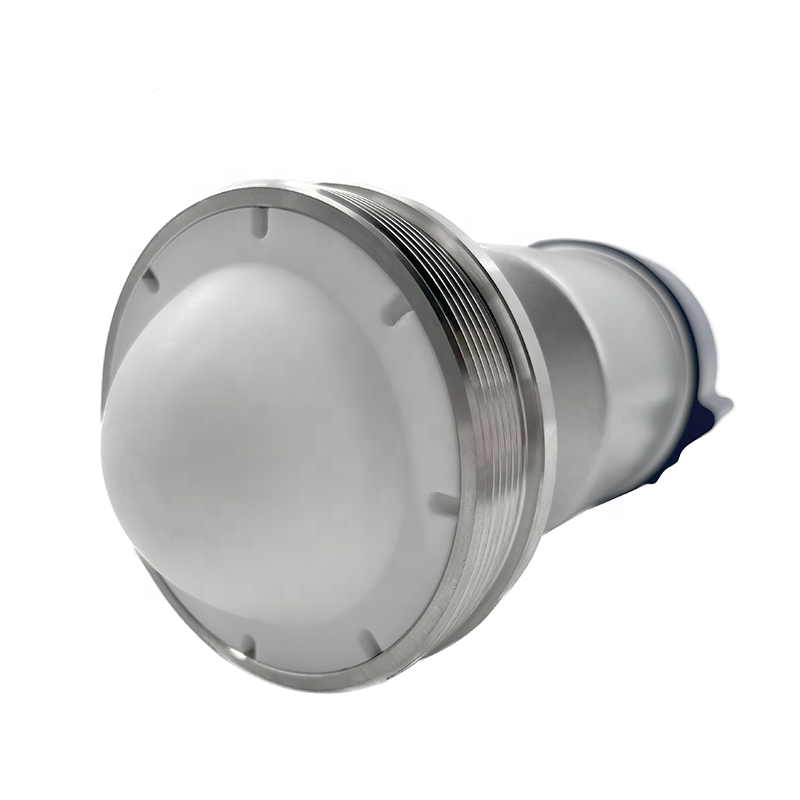

SHT-FMCW 80G radar level meter, with a measurement accuracy of ± 1mm, measures the level by transmitting and receiving radar waves, without the need for contact with the measured medium, and is not affected by factors such as high temperature, high pressure, and strong corrosion. It has a smaller beam angle, more convenient installation, high transmission frequency, strong anti-interference ability, and can adapt to various complex industrial environments.
Product parameters
|
model
|
SHT-FMCW
|
|
|
|
|||
|
frequency range
|
W-band【76-81GHz】
|
|
|
|
|||
|
Range
|
Maximum 120 meters，Support customization
|
|
|
|
|||
|
measurement accuracy
|
±1mm
|
|
|
|
|||
|
Output format
|
4-20mA，RS485
|
|
|
|
|||
|
Communication methods
|
HART，MODBUS
|
|
|
|
|||
|
Power supply range
|
24±6VDC
|
|
|
|
|||
|
Antenna form
|
Horn or lens antenna
|
|
|
|
|||
|
Process Connection
|
DN50，G3/4，Support customization
|
|
|
|
|||
|
Process pressure
|
-1-20bar
|
|
|
|
|||
|
Process temperature
|
-40-200℃
|
|
|
|
|||
|
Environmental storage temperature
|
-40-80℃
|
|
|
|
|||
|
Shell material
|
Cast aluminum alloy，304ss
|
|
|
|
|||
|
Integral time
|
0-20S Adjustable
|
|
|
|
|||
|
Blind spot
|
0.05M/0.2M
|
|
|
|
|||
|
Protection level
|
IP67
|
|
|
|
|||
Company Introduction
Zhengzhou Shentai Instrument Manufacturing Co., Ltd. is a manufacturer with 16 years of production and manufacturing experience. Strict quality management and complete quality assurance system have met the IS09001:2015 standard, and have obtained SIL3, CE certification, and explosion-proof certificate.
Oualification Certificate
Product transportation
Usage scenarios
SHT-FMCW 80G frequency modulation radar level meter can measure: magnesium powder, coal powder, cement powder, lime powder and other solids, as well as: reactor level, large steam level, foam product level, crystal product level meter, ultra-high temperature product level, ultra-high pressure product level, sanitary product level
Frequently asked questions
1. How long do you take to reply to messages
We will contact you as soon as possible within 12 hours
2. What certificates do you have
IS09000, CE, explosion-proof certification, SIL
3. How long will the product be scheduled for production
We will arrange production as soon as we receive your order
4. How long does production take
According to the product situation. It usually takes 3-5 days. For large orders, please contact us for specific communication
5. How to ensure product quality
Provide good warranty services for quality inspection of materials, production, and finished products
6. May I visit your factory
Welcome to visit us anytime. Our factory is located in Zhengzhou City, Henan Province
7. Can you provide customized services
Yes, providing both OEM and ODM
