Quick Details
-
Brand Name:
-
JIND
-
Model Number:
-
JD-EX901IP2
-
Technology:
-
Network
-
Sensor:
-
1/2.9" SONY 2 Megapixel(1920*1080) CMOS Sensor
-
Power supply:
-
DC12V2A
-
IR Distance:
-
15M
-
Video Compression:
-
H.264/H.265
-
IR led:
-
12pcs IR led
-
Day and night:
-
Support
-
Weight:
-
1.8KG
-
Product name:
-
Mini car ship explosion proof dash ip camera
Quick Details
-
Function:
-
NIGHT VISION
-
Data Storage Options:
-
NVR
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JIND
-
Model Number:
-
JD-EX901IP2
-
Technology:
-
Network
-
Sensor:
-
1/2.9" SONY 2 Megapixel(1920*1080) CMOS Sensor
-
Power supply:
-
DC12V2A
-
IR Distance:
-
15M
-
Video Compression:
-
H.264/H.265
-
IR led:
-
12pcs IR led
-
Day and night:
-
Support
-
Weight:
-
1.8KG
-
Product name:
-
Mini car ship explosion proof dash ip camera

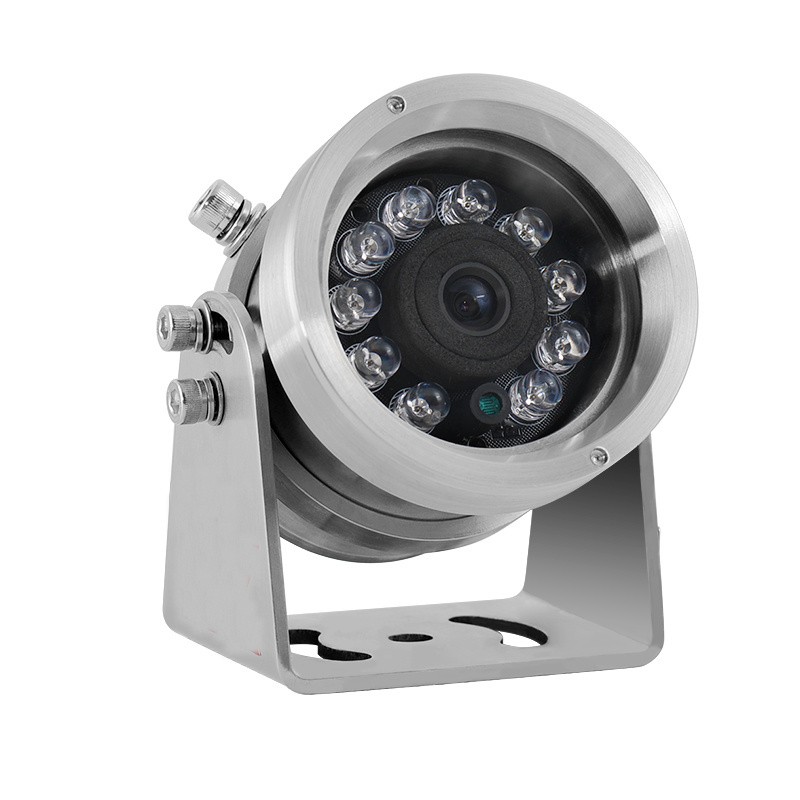

Mini car ship stainless steel waterproof explosion-proof IP security dash camera
Product Description
Camera feature
Ingress Protection: IP66
Integrate explosion-proof camera and infrared lamp with intelligent design
304L or 316 stainless steel, polished finish appearance, corrosion-proof treated internal parts
Silicone O-ring seals
| General | |
| Marking: |
Ex d IIC T6Gb/DIP A20 TA,T6 |
| CNEx13.3027X | |
| Ingress Protection: | IP66 |
| Operating Conditions: | -30 °C ~ 70 °C (-22 °F ~ 158 °F) |
| Humidity 95% or less (non-condensing) | |
| Material: | 304L or 316 stainless steel |
| Power Supply: | DC12V |
| IR Range: | Up to 15m |
| Dimensions: | 109mm(H)*83(W)*106(H) |
| Unit weight: | 1.8 kg |
| Electrical Connectivity: | Composite Cable |
| Interface spec: | G-1/2'' |
| Method of installation: | Ceiling type & wall mounting |
| Camera | |
| Image Sensor: | 1/2.9" SONY 2 Megapixel(1920*1080) CMOS Sensor |
| Signal System: | PAL/NTSC |
| Min. Illumination: | 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR on |
| Shutter time: | 1/50(1/60)s to 1/10,000s |
| Lens: | 3.6mm,6mm,8mm optional |
| Day& Night: | ICR (Auto/Schedule/Alarm Trigger) |
| Compression Standard | |
| Video Compression: | H.264/H.265,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable |
| H.264 code profile: | Baseline profile/main profile/high profile |
| Video bit rate: | 32Kbps~16Mbps |
| Image | |
| Max. Image Resolution: | 1920 x 1080 |
| Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In |
