Quick Details
-
Application:
-
Construction Industry
-
Rated Lifting Moment:
-
15.7T.M
-
Span:
-
5000mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ccmie
-
Weight (KG):
-
3370 kg
-
model:
-
SQS200B/B-II/B-III/B-IV truck-mounted crane
-
Max Lifting Capacity:
-
8000kg
-
Max Lifting Moment:
-
15.7t.m
-
Number of telescopic joints forboom:
-
2
-
maximum working radius:
-
8.5m
-
Luffing angle:
-
0-75 °
-
slewing angle:
-
360 °
-
slewing speed:
-
2.5r/min
-
rated working pressure:
-
20MPa
-
rated flow:
-
40 L/min
Quick Details
-
Rated Loading Capacity:
-
6.3t
-
Max. Lifting Height:
-
2450MM
-
Engine Brand:
-
Cummins
-
Application:
-
Construction Industry
-
Rated Lifting Moment:
-
15.7T.M
-
Span:
-
5000mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ccmie
-
Weight (KG):
-
3370 kg
-
model:
-
SQS200B/B-II/B-III/B-IV truck-mounted crane
-
Max Lifting Capacity:
-
8000kg
-
Max Lifting Moment:
-
15.7t.m
-
Number of telescopic joints forboom:
-
2
-
maximum working radius:
-
8.5m
-
Luffing angle:
-
0-75 °
-
slewing angle:
-
360 °
-
slewing speed:
-
2.5r/min
-
rated working pressure:
-
20MPa
-
rated flow:
-
40 L/min

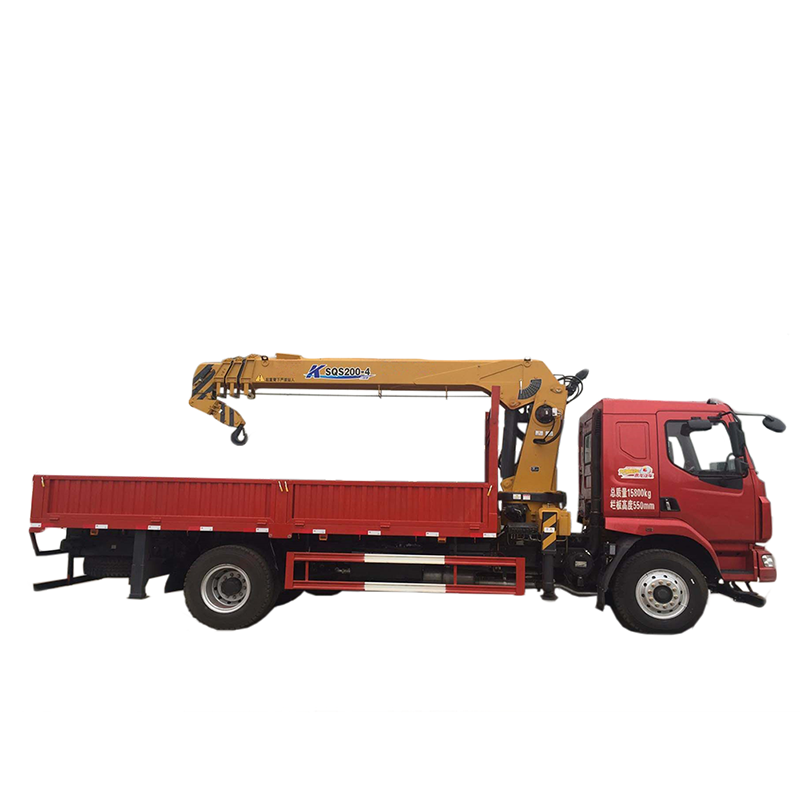

Straight Arm 2 ton Hydraulic Trailer Flatbed Truck Mounted Crane SQS200B
1. Structural pieces with 690MPa high-strength steel plate welding, high strength, good toughness, light weight.
2. The use of advanced three-dimensional design and stress analysis to ensure product reliability.
3. Rotary mechanism using hydraulic mechanical double brake, to ensure the operation and driving safety.
4. Winning mechanism using mature hydraulic winch structure of small noise, high efficiency, good reliability.
5. Suspension and contraction of the three-stage cylinder + cable with telescopic form, with the ability to carry the leading domestic, cylinder part of the 100%, rigging part of 2 /
6. Work range, wide range of applications.
Products with car seat control, operation field of vision better, more secure operation.
I f you have any other questions or requirements,please feel free to contact me. Hope our products can make you satisfied. → → Click Here sales ← ←
