Quick Details
-
Product name:
-

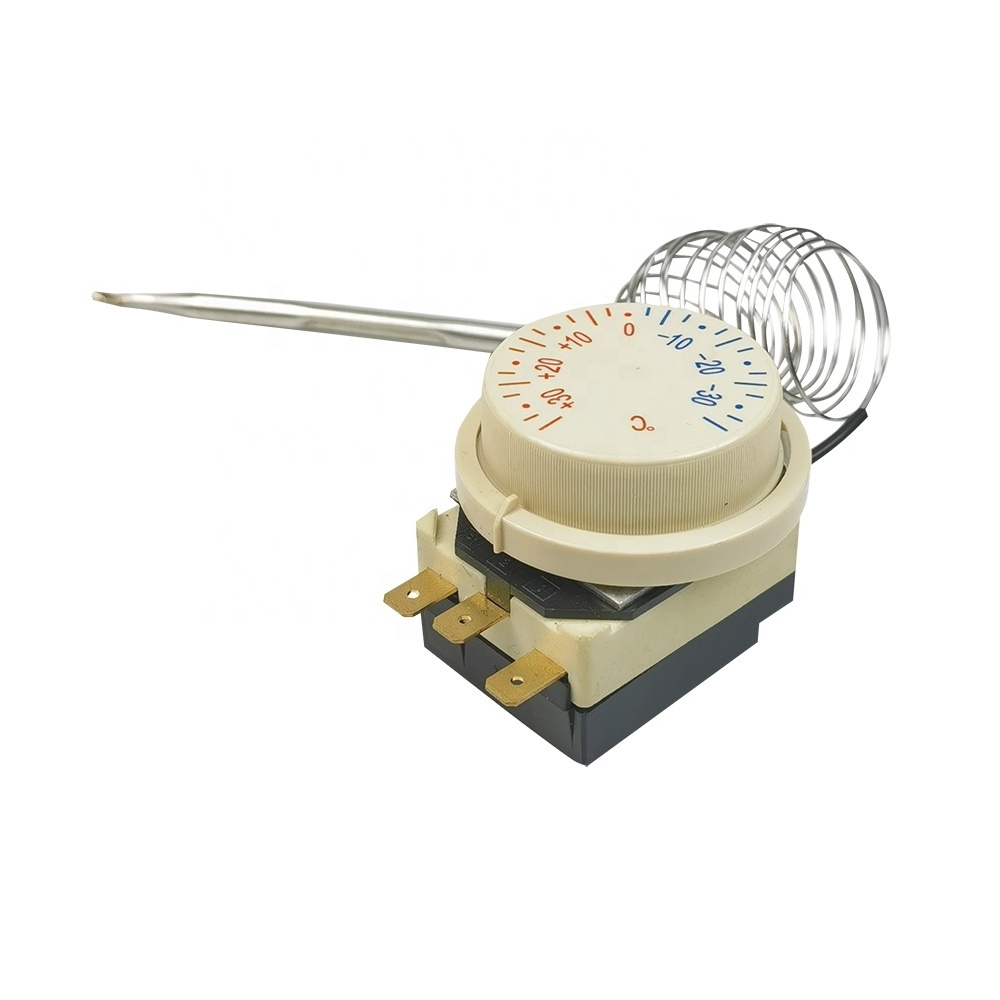

Capillary thermostat
-
Temperature range:
-
-35-350℃
-
Application range:
-
Water heater, Oven, other appliance
-
Certificate:
-
TUV&CE&KC&CB&CQC
-
Port of loading:
-
Any Chinese Port
-
Color:
-
white
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHALAN
-
Model Number:
-
WY
-
Product name:
-
Capillary thermostat
-
Temperature range:
-
-35-350℃
-
Application range:
-
Water heater, Oven, other appliance
-
Certificate:
-
TUV&CE&KC&CB&CQC
-
Port of loading:
-
Any Chinese Port
-
Color:
-
white
We have 6 mature production lines, can simultaneously meet customers on bimetal temperature controller, hydraulic temperature controller, carbon rod, kettle temperature controller for a variety of occasions of a variety of needs. Our exquisite technology, good quality, affordable, convenient delivery, is your assured purchase of the first choice.
Widely used for electric water heater, washer, electric oven, fried pan, ice machines, fish ponds, etc.
| Rated current and rated voltage of switch | C-1: 16A AC 250V ; C-2: 16A AC250V |
| Designed temperature range | -35°C ~ 350 °C |
| Capillary Length | 300-3000mm |
| Insulation resistance | > 100MΩ (normal) |
| Dielectric strength | 2000V. AC 1min (normal) |
| Life cycles | >100000 |
| Test gradient | ≤1.0℃/min (liquid medium) |
| Max. ambient temp. of main body | 150℃ |
| Rotating torque of adjustment shaft | <40N.cm |
| Switch type | SPST / SPDT |
| Certificate | TUV&CE&KC&CB&CQC |
Advantages:
• accurate temperature controlling;
• great contact capacity;
• wide control range;
• high reliabilities;
• About 90% of the parts of our products are produced by ourselves, with excellent quality control, strong competitive prices, and timely delivery. We have many source factories and look forward to your visit!
Our advantage
1.Shell color and logo can be customized.
2. We provide EU/US/UK/Australia plugs,also can be customized according to customer requirements.
3. Free professional packaging design, support OEM and ODM custom packaging.
1. Do you provide free samples? How long will the samples be ready?
Yes. Samples are FREE. You just need to pay the delivery cost.
Usually, we need 7 days to prepare samples.
2. Can I have your pirce list?
Sorry, price list is not available. All of our products are customized. We need to know the cable
size, length and other specifications to count the prices.
3. What is your shipping method?
We will help you to choose the best shipping method according to your orders. If you have pointed forwarder in China, we will help to arrange the shippment ASAP.
4. What is your payment term?
T/T. 30% deposit, 70% before delivery
