Quick Details
-
Theoretical Shot Volume(cm³):
-
71.4 cm³
-
Injection Rate (g/s):
-
58 g/s
-
Injection Weight (g):
-
71.4 g
-
Screw Speed (rpm):
-
0 - 0
-
Screw diameter (mm):
-
28 mm
-
Screw L/D Ratio:
-
115
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
116 mm
-
Model Number:
-
JT-250ST
-
Brand Name:
-
JIE TAI
-
Power (kW):
-
2.2 kW
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-

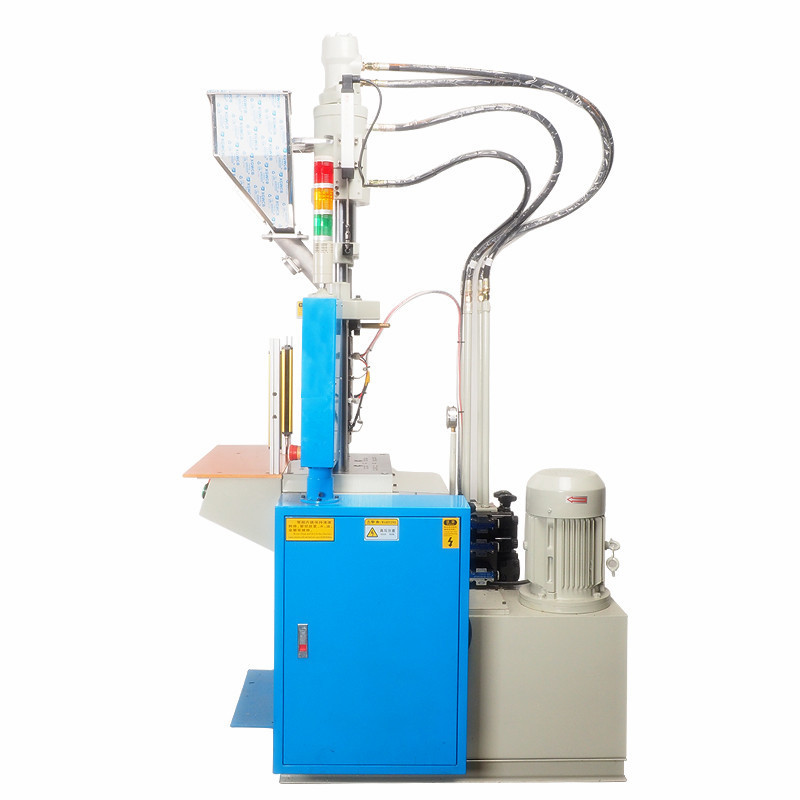

Mini Plastic Thermoforming Injection Molding Machine For Usb Cable
-
Screw Diameter:
-
28mm
-
Injection pressure:
-
1019kg/cm2
-
Min. Mold Thickness:
-
100/25mm
-
Platen Size:
-
450*280mm
-
Distance Between Tie Bere:
-
270
-
MACHINE DIMENSION:
-
1.35*0.92*2.06m
-
Machine Weight:
-
1.0Tons
Quick Details
-
Mold Height(mm):
-
25 - 75
-
Ejector Stroke(mm):
-
25 mm
-
Ejector Force(kN):
-
12.7 kN
-
Theoretical Shot Volume(cm³):
-
71.4 cm³
-
Injection Rate (g/s):
-
58 g/s
-
Injection Weight (g):
-
71.4 g
-
Screw Speed (rpm):
-
0 - 0
-
Screw diameter (mm):
-
28 mm
-
Screw L/D Ratio:
-
115
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
116 mm
-
Model Number:
-
JT-250ST
-
Brand Name:
-
JIE TAI
-
Power (kW):
-
2.2 kW
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
Mini Plastic Thermoforming Injection Molding Machine For Usb Cable
-
Screw Diameter:
-
28mm
-
Injection pressure:
-
1019kg/cm2
-
Min. Mold Thickness:
-
100/25mm
-
Platen Size:
-
450*280mm
-
Distance Between Tie Bere:
-
270
-
MACHINE DIMENSION:
-
1.35*0.92*2.06m
-
Machine Weight:
-
1.0Tons
Microplast Injection Machine Mini Vertical Injection Machine Paint Bucket Plastic Injection Moulding Machine
Product Detail
| After-sales Service Provided | Overseas service center available |
| Product name | Mini Plastic Thermoforming Injection Molding Machine For Usb Cable |
| Screw Diameter | 28mm |
| Injection pressure | 1019kg/cm2 |
| Min. Mold Thickness | 100/25mm |
| Platen Size | 450*280mm |
| Distance Between Tie Bere | 270 |
| MACHINE DIMENSION | 1.35*0.92*2.06m |
| Machine Weight | 1.0Tons |
| Product Keywords | microplast injection machine,mini vertical injection machine,paint bucket plastic injection moulding machine |
| MODEL | UNIT | JY-160S2 | ||
| Injection Unit | Screw Diameter | mm | 26 | 28 |
| Injection Pressure | kg/cm2 | 1183 | 1019 | |
| Max.Shot Weight(PS) | g | 50 | 60 | |
| Injection Rate | mm | 105 | ||
| Clamping Unit | Clamping Force | Tons | 15 | |
| Platen Size | mm | 450x280 | ||
| Distance Between Tie Bere | mm | 265 | ||
| Min.Mold Height | mm | 100/25 | ||
| Opening Stroke | mm | 190 | ||
| Enjection Force | Tons | 1.3 | ||
| Enjection Stroke | mm | 35 | ||
| Power Unit | Max.Hydaulic Pressure | kg/cm2 | 140 | |
| Pump Motor Power | KW/HP | 2.2/3HP | ||
| Total Weight | KW | 14.2 | ||
| Other | Machine Weight | Tons | 0.85 | |
| Machine Dimensions(LxWxH) | m | 1.25x0.85x2.3 | ||
| Shipping Weight | Tons | 1.0 | ||
| Shipping Measurements(LxWxH) | m | 1.6x1.0x2.23 | ||
JY-160S2 Platen Drawing :
Tell me what you want yo make, let me show you your machine...
Mini Plastic Thermoforming Injection Molding Machine For Usb Cable
Factory discount,click inquiry Now to get additional 6 month warrantyl,total in 18 months warranty !
