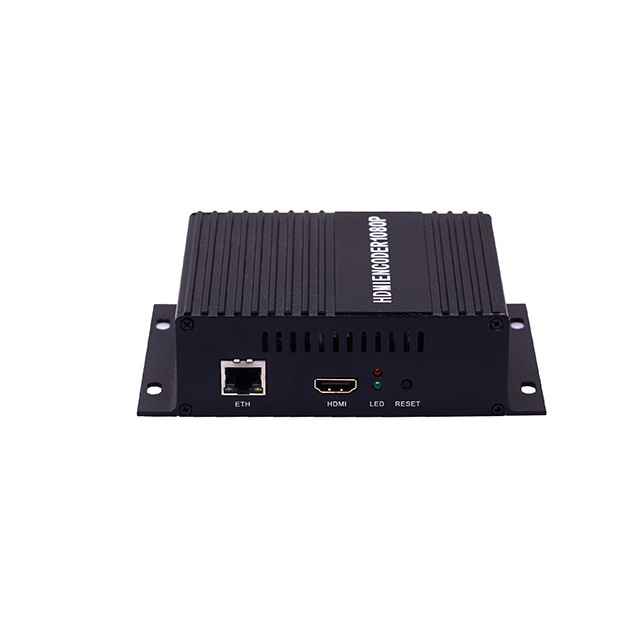

IPTV Headend Living Broadcast Server h.265 hd-mi streaming encoder

Outline:

CU-9110 1/4/16 HDMI /CVBS/VGA/Ypbpr encoder is professional hd audio and video coding device ,

this device can support 1 channel HDMI /VGA/CVBS/Ypbpr video audio input function, It supports

encod es H.264 and H.265 format and audio encodes audio MP3, AAC. It can be changed as demands .

The integration of the equipment are high, high cost performance. It s upport IP output with HTTP/RTSP/RTP/RTMP/UDP protocol and transmission.
Support external audio input.I t is very easy to use by plug in Ethernet cable,It doesn't have computer

hardware compatibility issues, don’t need hd acquisition card .

Features:

1. Video resolution: 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 others.

2. Input :HDMI,VGA,CVBS, YPbPr

3. It support WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 , WIN7 64,LINUX

4. It support more units in on computer to work.

5. It support connect internet directly.

6. It support RTSP/RTP/RTMP, HTTP, UDP multicast and unicast

7. It support main stream and an other stream

8. Its Encoding standard: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE, Audio: MP3,AAC

9.Support VBR or VBR video bitrate mode , CBR/VBR 16KBIT/S~12MBIT/S

10.WEB management

11.Power consumption <6W

12.Dimensions (W×D×H) : 100mm x 118mm x 40mm , Approx weight : 0.3KG

Shineco h.265 hd-mi streaming encoder Application and Web Interface
