Quick Details
-
Brand Name:
-
XGN, Xingaonai XGN
-
Dimension(L*W*H):
-
Depend On Models
-
Weight:
-
35000 KG
-
Product name:
-

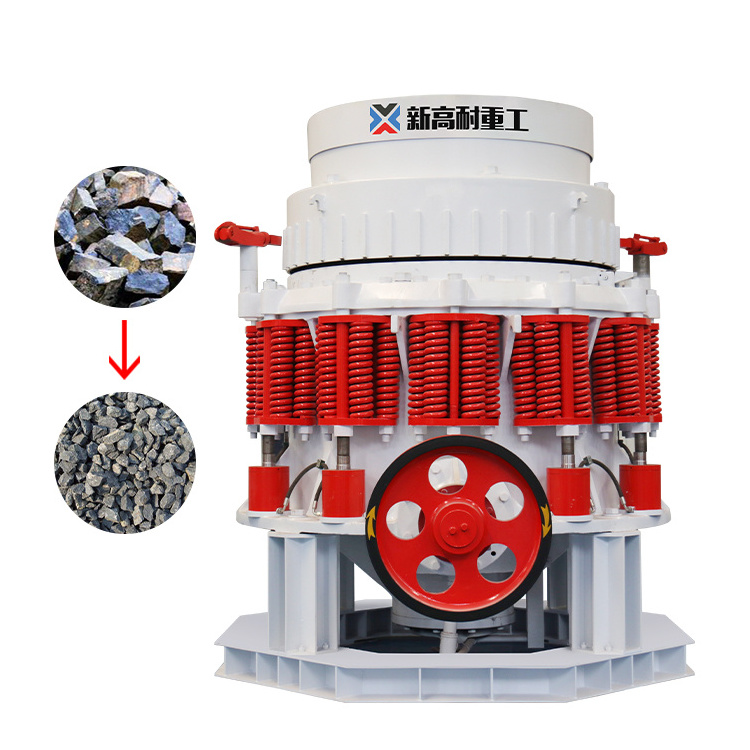

symons cone crusher
-
Model:
-
X1650C2-D
-
Applicaton:
-
Quarry, Mining, Metallurgy, Energy & Mining Etc
-
After-sales Service Provided:
-
24h On Line Support
-
The Machines classification:
-
Coarse Crushing
-
Feeding size:
-
300mm
-
Quality:
-
Advanced Technology
-
Output size:
-
31-65mm
Quick Details
-
Application:
-
Quarry, Mining, Metallurgy, Energy & Mining Etc
-
Capacity(t/h):
-
280-610t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XGN, Xingaonai XGN
-
Dimension(L*W*H):
-
Depend On Models
-
Weight:
-
35000 KG
-
Product name:
-
symons cone crusher
-
Model:
-
X1650C2-D
-
Applicaton:
-
Quarry, Mining, Metallurgy, Energy & Mining Etc
-
After-sales Service Provided:
-
24h On Line Support
-
The Machines classification:
-
Coarse Crushing
-
Feeding size:
-
300mm
-
Quality:
-
Advanced Technology
-
Output size:
-
31-65mm
Product Details
Product Structure & Working Principle
It is mainly composed of a frame, a fixed cone assembly, a moving cone assembly, a spring mechanism, a bowl shaped shaft frame, a transmission, an electrical system, a thin oil lubrication system, and a hydraulic cavity cleaning system.
This crusher has a layered crushing characteristic. During the working process, the motor drives the eccentric sleeve to rotate through a transmission device. The moving cone rotates and swings under the force of the eccentric shaft sleeve. The section where the moving cone is close to the static cone becomes a crushing chamber. The material is crushed by multiple presses and impacts of the moving cone and the static cone. When the moving cone leaves this section, the material that has been broken to the required particle size falls under its own gravity and is discharged from the bottom of the cone.
Product Parameters
|
Model
|
Function
|
Stroke
(mm)
|
Max feed size
(mm)
|
Discharge port adjustment range
(mm)
|
Capacity
(t/h)
|
Motor Power
(kw)
|
Weight
(t)
|
|
X1200C-D
|
Coarse crushing
|
22
|
180
|
19~50
|
110~250
|
132
|
16
|
|
X1400C-D
|
Coarse crushing
|
30
|
235
|
25~65
|
210~530
|
220
|
25
|
|
X1400Z-D
|
Medium crushing
|
30
|
215
|
22~50
|
200~500
|
220
|
25
|
|
X1400Z-X
|
Medium crushing
|
25
|
180
|
19~45
|
180~475
|
220
|
25
|
|
X1650C2-D
|
Coarse crushing
|
34
|
300
|
31~65
|
280~610
|
250
|
35
|
|
X1650C-D
|
Coarse crushing
|
34
|
260
|
25~65
|
265~580
|
250
|
35
|
|
X1650Z-D
|
Medium crushing
|
34
|
240
|
19~50
|
240~550
|
250
|
35
|
Products Description
why choose
xingaonai x series symons cone crusher
Xingaonai Heavy Industry Machinery Co., Ltd. X series compound cone crusher has large crushing ratio, high efficiency, low energy consumption, and uniform particle size,it is suitable for medium and fine crushing of various hard materials.
Performance Characteristics Of This Machine
1.The fuselage has high strength, and the accessories are finished and durable; labyrinth combination, grease seal, good
dust proof effect.
2.Semi-automatic hydraulic adjustment of the discharge port, fast and convenient; special crushing chamber design, effectively improve production capacity.
3.The replacement of the movable and fixed tooth plates does not require fillers, which is convenient and quick, and can be quickly put into production and operation; the fixed cone is mechanically locked by a swing bolt, which is easy to operate and has a low failure rate.
4.The lubricating oil circulating cooling system is designed according to the actual situation of the customer, and the
temperature control system and pressure control system are convenient for customers to master and operate.
5. Over-iron protection, safe and reliable; automatic cavity cleaning, fast and time-saving; bevel gear transmission, firm and
stable.
4.The lubricating oil circulating cooling system is designed according to the actual situation of the customer, and the
temperature control system and pressure control system are convenient for customers to master and operate.
5. Over-iron protection, safe and reliable; automatic cavity cleaning, fast and time-saving; bevel gear transmission, firm and
stable.
Applicable materials:
lithium ore, iron ore, non-ferrous metal ore, granite, basalt, limestone, etc.
Scope of application: Sand and gravel quarries, building materials, metal and non-metal mines and other industries.
Scope of application: Sand and gravel quarries, building materials, metal and non-metal mines and other industries.
Why Choose Us
Stone Crushing & Grinding First Brand
We have
3
manufacturing base
Zhengzhou City, Henan Province
Wuzhi City, Henan Province
Xiuwu City, Henan Province
We have
2
brand
Zhengzhou Xingaonai Heavy Industry Machinery Co., Ltd.
(For middle hard stone solutions)
Jiaozuo Pathfinder Heavy Industry
Machinery Co.,Ltd,
(For hard stone solutions)
We have 33 service station worldwide
Give clear solutions within 12 hours
Rush to the site within 24 hours
Xingaonai Group is specialized in R&D and manufacturing of stone crushing, sand making, powder grinding, screening, feeding, conveying, dust collecting and other equipment, we give One-stop Green-Smart-Efficient mining solutions.
Innovation can't just be said in words, it must be turned into a project, and the innovation must be implemented. Today, the company has continuously developed crushing equipment, sand making equipment, mineral processing equipment, supporting equipment, etc. with keen market insight and forward-looking Multi-series, more than 100 models of highly influential products have created more value for enterprises and society.
Our group continuously researches and develops new equipment, adjusts product structure, improves product system, intensively cultivates the core fields of "building crushing, mine crushing, industrial sand making, green building materials, and metal beneficiation", builds three modern equipment production bases, and establishes large-scale equipment The production line continuously improves the production capacity and market influence of the enterprise. In addition to the XGN-Q series hammer crusher, the types of medium and large intelligent crushing equipment are also becoming more and more perfect.
Certifications
Exhibition
Packaging & Logistics
Packing
1.The equipment and wearing parts are packed in plastic film and wooden box.
2.FCL:Shipped in standard export container.3.Various packaging methods can be provided according to customer requirements, such as: fumigation-free wooden boxes, steel boxes, etc.
Sea freight
We ship the goods to China's main seaports, such as Qingdao, Tianjin, Shanghai, etc., and then ship the equipment to your country by sea.
FAQ
A) What is the core competitiveness of the company?
We regard product development as a key task, and develop new products with strong technology, intensive knowledge and good market prospects by tracking demand hot spots and aiming at technological progress in the industry.
B) Product line coverage?
The main business is the equipment required for the production line with an output of 100-6000 tons per hour.
C) What is the main business direction of the product?
Our comprehensive solutions for a range of processes in rock crushing and metal ore.
D) Does the company undertake to build a complete production line?
According to customer needs, we tailor-made recommendations or customization, fast and accurate understanding, special car transportation and distribution, customer inspection and after-sales service, escorting you.
E) Does the company have relevant crusher parts services?
We can provide all kinds of accessories for crushing and screening equipment, with advanced technology, reliable performance and durability, to ensure that customers' needs can be met in a timely and effective manner.
