Quick Details
-
Warranty:
-
1 Year
-
Type:
-
Canbus Decoder
-
OE No.:
-
N/A
-
Total Resistor:
-
50W 6Ω
-
Capacitance:
-
16V 10000μF -40~105°
-
Operating Voltage:
-
12V DC
-
Fitment Bulb Size:
-
H15
-
Placement on Vehicle:
-
Front, Left, Right
-
Product Type:
-
Anti Flicker Resistor Warning Canceller Decoders
-
Installation:
-
Plug and Play
-
Technology:
-
LED
-
Fit For:
-
LED Headlight Foglight DRL
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bevinsee
-
Model Number:
-
7401130109
-
Warranty:
-
1 Year
-
Type:
-
Canbus Decoder
-
OE No.:
-
N/A
-
Total Resistor:
-
50W 6Ω
-
Capacitance:
-
16V 10000μF -40~105°
-
Operating Voltage:
-
12V DC
-
Fitment Bulb Size:
-
H15
-
Placement on Vehicle:
-
Front, Left, Right
-
Product Type:
-
Anti Flicker Resistor Warning Canceller Decoders
-
Installation:
-
Plug and Play
-
Technology:
-
LED
-
Fit For:
-
LED Headlight Foglight DRL
❤Welcome to Bevinsee Car LED ❤
10+ years OEM/ODM Experience
Various Car LED Parts Options
Products Description

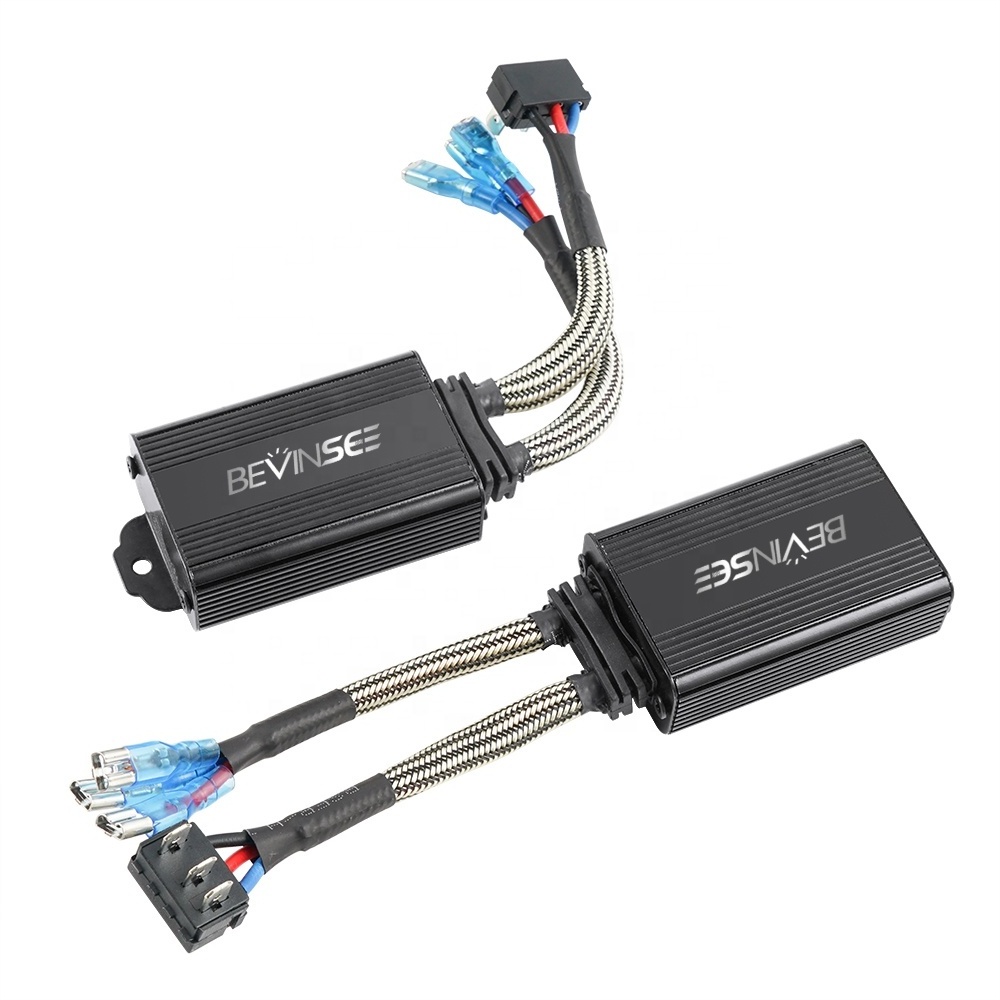

Bevinsee 2x
H15 LED Headlight Canbus Load Resistor Warning Error Free H15 Headlight Canceller Anti Flicker
Item Specifications:
|
For bulb size: H15 (Plug-N-Play installation)
|
|
Operating Voltage：12V DC
|
|
EMC anti-interference function
|
|
80% CANBUS decoding function
|
|
20% focus on filtering function
|
|
Total Resistor: 50W 6Ω
|
|
Capacitance: 16V 10000μF -40~105°
|
Features:
--This Item will help to solve follow problem,the helpful rate up to 90% (Not 100% can solve your car decoding problem, please Understanding);
--Bulb flashing or flicker;
--Radio interference;
--The light turn off automatically engine starts;
--Error message caused by OBC (On-Board Computer)/ECU check.
--It will be generated large heat during working.Please fix the resistor outside of the headlight housing.
--Bulb flashing or flicker;
--Radio interference;
--The light turn off automatically engine starts;
--Error message caused by OBC (On-Board Computer)/ECU check.
--It will be generated large heat during working.Please fix the resistor outside of the headlight housing.
Package Included:
2x Canbus Decoders
How To Confirm whether can-bus is needed?
-- After installing the LED bulbs, the Vehicle needs to be decoded in the following cases:
1. the headlight light is flashing, strobe or indefinitely flashing(Electrolytic capacitor decoding may worked).
2. the on-board computer(ECU) reports an error, the central control panel displays an error icon or displays bulbs burns out error message.(Resistance decoding may worked)
3. The bulbs does not work. What you can do is connect the bulbs to12V DC ,it can work normally(Resistance decoding may worked).
situation 1: Use this case to judge whether it need to be decoded.
situation 2: Use this case to judge whether is a reverse polarity plug(turn bulb's plug 180° to insert into headlamp and turn on to test) Feasible Solution: 1, install the decoder; the decoding rate of the decoder on the market is about 90%, can not completely decode all models, the turnover rate is larger. 2, install the resistor, you need professional installation. 3, using ODM to read the error information code of the ECU on-board computer, through programming means, correct the error information to achieve the decoding effect.
1. the headlight light is flashing, strobe or indefinitely flashing(Electrolytic capacitor decoding may worked).
2. the on-board computer(ECU) reports an error, the central control panel displays an error icon or displays bulbs burns out error message.(Resistance decoding may worked)
3. The bulbs does not work. What you can do is connect the bulbs to12V DC ,it can work normally(Resistance decoding may worked).
situation 1: Use this case to judge whether it need to be decoded.
situation 2: Use this case to judge whether is a reverse polarity plug(turn bulb's plug 180° to insert into headlamp and turn on to test) Feasible Solution: 1, install the decoder; the decoding rate of the decoder on the market is about 90%, can not completely decode all models, the turnover rate is larger. 2, install the resistor, you need professional installation. 3, using ODM to read the error information code of the ECU on-board computer, through programming means, correct the error information to achieve the decoding effect.
Note :
This decoder is only suitable for decoding LED lights below 35W, lights greater than 35W are not applicable.
