Quick Details
-
Dimension(L*W*H):
-
65*55*44cm
-
Weight (KG):
-
55
-
Power (kW):
-
0.25
-
Type:
-
Surface Grinding Machine
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Users:
-
everyone
-
Key words:
-
Saw blade sharpener
-
Advantage:
-
Recyling Using of Saw Blade
-
Standard grinding wheel:
-
White corundum wheel
-
Saw blade diameter:
-
(25mm)60-150
-
Power Source:
-
Electricity
-
Usage:
-
saw blade
-
Precision:
-
High Accuracy
-
Model:
-
Q12
-
Table Travel (Y) (mm):
-
0
-
Surface Roughness(μm):
-
0.02
-
Table Travel (X) (mm):
-
0
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MRCM
-
Voltage:
-
220V 50HZ
-
Dimension(L*W*H):
-
65*55*44cm
-
Weight (KG):
-
55
-
Power (kW):
-
0.25
-
Type:
-
Surface Grinding Machine
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Users:
-
everyone
-
Key words:
-
Saw blade sharpener
-
Advantage:
-
Recyling Using of Saw Blade
-
Standard grinding wheel:
-
White corundum wheel
-
Saw blade diameter:
-
(25mm)60-150
-
Power Source:
-
Electricity
-
Usage:
-
saw blade
-
Precision:
-
High Accuracy
-
Model:
-
Q12
-
Table Travel (Y) (mm):
-
0
-
Surface Roughness(μm):
-
0.02
-
Table Travel (X) (mm):
-
0
-
Certification:
-
CE ISO

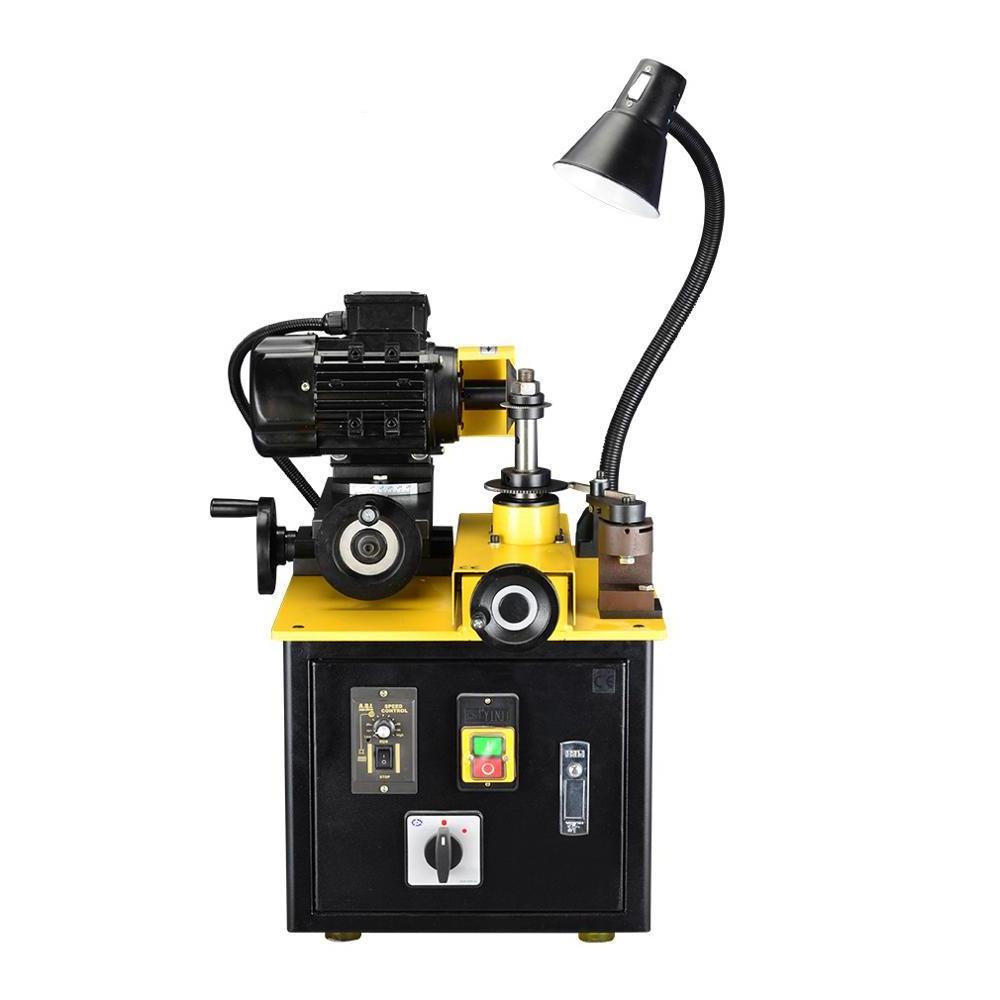

High quality precision chipper blade sharpening machine
This manual circular saw blade sharpener machine is specially designed for hard alloy saw blade grinding blade design, adapt various hard alloy saw blade grinding.
equipped with adjustable type around the plate, can maximum limit hold saw blade tooth grinding department or other parts, with positioning pins, according to the saw blade diameter size and how much the number of teeth, adjust to the best position, skateboarding can be horizontal rotation, can keep the original of saw blade grinding blade Angle or to change it.
Specification
| Model | MR-Q12 |
|
Saw blade diameter |
(25)60-150mm |
| Power | 220V,50HZ,1 PHASE |
| Motor | 550W |
| Speed |
60teeth/min |
| Dimension | 65*55*44cm |
| Weight | 55KG |
| Standard Equipment | Grinding wheel:1 pcs |
| Diamond pen: 1 pcs | |
| Press block: 22,27,32 | |
| Tooth number template: 50Z,60Z,72,80Z | |
| Option Equipment | Template: according to your company use |
Details:
MR-Q12
SAW BLADE SHARPENER
Applicable special machine to disk saw blade grinding, open tooth.
Accurate positioning, high speed composite of hard alloy, white steel saw blade grinding.
Automatic blade grinding machine in the grinding process, can automatically dial tooth, no section speed, fast and accurate.
EXPORTING PACKAGE, SAFE AND STABLE
