- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
36 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
iStartek
-
Model Number:
-
3G VT900 G
-
Product Name:
-
anti brouilleur sms reset gps tracker tk905i with free software
-
Sensor:
-
Motion Sensor
-
I/O:
-
1RS232+1AD+3IN+2OUTPUT
-
Weight:
-
90g
-
Size:
-
65mm x 61mm x 26mm
-
Backup Battery:
-
500mAh
-
Operating temperature:
-
-20° to 65° C
-
GSM Module:
-
Quectel UC15
-
GSM Band:
-
GSM/UMTS
-
Certificate:
-
ISO9001:2008, CE, CCC, FCC, NBTC, DLT, AIS 140, LTFRB
Quick Details
-
Car Fitment:
-
Abarth
-
Resolution:
-
1920*1080
-
Function:
-
RFID/Magnetic Card Reader
-
Warranty:
-
36 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
iStartek
-
Model Number:
-
3G VT900 G
-
Product Name:
-
anti brouilleur sms reset gps tracker tk905i with free software
-
Sensor:
-
Motion Sensor
-
I/O:
-
1RS232+1AD+3IN+2OUTPUT
-
Weight:
-
90g
-
Size:
-
65mm x 61mm x 26mm
-
Backup Battery:
-
500mAh
-
Operating temperature:
-
-20° to 65° C
-
GSM Module:
-
Quectel UC15
-
GSM Band:
-
GSM/UMTS
-
Certificate:
-
ISO9001:2008, CE, CCC, FCC, NBTC, DLT, AIS 140, LTFRB
nb iot VT900 open source rfid software anti brouilleur sms reset gps tracker tk905i with free software
|
|

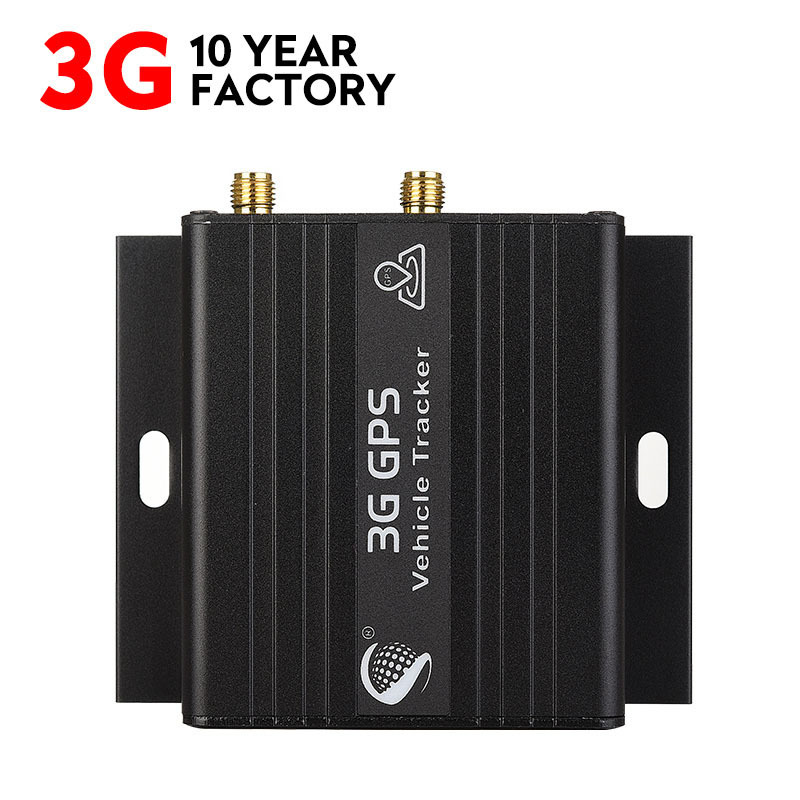

Advanced 3G Vehicle GPS Tracker with RS232 |
|
| VT900 | ||
|
iStartack VT900 is a multifunctional WCDMA 3G GPS Tracker which is designed for fleet management, public transportation management, school bus management, taxi operation management, vehicle insurance company management, rent car management and private car antitheft, etc..VT900 have full functions to cover the normal demands of vehicle tracking. With following optional accessories to extend a wide range of application. |
| Feature |
|
WCDMA & GSM Supporting both 3G and 2G network for a wide range of signal coverage |
|
RS232 Interface Connecting with RFID Reader/Magnetic Card Reader for driver registration and identification |
|||
|
1-Wire Interface 1-wire interface for temperature sensor/ ibutton (customized version) |
Fuel Monitoring 3 types of fuel sensor optional: Ultrasonic fuel sensor, capacitive fuel sensor and resistive fuel sensor |
|||||
|
Remote Cut-off (petrol/power) Compel the vehicle to stop by breaking off the fuel connection |
Driving Behavior Monitoring Harsh acceleration alarm, deceleration alarm, speeding alarm, drunk driving alarm |
|||||
|
8MB Flash Memory Storing GPS coordinates when there is no GPRS connection, or at a specified interval requested |
Smart Alarms Movement alarm, low battery alarm, GPS blind area alarm, power-cut alarm, GPS antenna disconnect alarm and Geo-fencing alarm |
|||||
|
Multiple I/O Interfaces 3 digital inputs, 2 digital outputs, 2 analog input and 3 RS232 port for multi-functional application |
Tracked by: SMS, APP, Web
Reporting location in real time through different interfaces |
| Interface |
| Application |
36
36months warranty for VT600/VT900
Compatible
Compatible with popular tracking softwares, GPSGATE, WIALON, GPS Engine, GPS Server etc.
20% Lower
With stronge supply chain control and effective advertizing cost control, our product price is 20-30% lower than our competitors.
99.5%
12times quality inspection, 36hours aging testing, tracker qualified rate reach 99.5%, the maximum trouble-free working time achieves 43800hours
| Specification: |
|
Items |
Specifications |
|
Product |
Thai DLT RFID Reader Vehicle 3G GPS Tracker,4G Car GPS Tracker Anti Jammer with Fuel Senser and Engine shut off |
|
Power Supply |
9V - 36V / 1.5A |
|
Backup Battery |
500mAh |
|
Normal power consumption |
55mA/h |
|
Dimension |
65mm x 61mm x 26mm |
|
Weight |
90g |
|
Work time |
30 hours in power-saving mode and 7.5 hours in normal mode |
|
Operating temperature |
-20° to 65° C |
|
Humidity |
5% to 95% Non-condensing |
|
Frequency |
VT900- G : UMTS/HSDPA: 850/900/1900 / 2100MHz GSM/GPRS: 850/900/1800/1900MHz |
|
GPS Module |
latest GPS SIRF-Star IV chipset |
|
GPS Sensitivity |
-159Db |
|
GPS Frequency |
L1, 1575.42 MHz |
|
C/A Code |
1.023 MHz chip rate |
|
Channels |
20 channel all-in-view tracking |
|
Position Accuracy |
2.5 meters, 2D RMS |
|
Velocity Accuracy |
0.1 m/s |
|
Time Accuracy |
1 us synchronized to GPS time |
|
Default datum |
WGS-84 |
|
Reacquisition |
0.1 sec., average |
|
Hot start |
1 sec., average |
|
Warm start |
38 sec., average |
|
Cold start |
42 sec., average |
|
Altitude Limit |
18,000 meters (60,000 feet) max |
|
Velocity Limit |
515 meters/second (1000 knots) max |
|
LED |
2 LED lights to show GPS/GSM status |
|
Flash Memory |
8MB |
|
Interface |
3 digital inputs (1 negative, 1 positive triggering and 1 input changeable) 1 analog input 2 output 1 RS232 |
| Standard Accessories: |
Standard Accessories:
| VT900 Tracker | GSM Antenna | GPS Antena |
Power Cable |
|
OEM & ODM Case Study: |
Case 1: customized vehicle tracker to meet Chile bus group's request and installed more than 2000pcs already.
Case 2: As per Indian's Telecom Provider's request, we customized portable tracker to track GSM station's Backup batteries, for an anti-theft purpose.
Case 3: Customized VT900 3G GPS Tracker as per Thailand DLT request, connecting with Magnetic Card Reader to collect driver's ID card data, controlling car engine by card swiping.
| Package and Delivery: |
Package:
1. VT900 Size: 65*61*26mm
2. VT900 Weight: 105g
3. VT900 will be packed by gift box, the size is 133*103*72mm, 350g per ft box
Delivery:
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-5weeks after the receipt of payment.
|
FAQ: |
