Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fangrui
-
Voltage:
-
380V
-
Power:
-
22-75KW
-
Dimension(L*W*H):
-
60*12*5m
-
Weight:
-
12000 kg
-
Product name:
-
Advanced Technolgoy Concrete Cement Pipes Making Machine
-
After Warranty Service:
-
Video Technical Support
Quick Details
-
Pipe Material:
-
Cement
-
Marketing Type:
-
New Product 2024
-
Production Capacity:
-
1000 per month
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fangrui
-
Voltage:
-
380V
-
Power:
-
22-75KW
-
Dimension(L*W*H):
-
60*12*5m
-
Weight:
-
12000 kg
-
Product name:
-
Advanced Technolgoy Concrete Cement Pipes Making Machine
-
After Warranty Service:
-
Video Technical Support
Products Description

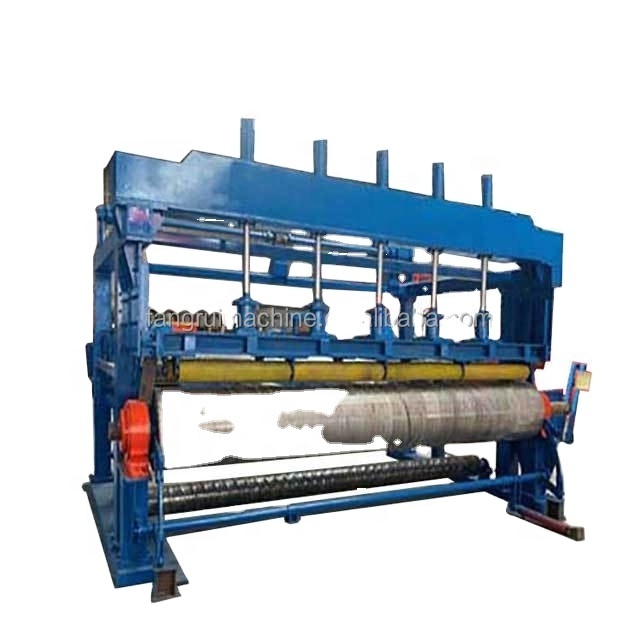

Asbestos pipe equipment
The asbestos pipe machine mainly takes asbestos, stone powder, cement, fiber and so on as the main raw material, USES the copy method or the flow slurry method and through the asbestos pipe machine production line equipment processing into the diameter of the asbestos cement pipe within 300mm, mainly used for asbestos cement cable protection and asbestos cement chimney pipe. How much power is required for asbestos pipe equipment?160 kw.General users need to match the voltage of 200 kilowatts can be.
The working principle of
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Construction works
|
|
Core Components
|
Engine, Bearing, Motor
|
|
Type
|
Cement Pipe Machine
|
|
Name
|
Hollow Electric Concrete Pole Making Machine
|
What equipment is needed to produce asbestos cement pipes?What equipment does the asbestos pipe machine have?The equipment configuration of asbestos pipe machine varies according to the production process. The following is the flow slurry process equipment:Large cans, pulping machine, slurry storage pool, cages, web wheel, chest roller, the pressure group assembly, vacuum pumps, sewage pumps, fresh water pump, guide roller, the host, profile, pipe die, reaming, pipe die automatic transmission, demoulding, cutting machine, v roll lifting, to hard guide roller, to hard chain, to hard spindle, hoisting machine, profile (channel), motor reducer, electrical power distribution cabinets, electrical wiring, pipe processing, section head processing, motor, pipes, profiles, automatic box, and other embedded parts, specific asbestos pipe production line equipment need to be done according to the user's production to reasonable configuration.
There are two main production processes of asbestos pipe machine:
Copying method: 1. Processing of raw materials; 2. Preparation and storage of slurry; 3
Flow slurry method: 1, flow slurry 2, dehydration 3, into a bad 4, wool cleaning adjustment 5, transport device
Asbestos cement control as raw material and proportion of formulation:
Cement 50%-60%, asbestos 8%-15%, glass fiber 2%-3%, stone powder or fly ash 20%-30%
Silicon-calcium materials: fly ash, sepiolite, wollastonite, mica sheet, stone powder
Fiber materials: asbestos, glass fiber, vinylon fiber, pulp, wood pulp
The asbestos cement pipe processed by the asbestos pipe machine is mainly used to do the chimney pipe and cable protection these
two aspects, the following is a brief description of the advantages of the asbestos cement pipe:
1. High temperature resistance, corrosion resistance, acid and alkali resistance, good heat dissipation, no magnetization
2, high strength, high bending load
3. The inner wall is smooth, and it is not easy to harm the protected object.
4. Easy cutting and processing, simple structure and convenient construction.
5. Long service life and low price.
There are two main production processes of asbestos pipe machine:
Copying method: 1. Processing of raw materials; 2. Preparation and storage of slurry; 3
Flow slurry method: 1, flow slurry 2, dehydration 3, into a bad 4, wool cleaning adjustment 5, transport device
Asbestos cement control as raw material and proportion of formulation:
Cement 50%-60%, asbestos 8%-15%, glass fiber 2%-3%, stone powder or fly ash 20%-30%
Silicon-calcium materials: fly ash, sepiolite, wollastonite, mica sheet, stone powder
Fiber materials: asbestos, glass fiber, vinylon fiber, pulp, wood pulp
The asbestos cement pipe processed by the asbestos pipe machine is mainly used to do the chimney pipe and cable protection these
two aspects, the following is a brief description of the advantages of the asbestos cement pipe:
1. High temperature resistance, corrosion resistance, acid and alkali resistance, good heat dissipation, no magnetization
2, high strength, high bending load
3. The inner wall is smooth, and it is not easy to harm the protected object.
4. Easy cutting and processing, simple structure and convenient construction.
5. Long service life and low price.
investment analysis
How much space does it take to start an asbestos pipe factory?The use of fangrui asbestos pipe machine production equipment needs about 4500 square meters, 60-70 meters long, 12-15 meters wide, about 5 meters high, specific contact fangrui technical staff, we for you to design the most suitable asbestos pipe production line and equipment placement.
How much is the production line for asbestos pipe equipment?According to the configuration and automation degree is divided into 650,000 yuan, 950,000 yuan, 1.35 million yuan, the price of this asbestos pipe production line is for reference only, specific can contact fang rui sales consultant, we will according to your specific situation for you to configure the most suitable asbestos pipe production line and complete sets of equipment, and for you to quote the most favorable price.
How much is the production line for asbestos pipe equipment?According to the configuration and automation degree is divided into 650,000 yuan, 950,000 yuan, 1.35 million yuan, the price of this asbestos pipe production line is for reference only, specific can contact fang rui sales consultant, we will according to your specific situation for you to configure the most suitable asbestos pipe production line and complete sets of equipment, and for you to quote the most favorable price.
Why Choose Us
About Us
Fangrui machinery is located in zhitian economic development zone, gongyi city, henan province, covering an area of more than 50 mu, has 20 mu of standardized industrial plants, various large and medium-sized gold processing, riveting and welding, assembly
equipment is sufficient, has dozens of employees, for users to create a new building materials equipment.
equipment is sufficient, has dozens of employees, for users to create a new building materials equipment.
