Quick Details
-
Dimension(L*W*H):
-
3000x1712x2057mm
-
Weight (KG):
-
2500
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Guarantee:
-
One year
-
Color:
-
Optional
-
Feature:
-
valve grinding machine
-
Key word:
-
valve grinding machine
-
Function:
-
Surface grinding
-
Precision:
-
High
-
grinding head power:
-
7.5kw
-
rotate speed:
-
1440r/min
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITECH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000x1712x2057mm
-
Weight (KG):
-
2500
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Guarantee:
-
One year
-
Color:
-
Optional
-
Feature:
-
valve grinding machine
-
Key word:
-
valve grinding machine
-
Function:
-
Surface grinding
-
Precision:
-
High
-
grinding head power:
-
7.5kw
-
rotate speed:
-
1440r/min

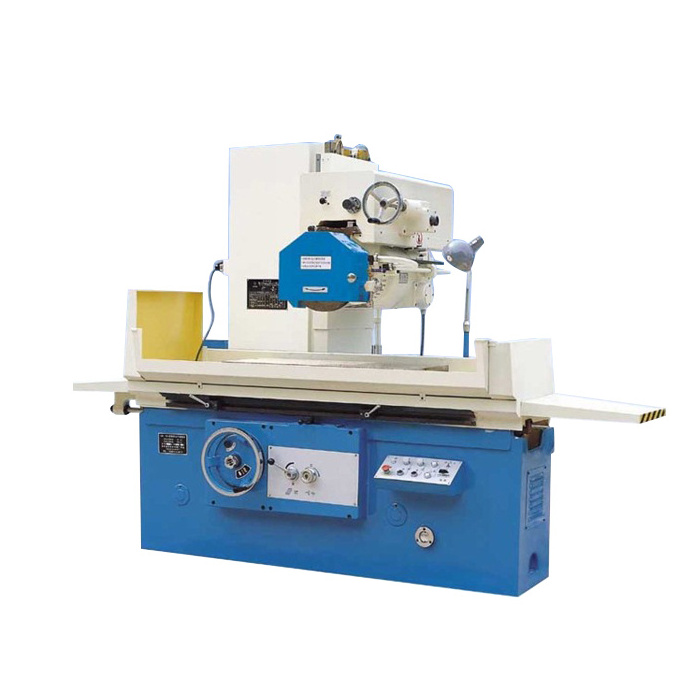

High quality Surface Grinding Machine M7130 valve grinding machine
1. Characteristic
The lengthways moving of the working table and the transverse moving of the grind head are hydraulic transmission, and the velocity modulation is step less.
The machine tool bed adopts the head symmetry design, and the heat-distortion is little. It use the oil returning to heat the bed slide way. The grinder head perpendicular feed is manual, and has the quick elevating mechanism. It can lighten labor intensity and raise work efficiency.
The electrical equipment carries out the new national standard, and increases the electrical equipment interlock safety device. It is very convenient to operate.
The machine tool motion is smooth and steady, the function is reliable, the noise is low and the precision is stable. It is convenient for user to operate.
2 . Main Specifications
|
Specifications |
Unit |
M7130G/F |
|
Worktable |
||
|
Table working surface(WxL) |
mm |
320x1000 |
|
Max. size of work piece to be ground(WxLxH) |
mm |
320x1000x400 |
|
Table longitudinal travel(hydraulic) |
mm |
200-1110 |
|
Speed of table (stepless) |
m/min |
3-25 |
|
Table T-slots width |
mm |
318 |
|
Max. Allowable weight of work piece(Including electromagnetic chuck) |
Kg |
500 |
|
Electro-magnetic chuck size(W*L) |
mm |
300x1000 |
|
Grinding head |
||
|
grinding head cross feed((stepless speed regulating)
|
m/min mm |
0.6-3 3-30/stroke of table |
|
hand wheel grinding head feed vertical |
mm |
0.5 |
|
vertical feed hand wheel min. scale value |
mm |
0.005 |
|
the grinding wheel size (diameter x width x inner diameter) |
mm |
|
|
Motor power |
||
|
Electrical equipment total capacity |
KVA |
14 |
|
grinding head power rotate speed |
kw r/min |
7.5 1440 |
|
Working accuracy |
||
|
Workpiece surface processing to the fundamental plane parallel degree |
mm |
300:0.008 |
|
workpiece surface roughness |
μm |
Ra0.63 |
|
Others |
||
|
Overall dimensions(L*W*H) |
mm |
3000x17122057 |
|
Packing case dimensions(L*W*H) |
cm |
266x167x228 |
|
N.W/G.W |
kg |
About 3200/3700 |
|
STANDARD ACCESSORIES |
||
|
electromagnetic chunk |
grinding wheel |
grinding wheel dresser ( Not attached to the diamond ) |
|
Wheel adoptor |
Grinding wheel balance mandrel |
foundation bolt |
|
Scraping Crumbs Plate |
combination spanner |
|
3 . Detailed pictures
