Quick Details
-
Gross Vehicle Weight:
-
16000, 6001-14000 kg
-
Weight (KG):
-
8000 kg
-
Product name:
-
Tank Water Truck
-
Chassis brand:
-
Sinotruk HOWO
-
Water tank truck type:
-
Water Spraying Tank Truck
-
Name:
-
Sprinkling Water Truck
-
Storage:
-
12000-15000L
-
Type:
-
Water Tanker Fire Truck
-
Application:
-
Road Cleaning
-
Drive type:
-
Left Hand Drive
-
Keyword:
-
Water Truck Tankers
Quick Details
-
Dimensions (L x W x H) (mm):
-
8150x2495x3150mm
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Gross Vehicle Weight:
-
16000, 6001-14000 kg
-
Weight (KG):
-
8000 kg
-
Product name:
-
Tank Water Truck
-
Chassis brand:
-
Sinotruk HOWO
-
Water tank truck type:
-
Water Spraying Tank Truck
-
Name:
-
Sprinkling Water Truck
-
Storage:
-
12000-15000L
-
Type:
-
Water Tanker Fire Truck
-
Application:
-
Road Cleaning
-
Drive type:
-
Left Hand Drive
-
Keyword:
-
Water Truck Tankers

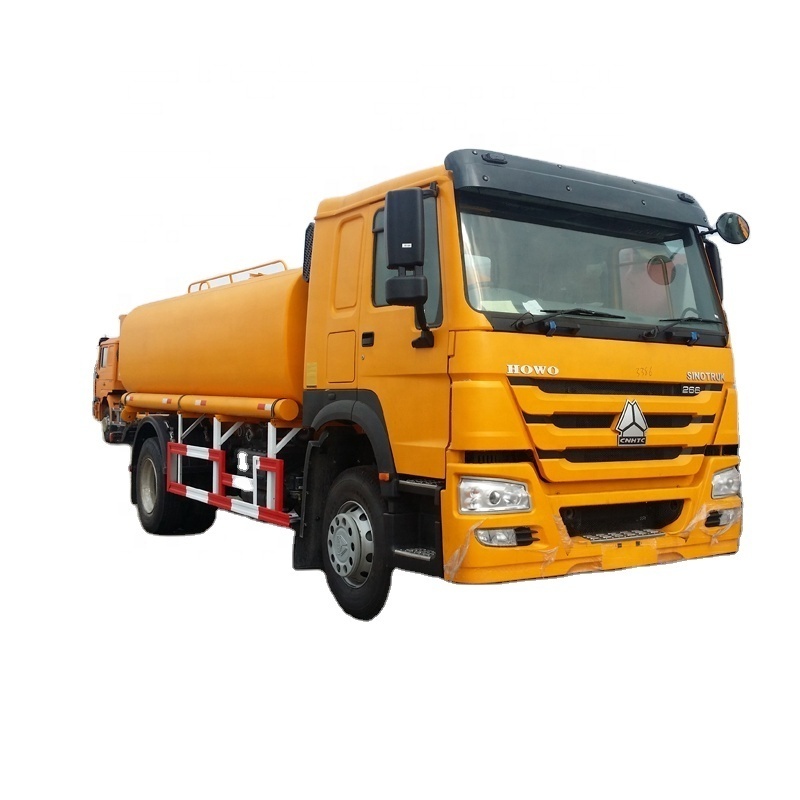

Sinotruk New Design Howo
water sprinkler bowser tanker truck
Our Main Products Heavy Trucks and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price.
.
Product Description
Specification
|
SPECIFICATION
|
|
|
|
|
||||
|
Chassis No
|
|
|
|
ZZ1167M4617C
|
||||
|
Brand
|
|
|
|
SINOTRUK—HOWO
|
||||
|
Driving type
|
|
|
|
Left Hand Driving
|
||||
|
Dimension(Lx W xH)(unloaded)(mm)
|
|
|
|
8500×2496×3048
|
||||
|
Tank Volume(m3)
|
|
|
|
12m3
Tankbody(thickness):5mm,material:carbon steel; sprinkling equipment both in front and in rear; special anti-corrosion treatment |
||||
|
Approaching angle/Departure angle(°)
|
|
|
|
16/15
|
||||
|
Overhang(front/rear) (mm)
|
|
|
|
1500/2200
|
||||
|
Wheel base (mm)
|
|
|
|
4600
|
||||
|
Max speed(km/h)
|
|
|
|
75
|
||||
|
Curb weight(kg)
|
|
|
|
7800
|
||||
|
Total weight(kg)
|
|
|
|
16000
|
||||
|
Engine
|
Specification
|
|
|
water-cooled, four strokes, 6 cylinders in line with water cooling, turbocharged and inter-cooling, directly injection
|
||||
|
|
Engine Model
|
|
|
WD615.62
|
||||
|
|
Fuel type
|
|
|
Diesel
|
||||
|
|
Power
|
|
|
266HP
|
||||
|
|
Emission
|
|
|
EURO II
|
||||
|
Fuel tanker capacity(L)
|
|
|
|
350
|
||||
|
Transmission
|
|
Model
|
|
HW13710，10 forward&2 reverse
|
||||
|
Brake system
|
|
Service brake
|
|
Dual circuit compressed air brake
|
||||
|
|
|
Parking brake
|
|
spring energy, compressed air operating on rear wheels
|
||||
|
Steering system
|
|
Model
|
|
8198
|
||||
|
Front axle
|
|
HF7
|
|
|
||||
|
Rear axle
|
|
ST13
|
|
|
||||
|
Color
|
|
Optional
|
|
|
||||
|
Tyre
|
|
12R22.5 tubeless tires
6+1 spare |
|
|
||||
|
Electrical system
|
|
Battery
|
2X12V/165Ah
|
|
||||
|
|
|
Alternator
|
28V-1500kw
|
|
||||
|
|
|
Starter
|
7.5Kw/24V
|
|
||||
|
Cab
|
|
HOWO76 cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds,
laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|
|
||||
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
