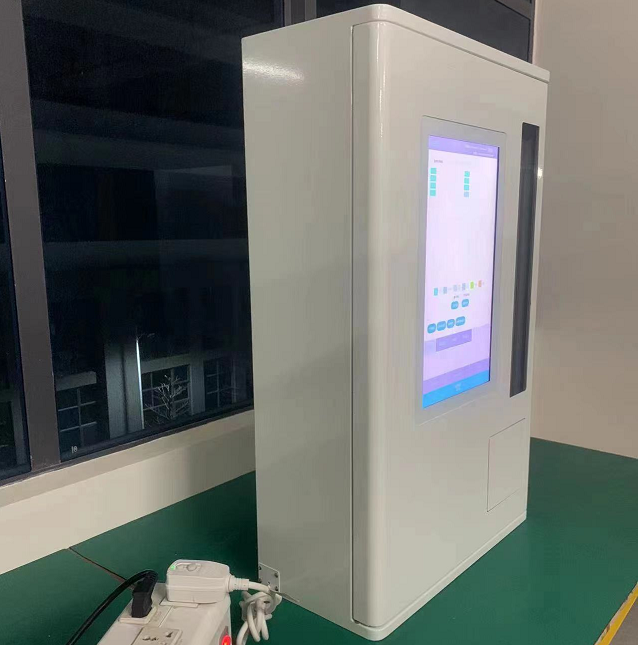

tabletop small mini vending machine with cashless card reader payment system

tabletop small mini vending machine with cashless card reader payment system

FOB Reference Price: Get Latest Price

≥2 Pieces

US $1120

≥50 Pieces

US $1050

≥100 Pieces

US $950

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 3 years

Place of Origin:: Guangdong, China

Brand Name:: 9steps

Power:: 60W

Product name:: tabletop vending machine

Payment System:: card reader

Color:: customized

Application:: 9steps app

Capacity:: 60-80pcs

Weight:: 45kg

Advantage:: 16 years experience

Certificate:: CE FCC ROHS ISO

Touch screen:: 18.5inch capacitive

Optional:: ID verify

Quick Details

Type:: Vending Machines

Dimension:: H92*W50*D22cm

After-sales Service Provided:: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support

Warranty:: 3 years

Place of Origin:: Guangdong, China

Brand Name:: 9steps

Power:: 60W

Product name:: tabletop vending machine

Payment System:: card reader

Color:: customized

Application:: 9steps app

Capacity:: 60-80pcs

Weight:: 45kg

Advantage:: 16 years experience

Certificate:: CE FCC ROHS ISO

Touch screen:: 18.5inch capacitive

Optional:: ID verify

Product Description

Product Name	tabletop small mini vending machine with cashless card reader payment system
Material	15.6-32inch touch screen + metal case+cash machine/cashless machine
Package	exporting carton package,package size 1000660390mm,46kg/pc
General Specification	Motherboard	Android RK3288
		RAM	2G
		Storage Memory	8G
	General Specification	OS	Android /7.1
		Network	Gigabit Network
		Lane	Standard 2 rows * 4columns, 8*10 cargo lanes (adjustable)
		Slot Capacity	About 60pcs-80pcs（adjustable）
		Payment Method	ICT banknotes cash accpeter+ card pos with NFC fucntion
		Subassembly	Cash accepter with bill change fucntion
		Optional	1. Temperature control system: high-efficiency and energy-saving compressor, support timing switch, free control of temperature 2. Printer (optional) 3. Coins and cash modules (optional) 4. Scanner (optional)
Panel Specification	Screen	15.6-32 Inch touch screen
		Screen type	TFT-LCD
		Backlight Type	WLED
		Visual Size	15.6inch 340mm224mm 21.5inch 496293mm
		Resolution	1920*1080
		Contrast	3000:1
		Perspective	H:178°, V:178°
		Brightness	250nits（Non touch），225nits（Touch）
		Touch Technology	Capacitance Touch
		Touch Points	10 Points
		Operating Voltage	DC 5v
		Operating Temperature	0°C ~ 40°C, 20% ~ 80% RH.
		Storage Temperature	-20°C~ 60°C, 10% ~ 95% RH
		Interface Type	VGA , HDMI，USB，LAN
Motherboard Parameters	Processor	RK3288 Quad Corel.8G
		Chipset	HZ cortex-A17
		Extension Interface	Support TF Card expansion
		Display	GPU Mail-T764
		Memory Type	Built-in EMMC，Max 64GB Optional
		USB Interface	2USB HOST,4USB Port
		Output	HDMI Output ,EDP Output, LVDS Output, Audio Output
		Timer Switch	Support
		RTC Clock	Support
Optional	Printers	Support
		Scanner	Support
		Camera	Support
		Others	USB or MDB port

9 steps tabletop small mini vending machine with cashless card reader payment system support wall mounted design or desktop design, wall mount design thickness can be 22 cm or thicker for customized requirement.2 aisles *4 layers*10 slots, capacity max 80pcs commodities, 8 kinds of commodities can be vending in one machine, desktop design need more thicker bottom for stable holding, we don't recommend keyboard operation for small size design vending machine, touch screen operation is our favourite solution, touch screen size 10 inch to 32inch, and it can be bigger for customized design.our payment system supports more than 100 countries and areas in the world, card reader supports credit card, visa, master, token, RFID card, club member card and NFC function.only card reader solution is ok for small size vending machine, bill accepter with coin
change or bill change two solutions is ok but not popular because of the small size, and mostly no refrigeration or elevator for
small size vending machine.
