Quick Details
-
Model Number:
-
A20-S15-S2-C drain valve
-
Brand Name:
-
Tonhe or OEM
-
Actuator color:
-
gray
-
Certificate:
-
CE, Rohs, IP67
-
Body material:
-
stainless steel
-
Color:
-
Customer's Request
-
Torque:
-
2N.M
-
Voltage:
-
AC110V-230V
-
Working current:
-
≤500MA
-
Open/close time:
-
≤7 Sec
-
Seal Material:
-
EPDM & PTFE
-
Product name:
-
Automatic drain control water motorized ball valve with timer
Quick Details
-
Port Size:
-
drain valve 1/2"
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
A20-S15-S2-C drain valve
-
Brand Name:
-
Tonhe or OEM
-
Actuator color:
-
gray
-
Certificate:
-
CE, Rohs, IP67
-
Body material:
-
stainless steel
-
Color:
-
Customer's Request
-
Torque:
-
2N.M
-
Voltage:
-
AC110V-230V
-
Working current:
-
≤500MA
-
Open/close time:
-
≤7 Sec
-
Seal Material:
-
EPDM & PTFE
-
Product name:
-
Automatic drain control water motorized ball valve with timer

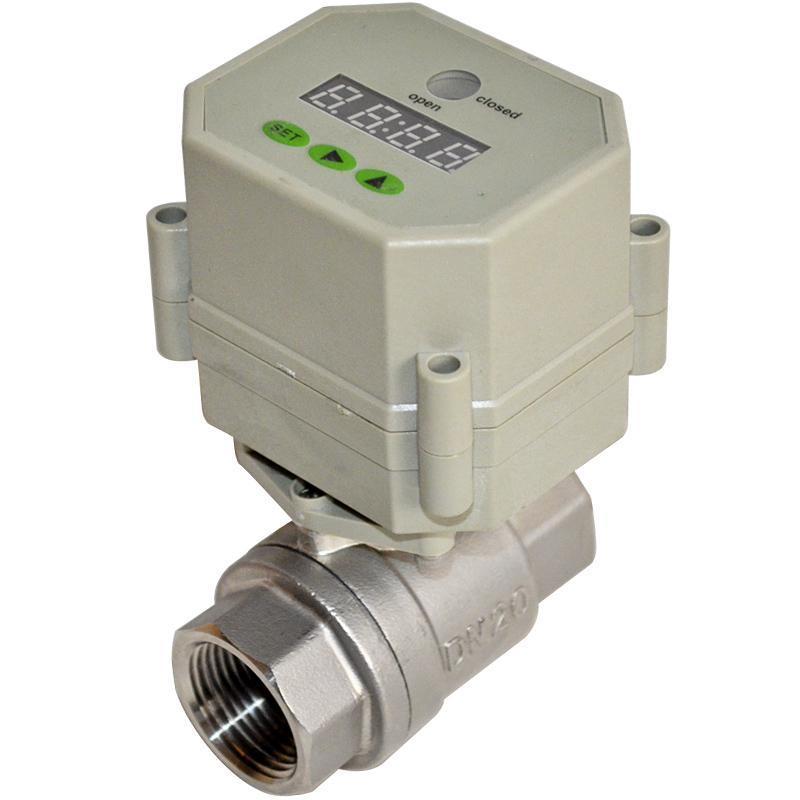

Drain control water motorized ball valve with timer, automatic open and close
| Size |
NPT/BSP 1/2" |
| Material | SS304 |
| Fields of applications | Water |
| Maximum working pressure | 1.0MPa |
| Rated Voltage |
AC110-240V
|
| Packaging | Standard export package or Customized |
| Payment | L/C,D/P,T/T |
| Delivery | Ningbo Port,3-20 days after payment |
Technical Parameters:
| Working current | ≤ 500MA |
| Open/close time | ≤ 7 Sec |
| Life time | 70,000 times |
| Actuator material | Engineering Plastics |
| Sealing material | EPDM & PTFE |
| Actuator rotation | 90° |
| Max. torque force | 4 N.M |
| Cable Length | 0.5m |
| Environment temperature | -15℃~50℃ |
| Liquid temperature | 2℃~90℃ |
| Manual override | No |
| Indicator | Yes |
| Protection class | IP67 |
| Time control range |
0 H : 0M : 0S --99 H 59 M 59 S |
Product a pplication :
Economic Mini Motorized Ball Valve in 2 or 3 way
Timer Control Motorized Ball Valve in Grey or Black housing
Water Leak Alarm & Automatic shut off system
Auto drain & Water cooling system
Electric brewing system
Heating & Cooling HAVC system
Water cooling bleed system
Rain water harvesting
Solar heating,undefloor heating
Irrigation system
Leak detection & water shut off system
Water saving system
And some other automatic control system.....
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, working voltage
3, wire control
4, valve manual override & indicator ( yes or no)
5, actuator cable length
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
TONHEFLOW is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved
CE certification and SS valve approved NSF61 international certification.
we buy a
PICC insurance for our products in 2016
. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
FAQ
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: How about your products and company approved?
A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.
Q: Can I get samples from your factor y?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
