Quick Details
-
Max. Loading Capacity:
-
1000L
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XKJ
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Referring
-
Power (kW):
-
33 kW
-
Marketing Type:
-
New Product 2022
-
Name:
-
Slurry Agitation Tank
-
Product name:
-
Mixing Tank
-
Keywords:
-
Agitation Tank Price
-
Function:
-
Mixing Raw Material
-
Machine Type:
-
Dispersion Blender Mixer Machine
-
Heating method:
-
Electricity Heating
-
Weight:
-
1.0-9.7t
-
Impeller diameter (mm):
-
255-850
-
Power:
-
2.2KW
Quick Details
-
Barrel Volume (L):
-
by order
-
Max. Loading Volume (L):
-
4500 L
-
Range of Spindle Speed(r.p.m):
-
0.58 - 38 r.p.m
-
Max. Loading Capacity:
-
1000L
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XKJ
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Referring
-
Power (kW):
-
33 kW
-
Marketing Type:
-
New Product 2022
-
Name:
-
Slurry Agitation Tank
-
Product name:
-
Mixing Tank
-
Keywords:
-
Agitation Tank Price
-
Function:
-
Mixing Raw Material
-
Machine Type:
-
Dispersion Blender Mixer Machine
-
Heating method:
-
Electricity Heating
-
Weight:
-
1.0-9.7t
-
Impeller diameter (mm):
-
255-850
-
Power:
-
2.2KW
Slurry Agitation Tank, Mixing Tank with Agitator Price
Ⅰ. Brief Introduction
Agitation Tank is mainly used to mix pulp before flotation in the beneficiation process. It can mix drug and pulp intensively. Agitator is suitable to mix pulp with density smaller than 30 % (weight ratio) and size smaller than 1mm. V-belt of motor drives impeller to mix drug and pulp completely. This machine can increase reaction time and strengthen reaction quality of the drug.
Ⅱ. Main Advantages
Agitation Tank is set before the flotation machine to make the reagent and the ore pulp be fully mixed. This machine is suitable for mixing the ore pulp whose density is lower than 3.5 and the flotation reagents whose density is lower than 30%.
Ⅲ. Working Principle
When the machine works, under the rotation of the impeller, the ore pulp and the reagents will have big and small circulation, and they will be evenly mixed, and the mixed suspension liquid will be discharged from the overflow port.
IV. Specification
| Model | Tank inner diameter(mm) | Tank inner height(mm) | Effective volume(m3) | Impeller RPM(r/min) | Impeller diameter(mm) | Motor model | Motor Power(kw) | Dimension (LxWxH) mm | Weight(t) |
| XB-1000 | 1000 | 1000 | 0.58 | 530 | 255 | Y100L-6 | 1.5 | 1173x1138x1491 | 1.0 |
| XB-1200 | 1200 | 1200 | 1.4 | 340 | 400 | Y132S-6 | 2.2 | 1354x1310x1742 | 1.1 |
| XB-1500 | 1500 | 1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 1656x1572x2171 | 1.2 |
| XB-2000 | 2000 | 2000 | 5.6 | 290 | 550 | Y132M2-6 | 5.5 | 2380x2162x2850 | 2.3 |
| XB-2500 | 2500 | 2500 | 11.2 | 280 | 650 | Y180L-6 | 15 | 3036x2716x3543 | 3.4 |
| XB-3000 | 3000 | 3000 | 19.1 | 210 | 700 | Y255S-8 | 18.5 | 3604x3216x4250 | 4.9 |
| XB-3550 | 3550 | 3550 | 30 | 230 | 850 | Y225M-8 | 22 | 3940x3766x5386 | 7.3 |
| XB-4500 | 4550 | 4500 | 38 | 122 | 1000 | Y280M-8 | 45 | 4720x4800x6600 | 9.7 |

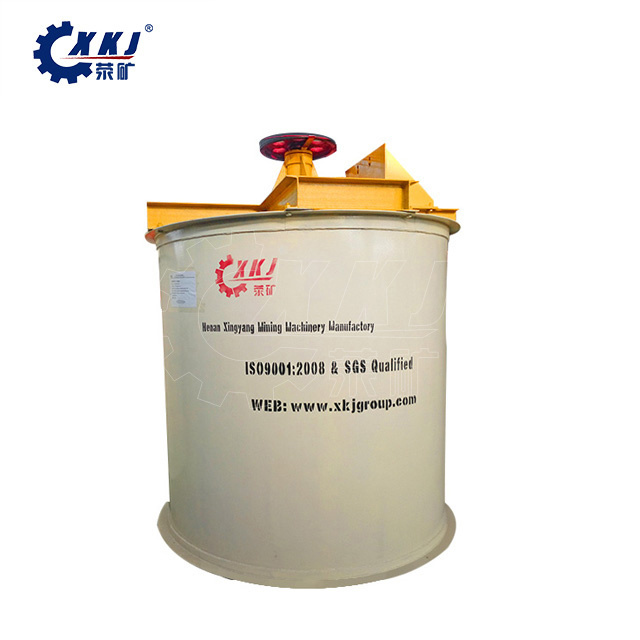

V. Agitation Tank Display
Application--- Flotation Separating Process
Packaging Detail:
1. small parts are wooden box package.
2. main engine nude packing, container, or upon customers requirement.
Delivery Detail: within 30 days
Ports: Qingdao, Shanghai, Tianjin and other ports.
