- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Electronic Connectors,Terminal
-
Width:
-
2mm - 400mm
-
Grade:
-
C5100 / C5190 / C5210 etc.
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

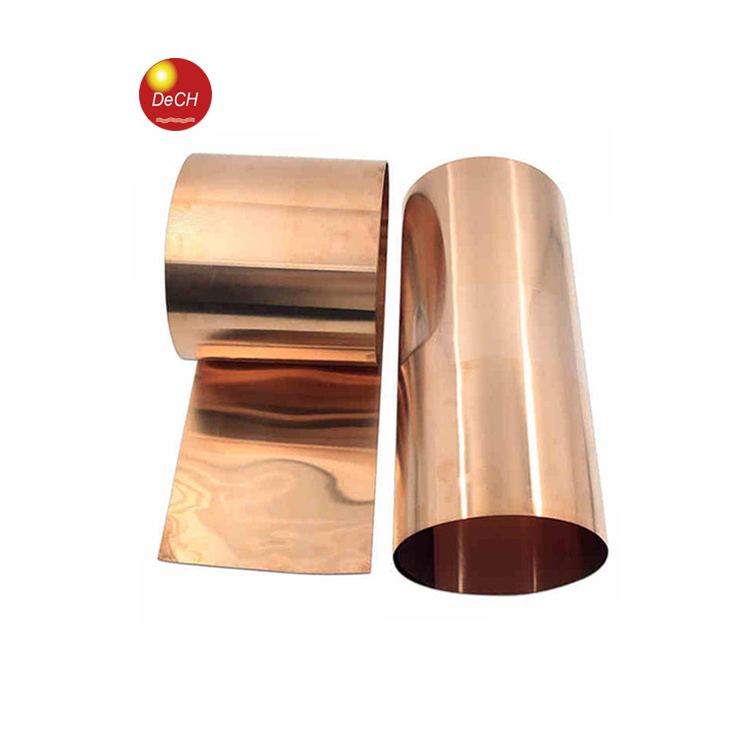

C5100 C5191 C5210 Phosphor Bronze Strip Coil Foil
-
Type:
-
Strip / Coil / Foil / Plate / Sheet
-
Hardness:
-
Soft,1/2H,H,EH,SH,SEH
-
Standard:
-
JIS ASTM DIN EN ISO
-
Surface:
-
Bright,Mill,Mirror,Brush,Hair Line.etc.
-
Certificate:
-
Mill Cert ROHS ISO SGS TUV BV
-
Size:
-
Any Size Can be Customised
-
Trade Term:
-
EXW DAP FOB CIF DDU DDP
-
Payment Term:
-
T/T L/C West Union Trade Assurance etc
-
Sample:
-
Paid Samples
Quick Details
-
Material:
-
Phosphor Bronze
-
Cu (Min):
-
93%
-
Alloy Or Not:
-
Is Alloy
-
Application:
-
Electronic Connectors,Terminal
-
Width:
-
2mm - 400mm
-
Grade:
-
C5100 / C5190 / C5210 etc.
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
C5100 C5191 C5210 Phosphor Bronze Strip Coil Foil
-
Type:
-
Strip / Coil / Foil / Plate / Sheet
-
Hardness:
-
Soft,1/2H,H,EH,SH,SEH
-
Standard:
-
JIS ASTM DIN EN ISO
-
Surface:
-
Bright,Mill,Mirror,Brush,Hair Line.etc.
-
Certificate:
-
Mill Cert ROHS ISO SGS TUV BV
-
Size:
-
Any Size Can be Customised
-
Trade Term:
-
EXW DAP FOB CIF DDU DDP
-
Payment Term:
-
T/T L/C West Union Trade Assurance etc
-
Sample:
-
Paid Samples
Details Show
Real Take
Relevant Property
| Standard | Chemical Composition | ||||||||
| JIS | EN | ASTM | AFNOR | Cu + Sn + P | Fe | Pb | Zn | Sn | P |
| C5191 | CuSn6 | C51900 | CuSn6P | > 99.5 | < 0.10 | < 0.02 | < 0.20 | 5.5 - 7.0 | 0.03 - 0.35 |
| C5210 | CuSn8 | C52100 | CuSn9P | > 99,7 | < 0.10 | < 0.02 | < 0.20 | 7.0 - 9.0 | 0.03 - 0.35 |
| Alloy | Temper | Tensile Strength (Mpa) | Elongation (%) | Vickers Hardness (HV) |
| C5191 | O | ≥315 | ≥42 | / |
| 1/4H | 390-510 | ≥35 | 100-160 | |
| 1/2H | 490-610 | ≥20 | 150-205 | |
| H | 590-685 | ≥8 | 180-230 | |
| EH | 635-720 | ≥5 | 200-240 | |
| SH | ≥690 | / | ≥210 | |
| C5210 | 1/2H | 470-610 | ≥27 | 140-205 |
| H | 590-705 | ≥20 | 185-235 | |
| EH | 685-785 | ≥11 | 210-260 | |
| SH | 735-835 | ≥9 | 230-270 | |
| SEH | 770-885 | ≥5 | 245-285 |
| Thickness x Width | Thickness x Width | Thickness x Width | Thickness x Width | Thickness x Width |
| 0.02mm x 100mm | 0.03mm x 100mm | 0.05mm x 200mm | 0.06mm x 200mm |
0.08 mm x 300mm |
| 0.1mm x 400mm | 0.15mm x 400mm | 0.2mm x 400mm | 0.25mm x 400mm | 0.3mm x 400mm |
| 0.4mm x 400mm | 0.5mm x 400mm | 0.6mm x 400mm | 0.8mm x 400mm | 1.0mm x 400mm |
| We Can Customize Any Size, Please Contact US. | ||||
