Auto Parts Knuckle Aluminum Low Pressure Cast Machine for Die Casting

Auto Parts Knuckle Aluminum Low Pressure Cast Machine for Die Casting

FOB Reference Price: Get Latest Price

≥1 Sets

US $45000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380/440

Power:: 60.5 kw

Dimension(L*W*H):: 5720*3220*3170 mm

Applicable Industries:: Auto parts

Weight (KG):: 15000

Capacity:: 500 kg holding furnace

Mold:: Pemanent mold, sand mold

Application:: High quality aluminum casting production

Casting process:: Low pressure casting

Operation:: PLC+HMI

Mould cooling:: 10 routes

After Warranty Service:: Online, on site service

Certification:: CE/ISO 9001:2015

Quick Details

Place of Origin:: Jiangsu, China

Machine Type:: low pressure permanent mold casting

Brand Name:: BOQIAO

Voltage:: 380/440

Power:: 60.5 kw

Dimension(L*W*H):: 5720*3220*3170 mm

Applicable Industries:: Auto parts

Weight (KG):: 15000

Capacity:: 500 kg holding furnace

Mold:: Pemanent mold, sand mold

Application:: High quality aluminum casting production

Casting process:: Low pressure casting

Operation:: PLC+HMI

Mould cooling:: 10 routes

After Warranty Service:: Online, on site service

Certification:: CE/ISO 9001:2015

Product Overview

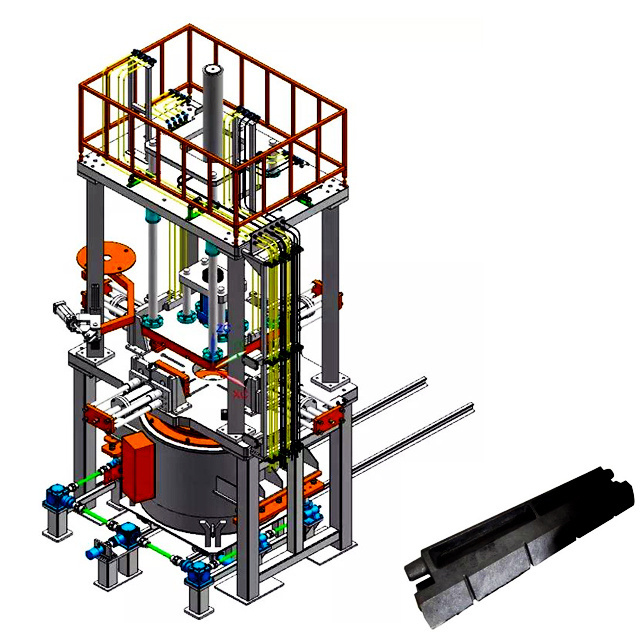

BQ-500PSWG Auto Parts Knuckle Aluminum Low Pressure Cast Machine for Die Casting

Specially for medium and large aluminum casting, like agriculture machine parts, auto parts and other industry parts

FEATURES AT A GLANCE

1. 500kg, 800kg crucible type low pressure casting machine

2. Servo motor, high efficiecy and energy saving

3. Siemens PLC+HMI, high automation

4. High precision liquid surface pressure system, high qualified rate

5.Full hydraulic drive, stable and efficient

6. 16 routes cooling, meet for most aluminum casting production, wide product practicability

7. Standard machine, short delivery time and good after-sale service

PRODUCT SPECIFICATIONS

Parameter	Unit	BQ-200PWSG	BQ-500PWSG	BQ-800PWSG
Machine body
Fixed columns clearance	mm	1050*750	1650*1000	1750*1250
Max mold installation size	mm	1000*900	1100*1050	1400*1400
Distance between mobile and fixed platen	mm	450-900	450-1350	550-1800
Side cylinder stroke	mm	250	300	450
Opening force of upper cylinder	KN	122	177	245
Closing force of upper cylinder	KN	94	138	305
Opening force of side cylinder	KN	59	94	165
Closing force of side cylinder	KN	78	122	212
Ejection force	KN	122	177	305
Holding furnace
Furnace type		crucible	crucible or refractory
Capacity	KG	300	500	800
Power rate	KW	20	30	40
Temperature control accuracy	±℃	2	2-5
Furnace pressure	Bar	Max. 1.5 bar
Hydraulic pump station system
Motor type (Regulation or Servo)		optional
Motor power rate	KW	5.5	18.5	22
Hydraulic pressure	Bar	Min. 80 bar -max. 120 bar
Pump type (gear or plunger)		Optional
Cooling type		Air	Air or water	Water
Cooling water consumption	L/Min		40	50
Operation control system
PLC,HMI unit		Siemens
Operation method		Automatic
Main power voltage (380V 60HZ,400V 50HZ)	V,HZ	Optional
Auxiliary power voltage	V,HZ	24
Control cabinet cooling type		Fan	Fan or air conditioning

PRODUCT CONFIGURATION

Siemens PLC+HMI

Japan YUKEN electromagnetic valve

Japan Shimadzu oil pump

Successful Project

Project in China

Project in EGYPT

Project in Russia

SIMILAR PRODUCTS

FAQ

Q:Are you manufacturer or trade company?
A:We are manufacturer

Q.What kind of products can be made with your machine?
A:Theoretically,our machine can produce the all aluminum casting with thickness over 4mm.But it is better to ensure after seeing
drawings or samples.

Q:How to ensure that we can produce qualified products by your machine?
A:The solution is that firstly we check your product drawing or samples.If the product is ok,you pay 50% of mold price,we make
mold for you.When the mold is made out,we try the mold and get the new samples.If the samples is qualified,you buy our machine.If
no,we pay back you the all money.

Q:What is your delivery time?
A:Commonly,we deliver within 60 days.

Q:Can i visit your factory?
A:Sure,welcome you.
Our address:Nanjing city,Jiangsu Province,China.
Nearest airport:Nanjing LuKou International Airport
