Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CENTRY
-
P/N:
-
C070WSH01HH
-
Size:
-
7 Inch
-
Product Name:
-
TFT Module Screen
-
Resolution:
-
1024*600
-
Interface:
-
RGB
-
Display mode:
-
Normal Black
-
Brightness:
-
450cd/m2
-
Viewing Angle:
-
IPS
-
PIN:
-
50 PIN
Quick Details
-
Type:
-
TFT display screen
-
Display Size:
-
7.0"
-
Supplier Type:
-
manufacturer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CENTRY
-
P/N:
-
C070WSH01HH
-
Size:
-
7 Inch
-
Product Name:
-
TFT Module Screen
-
Resolution:
-
1024*600
-
Interface:
-
RGB
-
Display mode:
-
Normal Black
-
Brightness:
-
450cd/m2
-
Viewing Angle:
-
IPS
-
PIN:
-
50 PIN
Ultra thin IPS full view for the elevator industry LCD Liquid Crystal display
Product Parameter
| P/N | C070WSH01HH | |
| Size | 7 inch | |
| Resolution | 1024(Horizontal)*600(Vertical) | |
| Pixel Pitch | 0.1506*0.1432 | |
| Display Mode | Normally black | |
| Viewing | All | |
| Viewing Direction | 85 | |
| Back Brightness | 450 | |
| Contrast | 800 | |
| LED Numbers | 27 LEDS | |
| Interface | 24 BIT RGB | |
| Driver IC | HX8282A11+HX8696 | |
| PIN | 50 | |
| LCM (W x H x D) (mm) | 163.8*97.0*2.6 | |
| Active Area(mm) | 154.21*85.92 | |
| With /Without TP | Without TP | |
| Operation Temperature | -20-70 | |
| Storage Temperature | -30-80 | |

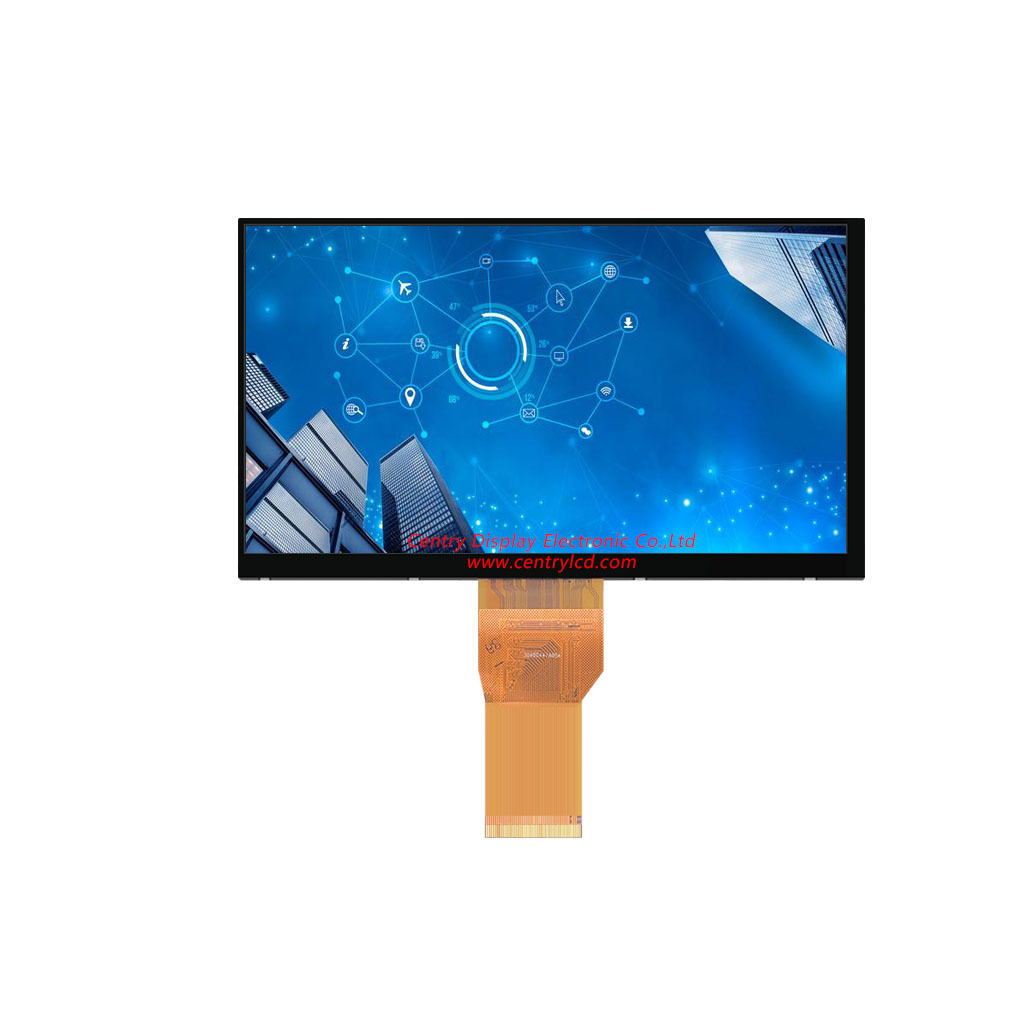

Product Pictures
Click here return to homepage
Centry Display Electronic Co., Ltd is a professional manfacturer of TFT LCD module, RTP, CTP, HMI human-machine interface control panel, display overall solution products, integrated R&D, manufacturing and sales together.
Our main products TFT LCD display module include small and medium size from 1.77" to 12.1". Some have features of IPS full-viewing, high resolution, high brightness, transflective, sun light readable, etc. B/L, FPC,RTP,CTP can be customized according to requirements.
More information please contact us directly or browse our website at www.centrylcd.com. Thanks for your kind attention.
