Quick Details
-
Power:
-
7kw/3000r/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WALKER
-
Maximum Digging Height:
-
2610mm
-
Maximum Digging Depth:
-
1750mm
-
Machine Weight:
-
1000 kg
-
Max Digging Radius:
-
2850mm
-
Marketing Type:
-
New Product 2023
-
Optional Engine:
-
BRIGGS&STRATTON,YANMAR
-
Chassis Width:
-
896mm
-
TRACK WIDTH:
-
180mm
-
Track height:
-
320mm
-
wheel base:
-
910mm
-
bucket width:
-
380mm
-
Color:
-
Customers Requirements
-
Main pump:
-
Tianjin
-
overall dimension:
-
2775 x 930 x 2219 mm
-
travel speed:
-
1.5KM/h
Quick Details
-
Operating Weight:
-
1ton
-
Bucket capacity:
-
0.025 m3
-
Engine Brand:
-
KOOP192F
-
Power:
-
7kw/3000r/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WALKER
-
Maximum Digging Height:
-
2610mm
-
Maximum Digging Depth:
-
1750mm
-
Machine Weight:
-
1000 kg
-
Max Digging Radius:
-
2850mm
-
Marketing Type:
-
New Product 2023
-
Optional Engine:
-
BRIGGS&STRATTON,YANMAR
-
Chassis Width:
-
896mm
-
TRACK WIDTH:
-
180mm
-
Track height:
-
320mm
-
wheel base:
-
910mm
-
bucket width:
-
380mm
-
Color:
-
Customers Requirements
-
Main pump:
-
Tianjin
-
overall dimension:
-
2775 x 930 x 2219 mm
-
travel speed:
-
1.5KM/h
Products Description

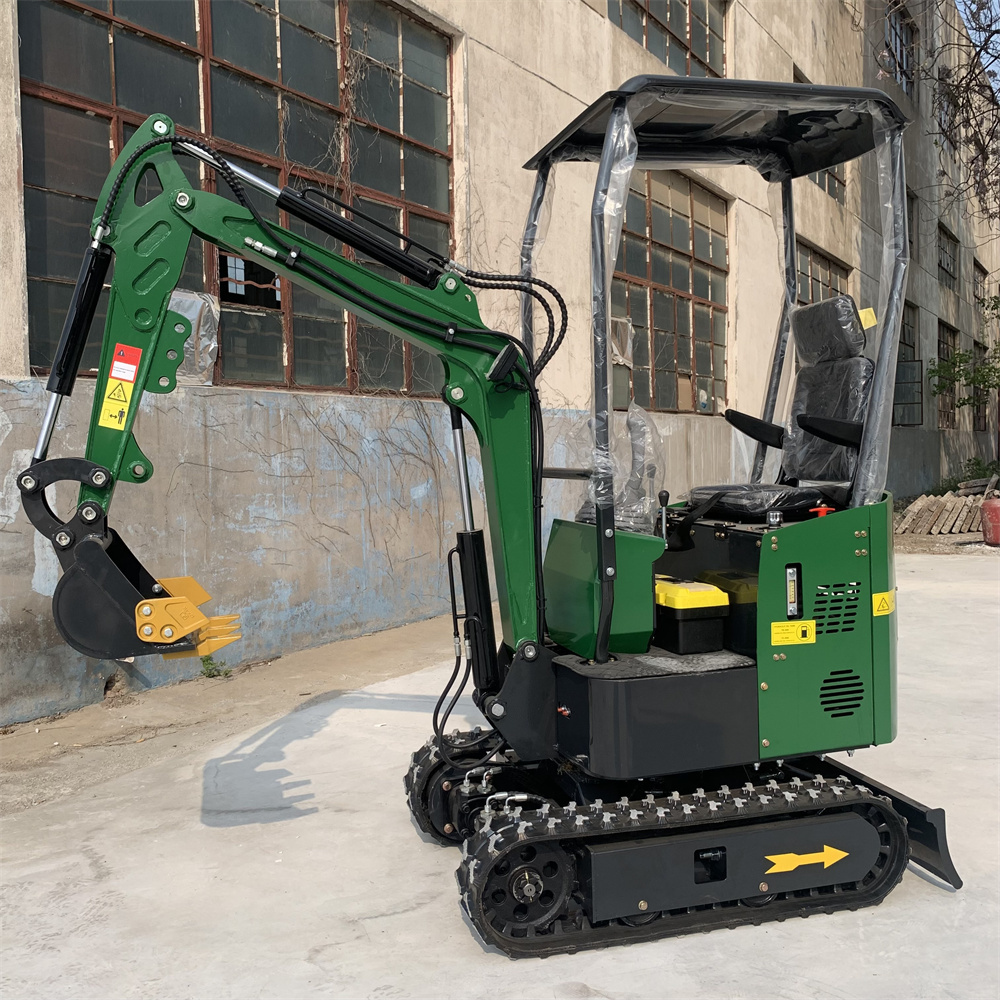

WK10 MINI EXCAVATOR
KOOP Euro 5 engine;
Front console, mechanical
Rubber track
Cylinder baffle
Warning light
Big arm side swing
Upgraded comfortable seat
Four legs roof
Product Photograph
Details Images
Rubber track
Strong and durable rubber track, width 180mm
Bucket
High quality bucket 400mm
Front console
Seat front console with sensitive handle
Comfortable seat
Humanized design, more comfortable, retractable
Swing boom
Added features, not standard
Toolbox
The machine comes standard with a toolbox
Product Paramenters
|
Model
|
WK10
|
|
Working weight
|
1000KG
|
|
Engine
|
KOOP /Changchai/Briggs & Stratton gasoline engine
|
|
Rated power
|
7KW
|
|
Working pressure
|
16MPa
|
|
Travel speed
|
2.2KM/h
|
|
Turning speed
|
13 r/min
|
|
Bucket capacity
|
0.025m³
|
|
Fuel tank volume
|
10.2L
|
|
Climbing ability
|
30°
|
|
Bucket rod digging force
|
4.6KN
|
|
Bucket digging force
|
7.2KN
|
|
Overall dimension
|
2876*850*1535/2200mm
|
|
Minimum ground clearance
|
132mm
|
|
Track length
|
1233mm
|
|
Track width
|
840mm
|
|
Track plate width
|
180mm
|
|
Maximum.digging height
|
2550mm
|
|
Maximum unloading height
|
1687mm
|
|
Maximum digging depth
|
1650mm
|
|
Maximum digging distance
|
3077
|
Product packaging
After-sales service
The core parts of the machine are guaranteed for one year, and the wearing parts are guaranteed for three months.
Length of service: Lifetime
Shandong Gongwo Machinery Co., Ltd. has been engaged in the production of excavators for more than ten years, from the design of the machine, the production of structural parts, the assembly of the machine, testing, packaging and other whole process. Provide guarantee for product quality.
