Quick Details
-
Row Distance(mm):
-
500 - 700 mm
-
Place of Origin:
-
China
-
Brand Name:
-
NEWINDU
-
Dimension(L*W*H):
-
5160*2750*2750 mm
-
Weight:
-
8.6 KG
-
Marketing Type:
-
New
-
Applicable Industries:
-
Agriculture, Farm
-
Rated speed(rpm):
-
2400
-
Min ground clearance(mm):
-
325mm
-
Theoretical traveling speed(km/h):
-
Low speed 0-3.96,Standard 0-5.14, Walk speed 0-7.37
-
Header width(mm):
-
2000
Quick Details
-
Number of Rows:
-
2
-
Working Width(mm):
-
2000 mm
-
Tractor Power(HP):
-
50 - 100 HP
-
Row Distance(mm):
-
500 - 700 mm
-
Place of Origin:
-
China
-
Brand Name:
-
NEWINDU
-
Dimension(L*W*H):
-
5160*2750*2750 mm
-
Weight:
-
8.6 KG
-
Marketing Type:
-
New
-
Applicable Industries:
-
Agriculture, Farm
-
Rated speed(rpm):
-
2400
-
Min ground clearance(mm):
-
325mm
-
Theoretical traveling speed(km/h):
-
Low speed 0-3.96,Standard 0-5.14, Walk speed 0-7.37
-
Header width(mm):
-
2000

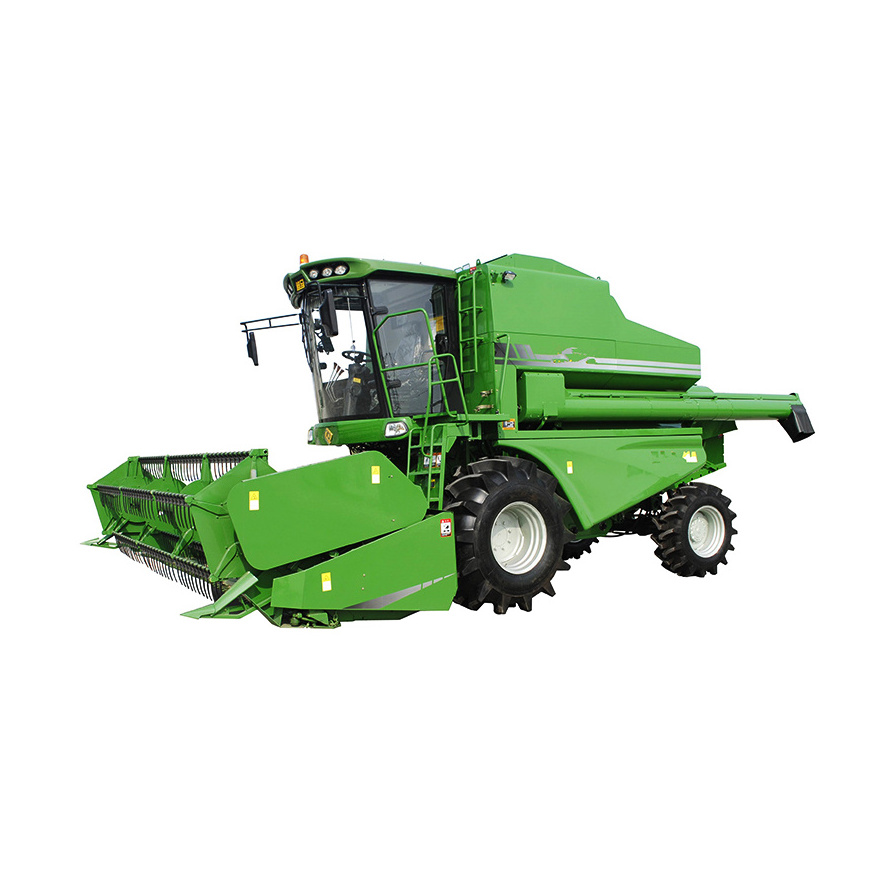

50HP Powerful Systems Combine Harvester Machine For Rice Harvesters GF28
Contact way
Sales Manager
Mark Li
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat: +86-13764758759
Web: www.newindu.com
Mark Li
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat: +86-13764758759
Web: www.newindu.com
Products Description
For Farm Use Machine.
Product Paramenters
|
Lov ol Full Feeding Combine Hrvester AF88G
|
|
|
|
|||
|
Product Model
|
|
|
GF28
|
|||
|
Overall dimensions
|
Length(mm)
|
|
5160
|
|||
|
|
Width(mm)
|
|
2750
|
|||
|
|
Height(mm)
|
|
2750
|
|||
|
Weight(kg)
|
|
|
2970
|
|||
|
Engine
|
Model
|
|
Dac hai-DE UT ZCA498Z-09T2/01
|
|||
|
|
Structure type
|
|
Four-stroke,water-cooled,
turbocharged diesel engine |
|||
|
|
Rated power(kW)
|
|
65/88HP
|
|||
|
|
Rated speed(rpm)
|
|
2400
|
|||
|
|
Fuel type
|
|
Diesel(0#)
|
|||
|
|
Fuel tank(L)
|
|
95
|
|||
|
Walking part
|
Track
|
Specification link
|
500*90*51
|
|||
|
|
Min ground clearance(mm)
|
|
325
|
|||
|
|
Gearbox type
|
|
HST
|
|||
|
|
Transmission type
|
|
(HST+3-gear) continuously
variable-speed |
|||
|
|
Theoretical traveling speed(km/h)
|
|
Low speed 0-3.96,Standard 0-5.14,
Walk speed 0-7.37 |
|||
|
Header system
|
Header width(mm)
|
|
2000
|
|||
|
Threshing part
|
Threshing type
|
|
Vertical type axial-flow
bar tooth type |
|||
|
|
Threshing cylinder
|
Outer diameter(mm)
|
φ620*1790
|
|||
|
|
|
Rotate speed(r/min)
|
580
|
|||
|
Grain unloading part
|
Grain tank capacity(L)
|
|
1400
|
|||
|
|
Unloading grain rotation range(Degree)
|
|
270
|
|||
|
|
Unloading grain height range(mm)
|
|
920-4200
|
|||
|
Electrolyte and others
|
Battery
|
Voltage(V)
|
12
|
|||
|
|
Starting relay
|
Rated current(A)
|
50
|
|||
|
|
|
Vilotage(V)
|
12
|
|||
|
|
Hydulic oil tank volume
|
|
21
|
|||
|
Hourly production(hm2/h)(Vertical dry field crops environment)
|
|
|
0.3-0.7
|
|||
