Quick Details
-
Color:
-
Purple
-
Material:
-
Hydrophilic PVDF
-
Diameter:
-
33mm
-
Pore Size:
-
0.45um
-
Application:
-
Lab Usage
-
Certificate:
-
ISO9001
-
Type:
-
Lure lock
-
MOQ:
-
2 boxes
-
OEM:
-
Available
-
Packing:
-
50pcs/box
Quick Details
-
Brand Name:
-
GREEN MALL
-
Model Number:
-
PVDF sterile
-
Place of Origin:
-
Jiangsu, China
-
Color:
-
Purple
-
Material:
-
Hydrophilic PVDF
-
Diameter:
-
33mm
-
Pore Size:
-
0.45um
-
Application:
-
Lab Usage
-
Certificate:
-
ISO9001
-
Type:
-
Lure lock
-
MOQ:
-
2 boxes
-
OEM:
-
Available
-
Packing:
-
50pcs/box
HOT SELLING
Sterile Membrane Filter
Diameter: 47mm or 50mm
Pore Size: 0.22/0.45/0.8 μm
Material: MCE, CA, CN,PES, PVDF
Sterile: By gamma Radiation
Grid: plain white or gridded
Package: 200pcs/pack
Centrifugal Tube
Size: 0.5ml,1.5ml 2ml,15ml,50ml
Bottom: Conical or selfstand
Material: PP
Package: Bulk/rack
Sterile : by EO
Sterile Syringe Filter
Diameter: 13mm, 25mm, 33mm
Pore Size: 0.1/0.22/0.45/0.8μm
Media: PES, PTFE, PVDF, Nylon,MCE,CA
Sterile by Gamma radiation
OEM available
Products Description
About PVDF membrane filter
Hydrophilic PVDF (Polyvinylidene Fluoride) membranes are commonly used in a variety of general filtration and sample preparation applications. For sterile and general filtration applications, our unique, modified hydrophilic PVDF (Polyvinylidene Fluoride) membrane with ultra low binding properties, broad chemical and temperature resistance, and high flow rates is an excellent choice. We recommend using our hydrophilic PVDF in applications such as multi-plexed bead-based assays, the filtration of dilute protein samples, cold and hot water for injection (WFI), chemicals, aggressive solvents and sanitizing agents. For the filtration and degassing of the solvent-based mobile phases, our portfolio includes an HPLC-certified material available in 0.2 and 0.45um, which provides assurance that the filter material will not add artifacts or extractables to the samples for analysis. The chemical compatibility of the membrane includes aggressive acids and alcohols making it useful for the filtration of both aggressive and non-aggressive solvent-based mobile phases. We do not recommend using this membrane for the filtration of acetone, DMSO, or based>6N.
HOW TO USE
Technical Data
|
Specification
|
13mm
|
25mm
|
33mm
|
||
|
|
|
|
|
||
|
Filtration Area
|
0.8 cm2
|
3.8 cm2
|
6.5 cm2
|
||
|
Holdup Volume
|
15 μl
|
125 ul
|
150 ul
|
||
|
Volume Throughput (ml)
|
10
|
100
|
200
|
||
|
Inlet/Outlet
|
Female luer Lock/ Male Luer Slip
|
|
|
||
|
Maximum Operation Temperature(℃)
|
100
|
|
|
||
|
Bursting Pressure
|
15 bar
|
10 bar
|
10 bar
|
||
How to choose
Diameter
Sample volume ＜1ml , choose
4mm
Sample volume＜10ml, choose
13mm
Sample volume＜100ml, choose 25mm
Sample volume＜200ml, choose
33mm
Pore size
HPLC Column partical size less than 3μm，choose 0.22μm
HPC Column partical size less than 5μm，choose 0.45μm
Media
Check the following chart to choose your most suitable membrane
Sa
Ordering Information
|
Item No.
|
Product Name
|
Dia(mm)
|
Pore Size (μm)
|
Media
|
Package
|
|
RSF25VS1BS
|
Sterile Syringe Filter
|
25
|
0.45
|
Hydrophobic PVDF
|
50pcs/Box
|
|
RSF25VS2BS
|
Sterile Syringe Filter
|
25
|
0.22
|
Hydrophobic PVDF
|
50pcs/Box
|
|
RSF25VQ1BS
|
Sterile Syringe Filter
|
25
|
0.45
|
Hydrophilic PVDF
|
50pcs/Box
|
|
RSF25VQ2BS
|
Sterile Syringe Filter
|
25
|
0.22
|
Hydrophilic PVDF
|
50pcs/Box
|
|
RSF33VQ1BS
|
Sterile Syringe Filter
|
33
|
0.45
|
Hydrophilic PVDF
|
50pcs/Box
|
|
RSF33VQ2BS
|
Sterile Syringe Filter
|
33
|
0.22
|
Hydrophilic PVDF
|
50pcs/Box
|

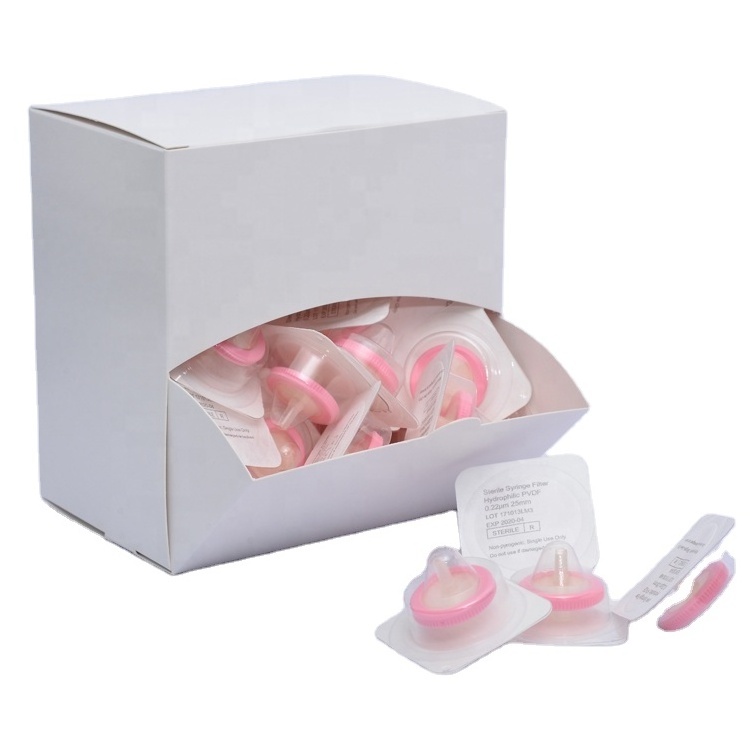

Product packaging
