Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yinglian
-
Dimension(L*W*H):
-
93*46*52cm
-
Weight:
-
37KG, 26kg
-
Working Temperature Range:
-
37 ℃
-
Certification:
-
ROHS
-
Name:
-
poultry heater
-
Usage:
-
Brooding heating system
-
Material:
-
Metal
-
Application:
-
poultry farm, pig farm
-
MOQ:
-
1 Pcs
-
Packaging:
-
Carton Box
-
Power:
-
20kw/30kw
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Diesel
-
Voltage:
-
220V/50Hz
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yinglian
-
Dimension(L*W*H):
-
93*46*52cm
-
Weight:
-
37KG, 26kg
-
Working Temperature Range:
-
37 ℃
-
Certification:
-
ROHS
-
Name:
-
poultry heater
-
Usage:
-
Brooding heating system
-
Material:
-
Metal
-
Application:
-
poultry farm, pig farm
-
MOQ:
-
1 Pcs
-
Packaging:
-
Carton Box
-
Power:
-
20kw/30kw

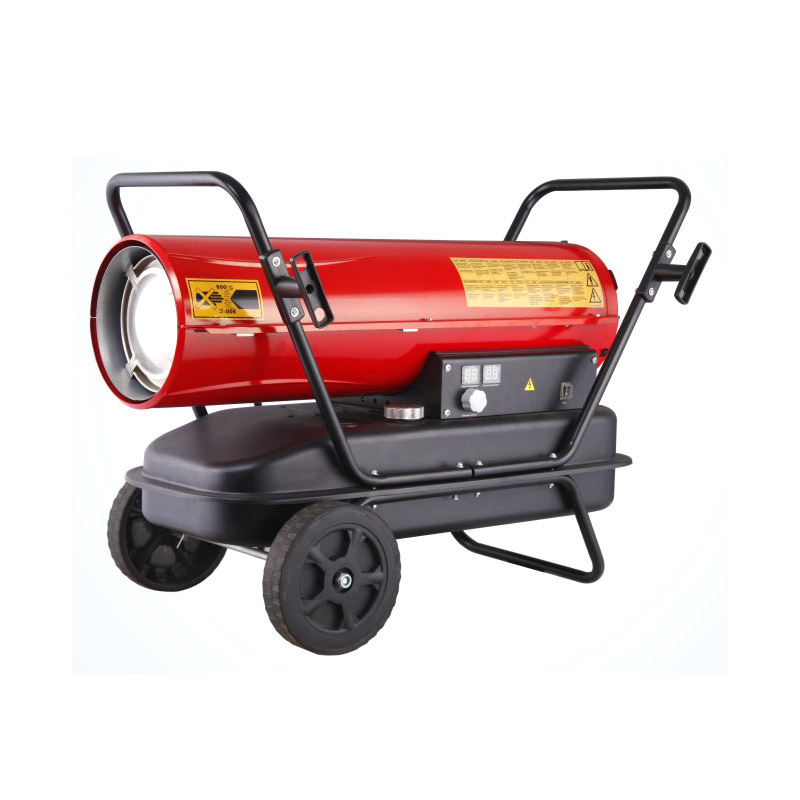

Poultry House Brooding Equipment Diesel Fuel Heater Hot Air Blower Heating Blower 20KW 30KW
Chicken brood air heater machine using kerosene or diesel as fuel, the burning heat will be blow out by fan. Automatic electronic ignition, press button to start operation. And Equipped with flame failure protection and thermal protection device to ensure safe operation; have its self oil tank, no need to install and debug, easy to operation without to remould the circumstance; with a temperature controller, can set your needed temperature, can off heat or start heat automaticlly when its out of the temperature; with wheels and rails, small volume and light weight, canbe moved around easily.
Features
1. Robust and tough design
2. Function on diesel oil or kerosene
3. Stainless steel combustion chamber with fan cooling
4. Durable external powder coating
5. With flame sensor
6. If no oil , heater will cut off the power
7. Fixed Oil display
8. Portable with wheel
9. Cut-off protection,re-plugged in will not work automatically
10. Low pressure atomization,combustion completely
11. Waterproof class IPX4
12. With P.C.panel to smart setting temperature
13. Easy maintenance
14. Ideal for heating warehouses, factories and workshops
Chicken brood air heater machine charactors:
*Compressor heater without stack
*Function on oil or paraffin
*Pneumatic atomization burner
*Stainless steel combustion chamber
*Photoelectric flame sensor
*Automatic electric safety&control device
*Portable with wheel
| Model | YL-DH20 | YL-DH40 |
| Heat output(KW) | 20 | 30 |
| Output(kcl/h) | 20000 | 37000 |
| air output(M3/H) | 400 | 1050 |
| Power(W) | 100 | 150 |
| Consumation(L/H) | 1.8 | 3 |
| Capacity(L) | 21 | 42 |
| Voltage(v/hz) | 220/50 | 220/50 |
| Weight(kg) | 26 | 26 |
| Dimension(cm) | 43×38×83 | 93×46×52 |
1, stainless steel body, containing fan
2, adjustable temperature control: liquid expansion temperature control 0C °-50C ° adjustable, using rainbow mechanical thermostat.
3, using high-performance motor, insulation protection grade F.
4. Built-in automatic overheat protection and restart function to effectively protect the hot air blower.
5, using high-quality components and materials to ensure product quality
The interior is made of highly high-temperature resistant silicone wire, which can be used directly in indoor high-temperature environment to ensure the life of the machine;
Import connectors are used to ensure the reliability and safety of the power connection;
6. The structure design is reasonable and beautiful, the bracket is stable and beautiful, and the movement is convenient and safe.
7. The rear anti-finch mesh cover design effectively increases the air intake efficiency, which is more conducive to motor heat dissipation and saves corresponding machine space.
1. The Industrial Fuel Powered Air Heater is a kind of machine which can burn the vaporized fuel directly and heating the air, keep the air indoor warm and dry.
2.Mobile kerosene/diesel heaters with wheels also suitable for suspended installation.
3.The Industrial Fuel Powered Air Heater is set to be connected to an air duct.
4.Axial fan with electric motor and protection fan guard.
5. The Industrial Fuel Powered Air Heater is designed with overheating protection and temperature limitation warm air.
6. Fresh air can be transported to the air heater by pipeline when the Industrial Fuel Powered Air Heater works.
