Quick Details
-
Place of Origin:
-
Guangdong, China
-
Frequency Range:
-
698-960/1710-2700MHz
-
LTE Antenna Gain:
-
3/5 dBi
-
VSWR:
-
2.0 Max
-
Input Impedance:
-
50 ohm
-
Maximum Input Power:
-
50 W
-
Antenna Dimension:
-
60x60x190 mm
-
Connector Type:
-
N female jack
-
Lighting Protection:
-
DC Ground
-
Rated Wind Velocity:
-
36.9 m/s
-
Waterproof Degree:
-
IP67
Quick Details
-
Type:
-
4G LTE Antenna
-
Brand Name:
-
Feiyuxin
-
Model Number:
-
FYX-4G-E001
-
Place of Origin:
-
Guangdong, China
-
Frequency Range:
-
698-960/1710-2700MHz
-
LTE Antenna Gain:
-
3/5 dBi
-
VSWR:
-
2.0 Max
-
Input Impedance:
-
50 ohm
-
Maximum Input Power:
-
50 W
-
Antenna Dimension:
-
60x60x190 mm
-
Connector Type:
-
N female jack
-
Lighting Protection:
-
DC Ground
-
Rated Wind Velocity:
-
36.9 m/s
-
Waterproof Degree:
-
IP67
Product Description

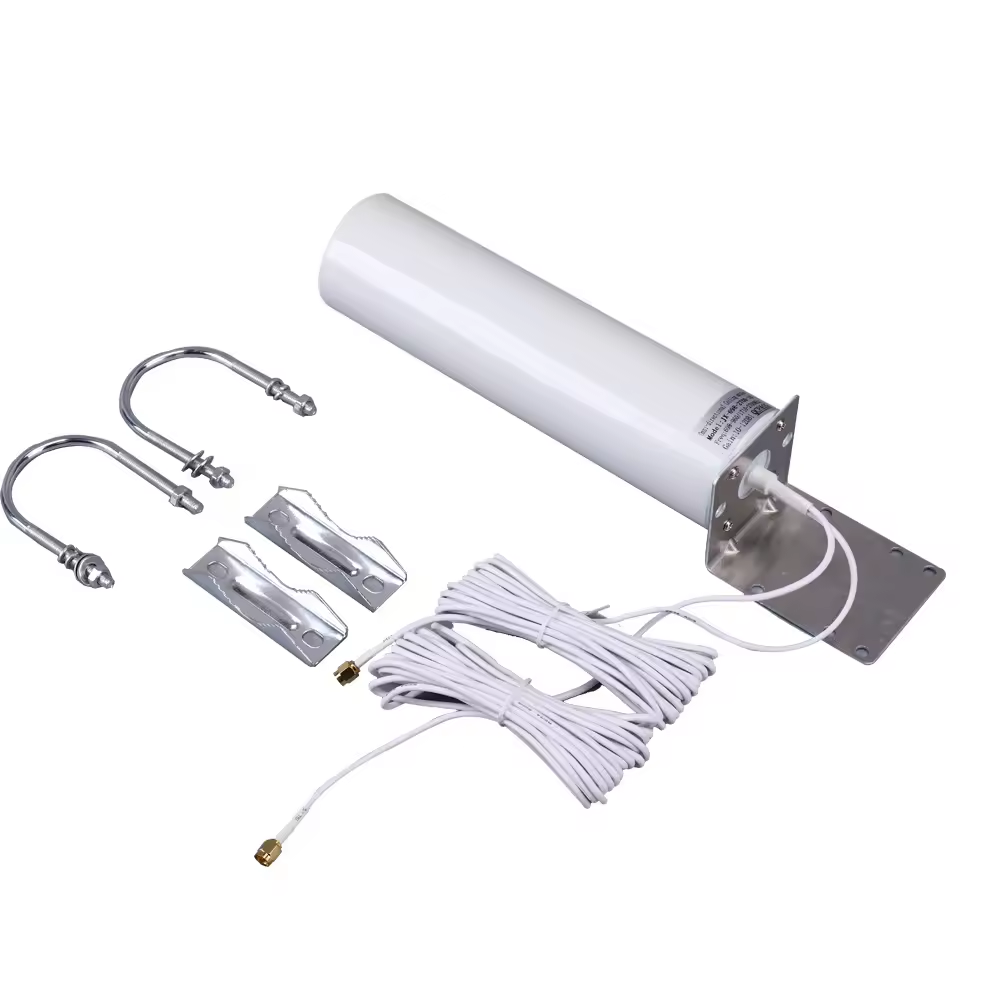

4G LTE Outdoor Omni Antenna
The easy-to-install permanent mount 4G LTE omni-directional antenna improves transmit and receive signals for all 3G and 4G/LTE frequencies.
This antenna is also suitable for unlicensed 900 MHz (ISM) radio applications and 2.4 GHz WiFi / ISM band and GPS use.
The omni-directional design provides high gain without the cellular tower location and alignment hassles of directional antennas.
Its compact size and gloss white finish blend into any environment and make it ideal for many outdoor applications, including building rooftops, utility poles, surveillance trailers, well sites, remote telemetry units, meters, homes and offices.
With the appropriate adapter cable (not included), this antenna is compatible with USB cellular modems and Mi-Fi Hotspots, external 3G/4G cellular modems, routers and signal amplifiers.
Specification
|
I. Electrical Specifications
|
|
|
|
Model Number
|
FYX-4G-E001
|
|
|
Type
|
4G LTE Antenna
|
|
|
Frequency Range
|
698-960/1710-2700MHz
|
|
|
5G Antenna Gain
|
3/5 dBi
|
|
|
VSWR
|
2.0 Max
|
|
|
Input Impedance
|
50 ohm
|
|
|
Maximum Input Power
|
50 W
|
|
|
Connector Type
|
N female jack or N male plug
|
|
|
Lighting Protection
|
DC Ground
|
|
|
II. Mechanical Specifications
|
|
|
|
Antenna Dimension
|
60x60x190 mm
|
|
|
Radome Color
|
White
|
|
|
Operating temperature
|
-40~60 °C
|
|
|
Rated Wind Velocity
|
36.9 m/s
|
|
|
Mounting way
|
Wall mounting
|
|
|
Waterproof Degree
|
IP67
|
|
Packing & Delivery
Package:
Normally packing method: Paper Tube + Master Carton, or Paper Tube + Inner Carton + Master Carton.
Package method can be customized according to customers' requirement.
Delivery:
Sea shipment or air shipment or express.
