Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Laihua
-
Model Number:
-
4XC
-
Material:
-
STEEL
-
Dimension:
-
195*309*345
-
Magnification:
-
10x
-
colour:
-
white
Quick Details
-
Warranty:
-
1years
-
Theory:
-
Metallurgical Microscope
-
Drawtube:
-
BINOCULAR
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Laihua
-
Model Number:
-
4XC
-
Material:
-
STEEL
-
Dimension:
-
195*309*345
-
Magnification:
-
10x
-
colour:
-
white
Specification

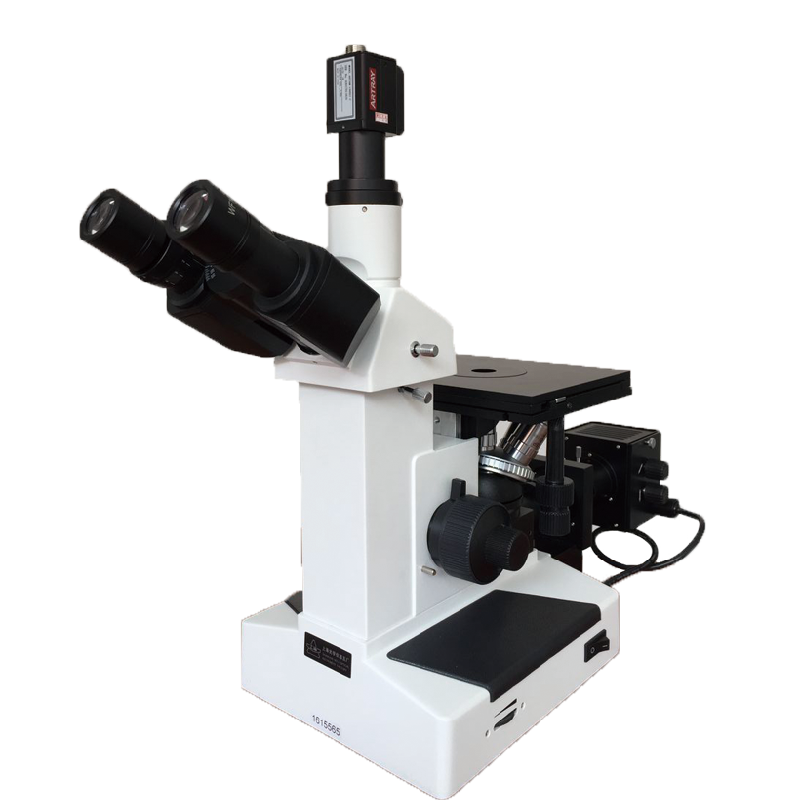

4XC are designed according to ergonomics to minimize operator fatigue. Its modular component design allows free combination of system functions. It covers a variety of observation functions such as bright field, dark field, oblique illumination, polarized light, and DIC differential interference. Functions can be selected according to actual applications.
|
Part
|
Specification
|
4XC
|
|
||
|
optical system
|
Infinity Chromatic Aberration Corrected Optical System
|
·
|
|
||
|
observation tube
|
30° tilt, inverted image, infinity hinged three-way observation tube, interpupillary distance adjustment: 50-76mm, three-level
split ratio 0:100; 20:80; 100:0 |
·
|
|
||
|
eyepiece
|
High eye point wide field plan eyepiece PL10X/22mm
|
·
|
|
||
|
objective lens
|
Infinity long distance bright and dark field objective lens: 10X, 0.25N.A,8.9mm
|
·
|
|
||
|
|
Infinity long distance bright and dark field objective lens: 20X, 0.4N.A, 0.76mm
|
·
|
|
||
|
|
Infinity long distance bright and dark field objective lens: 40x, 0.65N.A,0.69mm.
|
·
|
|
||
|
|
Infinity long-distance light and dark semi-apochromat objective lens: 100X(oil),1.25N.A,0.44mm
|
·
|
|
||
|
converter
|
Internally positioned five-hole brightfield converter with DIC slot
|
·
|
|
||
|
Focus rack
|
Transparent and reflective frame, front low hand position coarse and fine coaxial focusing mechanism. The coarse adjustment stroke
is 33mm, and the fine adjustment accuracy is 0.001mm. Equipped with an adjustable tension device to prevent sliding and a random upper limit device. Built-in 100-240V wide voltage system, 12V100W halogen lamp, transmitted light lighting system, and the upper and lower lights are independently controllable . |
·
|
|
||
|
Stage
|
4" double-layer mechanical mobile platform, platform area 230X215mm, stroke 105x 105mm, with glass platform, right-hand position
X, Y mobile handwheel, with platform interface |
·
|
|
||
|
Lighting system
|
Bright and dark field epi-illuminator, with iris diaphragm, field diaphragm, center adjustable; with bright and dark field
illumination switching device; with filter slot and polarizer slot |
·
|
|
||
|
polarizing accessories
|
Polarizer insert plate, fixed analyzer insert plate, 360° rotating analyzer insert plate .
|
·
|
|
||
|
Metallographic Analysis Software
|
FMIA2023 version metallographic analysis system, 12-megapixel Sony chip camera device USB3.0, 0.5X adapter mirror interface,
high-precision micrometer. |
·
|
|
||
|
Optional configuration
|
|
|
|
||
|
Part
|
Specification
|
|
|
||
|
observation tube
|
30° tilt, erect image, infinity hinged three-way observation tube, interpupillary distance adjustment: 50-76mm, split ratio 100:0
or 0:100 |
o
|
|
||
|
|
5-35° adjustable inclination, erect image, infinity hinged three-way observation tube, interpupillary distance adjustment:
50-76mm, unilateral visibility adjustment: ±5 visibilitys, two-level splitting ratio 100:0 or 0:100 (support 22/23/16mm field of view) |
o
|
|
||
|
eyepiece
|
High eye point and large field of view plan eyepiece PL10X/23mm, adjustable visibility
|
o
|
|
||
|
|
High eye point wide field plan eyepiece PL15X/16mm, visibility adjustable
|
o
|
|
||
|
objective lens
|
Infinity long distance light and shade semi-apochromatic objective: LMPLFL100X/0.80 BD WD2.1
|
o
|
|
||
|
differential interference
|
DIC Differential Interference Components
|
o
|
|
||
|
camera device
|
20 million pixel Sony chip camera device USB3.0, 1X adapter mirror interface
|
o
|
|
||
|
computer
|
HP Business Machine
|
o
|
|
||
