Quick Details
-
Panel Dimensions:
-
1060*685*3mm
-
Panel Efficiency:
-
22%
-
Product name:
-

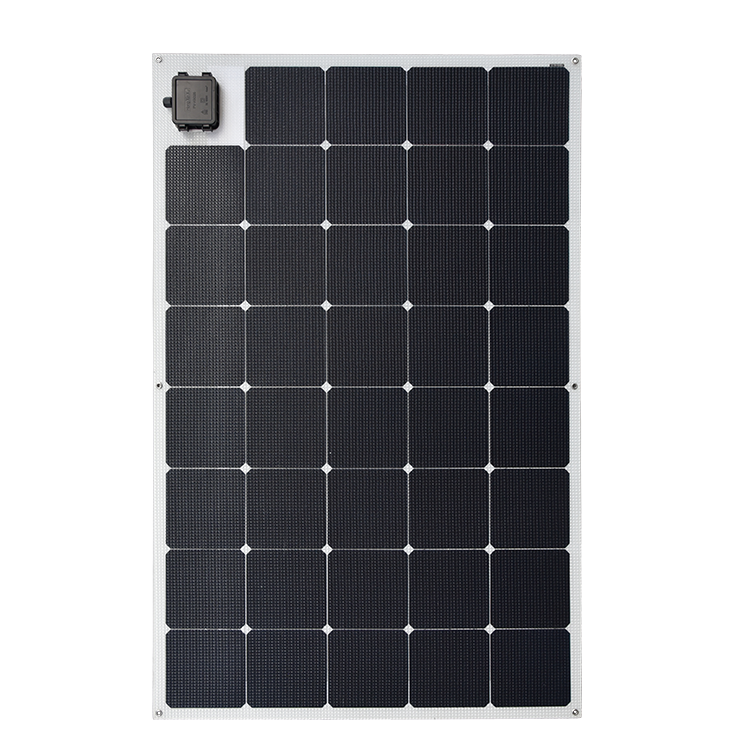

200W ETFE Monocrystalline semi flexible solar panel
-
Max -Power:
-
200
-
Solar cells:
-
Sunpower
-
Min power tolerance:
-
±3%
-
Voltage at Pmax(Vmp):
-
26.4V
-
Current at Pmax(Imp):
-
5.4A
-
Open circuit voltage(Voc):
-
28.3V
-
Short circuit current(Isc):
-
6.2A
-
Max System Voltage(VDC):
-
1000VDC
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
SFP-200
-
Place of Origin:
-
Fujian, China
-
Panel Dimensions:
-
1060*685*3mm
-
Panel Efficiency:
-
22%
-
Product name:
-
200W ETFE Monocrystalline semi flexible solar panel
-
Max -Power:
-
200
-
Solar cells:
-
Sunpower
-
Min power tolerance:
-
±3%
-
Voltage at Pmax(Vmp):
-
26.4V
-
Current at Pmax(Imp):
-
5.4A
-
Open circuit voltage(Voc):
-
28.3V
-
Short circuit current(Isc):
-
6.2A
-
Max System Voltage(VDC):
-
1000VDC
Bulk B Grade 200w 60v 200 190w Flexible Durible 190 Watt Specifications Set Foldable Charger Solar Panel
|
Product name
|
High efficiency SunPower cell 12V 140W ETFE Monocrystalline semi flexible solar panel
|
|||||
|
Max -Power:
|
200W
|
|||||
|
Solar cells:
|
Sunpower
|
|||||
|
Min power tolerance:
|
±3%
|
|||||
|
Voltage at Pmax(Vmp):
|
26.4V
|
|||||
|
Current at Pmax(Imp):
|
5.4A
|
|||||
|
Open circuit voltage(Voc):
|
28.3V
|
|||||
|
Short circuit current(Isc):
|
6.2A
|
|||||
|
Max System Voltage(VDC):
|
1000VDC
|
|||||
|
cell Efficiency:
|
22%
|
|||||
|
Temperature Coefficient of Pmax:
|
-0.32%/
|
|||||
|
Temperature Coefficient of Voc:
|
-1.8mv/
|
|||||
|
Temperature Coefficient of ISC:
|
-0.06%/
|
|||||
|
Nominal Operating Cell Temperature:
|
45±5
|
|||||
|
Data under standard testing conditions(STC):1000W/M²; 1.5AM
|
||||||
|
Dimension:
|
1060*685*3mm
|
|||||
|
Weight: (kg)
|
2.7KG
|
|||||
|
Surface
|
ETFE
|
|||||
|
Back
|
TPT
|
|||||
|
Junction Box(protection degree):
|
IP67/MC4
|
|||||
|
Operating Temperature:
|
-10~60
|
|||||
|
Warranty:For 1 year and service life of 10 years.
|
||||||
