Quick Details
-
Voltage:
-
12V/24V DC, 220V AC
-
Gross weight:
-
18KG
-
Speed detection range of radar::
-
0km/h-250km/h
-
Speed display:
-
10-199km/h red and green color
-
Speed detection error:
-
±1km/h
-
Speed detection distance:
-
>200M
-
Certificate:
-
CE for radar detector
-
Protection Level:
-
IP65
-
Life span:
-
10 years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Elefine
-
Product name:
-
Speed Limit LED solar powered traffic car radar detector sign board
-
Voltage:
-
12V/24V DC, 220V AC
-
Gross weight:
-
18KG
-
Speed detection range of radar::
-
0km/h-250km/h
-
Speed display:
-
10-199km/h red and green color
-
Speed detection error:
-
±1km/h
-
Speed detection distance:
-
>200M
-
Certificate:
-
CE for radar detector
-
Protection Level:
-
IP65
-
Life span:
-
10 years
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Elefine
|
|
Product name
|
Speed Limit LED solar powered traffic car radar detector sign board
|
|
Voltage
|
12V/24VDC, 220VAC
|
|
Gross weight
|
18KG
|
|
Speed detection range of radar:
|
0km/h-250km/h
|
|
Speed display
|
10-199km/h red and green color
|
|
Speed detection error
|
±1km/h
|
|
Speed detection distance
|
>200M
|
|
Certificate
|
CE for radar detector
|
|
Protection Level
|
IP65
|
|
Life span
|
10 years
|
Parameters:
Lead-acid battery: 12V/80AH with box
Speed detection error: ±1km/h
LED Life: ≥100000 hrs
Solar panel: 18V/60W
Speed display: 10-199km/h red and green color
Wind resistance: ≥1.5KN/super meter
Running time: 66hrs
The Max power: 25W
Protection level: ≥IP54
Working Frequency: 24.15GHz±100MHz
Average power: 14.5W
Working Temperature: -30℃ ~ 75℃
Speed detection range of radar: 10km/h-250km/h
Insulation Resistance: ≥10MΩ
Working humidity: ≤95%
Size:
Model 1：1400*800*67mm
Model 2：750*550*67mm

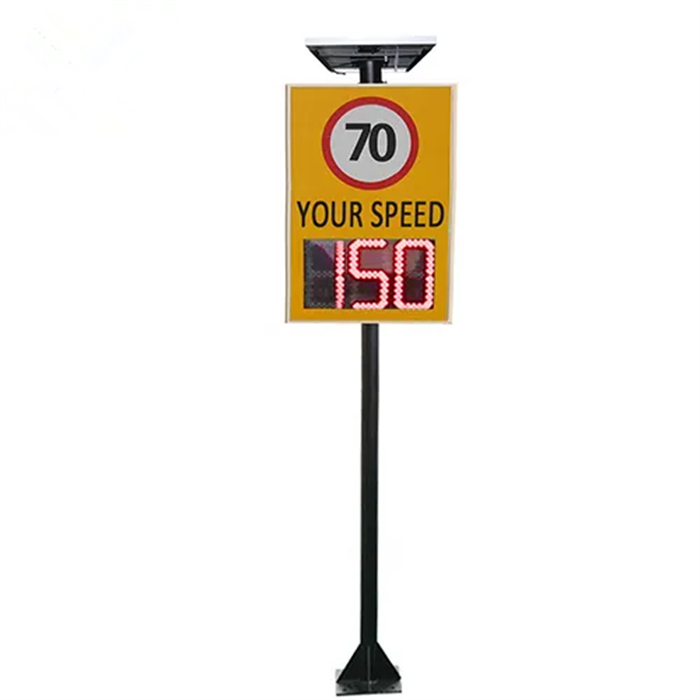

The radar speed sign is displayed digitally on the screen. When the vehicle speed is equal to or greater than the set limit
speed, the display shows a red number to remind the driver to reduce the driving speed and pay attention to driving safety;
when the vehicle speed is less than the set limit speed, the display shows a green number and the driver can drive normally
Radar working drawing：
The radar detection vehicle speed time is about 0.5s, so it can detection many cars at the same time. Normally used at the place where needed lower driving speed such as exit of tunnel, ramp, construction area, etc.
Packing & Delivery
Carton box and wooden package for
Speed Limit LED solar powered traffic car radar detector sign board
