China Supplier 52m Concrete Pump Truck HB52V Truck Concrete Pump with Top Chassis

China Supplier 52m Concrete Pump Truck HB52V Truck Concrete Pump with Top Chassis

FOB Reference Price: Get Latest Price

≥1 Pieces

US $295000

≥3 Pieces

US $285000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Productivity:: 170m³/h

Place of Origin:: Jiangsu, China

Brand Name:: ORIEMAC

Weight:: 34000 kg

Dimension(L*W*H):: 13120*2530*4000mm

Marketing Type:: Hot Product 2024

Chassis model:: ZZ5356V524ME1

Max.power:: 324kW

Engine Emission:: Euro V

Concrete pumping pressure:: 8Mpa

Theoretical pumping times:: 23~26Time/min

Delivery cylinder diameter*stroke:: 260*2000mm

Slewing radius:: 46m

Reach height:: 51.5m

Reach depth:: 36.1m

Slewing angle:: ±270°

Quick Details

Power Type:: Diesel

Max. vertical conveying distance:: 51.5m

Max. horizontal conveying distance:: 46m

Productivity:: 170m³/h

Place of Origin:: Jiangsu, China

Brand Name:: ORIEMAC

Weight:: 34000 kg

Dimension(L*W*H):: 13120*2530*4000mm

Marketing Type:: Hot Product 2024

Chassis model:: ZZ5356V524ME1

Max.power:: 324kW

Engine Emission:: Euro V

Concrete pumping pressure:: 8Mpa

Theoretical pumping times:: 23~26Time/min

Delivery cylinder diameter*stroke:: 260*2000mm

Slewing radius:: 46m

Reach height:: 51.5m

Reach depth:: 36.1m

Slewing angle:: ±270°

PRODUCT DISCRIPTION

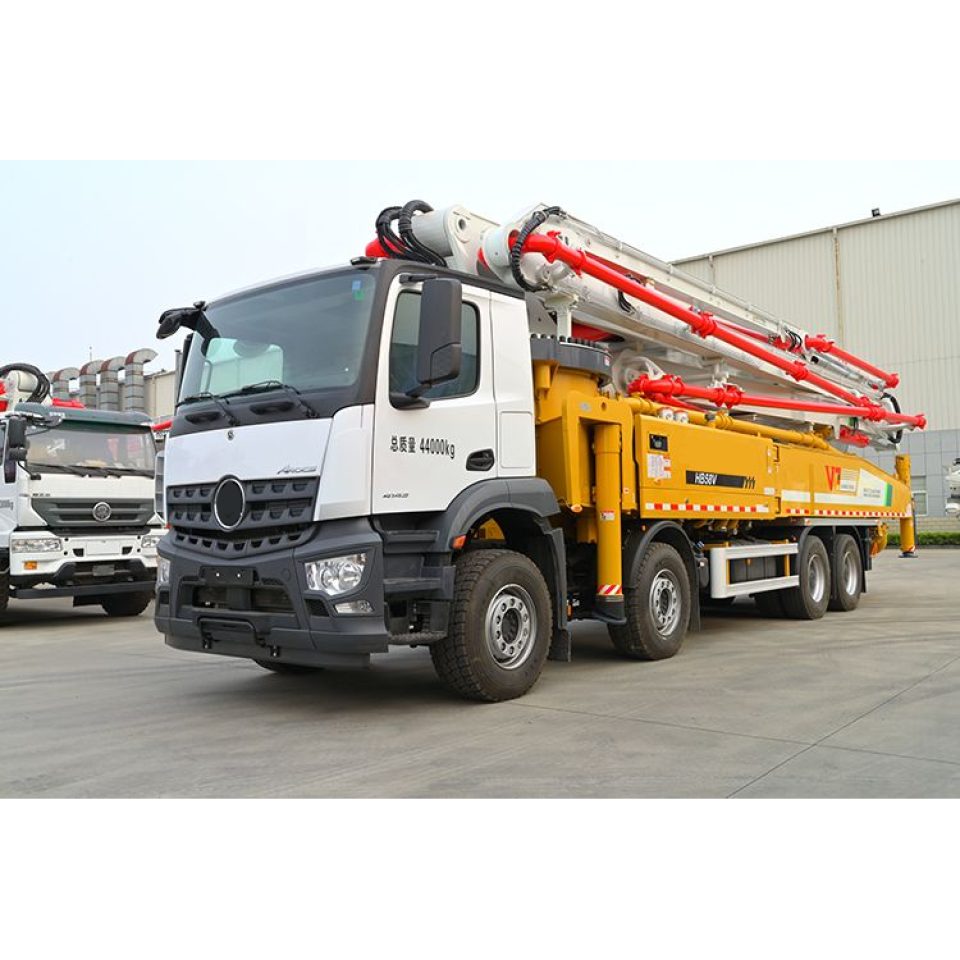

Brand New HB52V 52m Concrete Pump Truck.

*In the design, the chassis is adopted, following the principle of "high technology, high performance, high reliability, and high quality", with curved outriggers, intelligent boom damping technology, and full hydraulic reversing technology, The industry's unique skirt valve pumping system and other product highlights.

Advantages and highlights:

1.Ultimately Safe Boom.

2.Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.

CONTACT

Nancy Hu

Whatsapp/Tel: +86 18221941029

Email: nancy@oriemac.com

PRODUCT PARAMETER

Category	Item	Unit	HB52V
Overall	Outline dimension	mm	1312025304000
Overall		Overall weight	kg	34000
Chassis	Brand	/
		Model	/	ZZ5356V524ME1
		Wheelbase	mm	4800+1400
		Max.power	kW	324
		Emission standard	/	Euro V
Pumping system	Theoretical	m³/h	170
		Concrete pumping pressure	MPa	8
		Theoretical pumping times	Times/min	23~26
		Delivery cylinder diameter × stroke	mm	φ260×2000
Placing boom	Reach height	m	51.5
		Reach depth	m	36.1
		Slewing radius	m	63.9
		Slewing angle	°	±270

PRODUCTS PICTURES

China Supplier 52m Concrete Pump Truck HB52V Truck Concrete Pump with Top Chassis

Quick Details

Quick Details

Brand New HB52V 52m Concrete Pump Truck.
