Quick Details
-
Conductor Material:
-
99.99% bare copper/CCA
-
Color:
-
Customized
-
Conductor:
-
8
-
Jacket:
-
PVC/LSZH/WDZ-PVC/LDPE
-
Length:
-
305m 1000ft
-
Application:
-
cctv/cumputer/cabling system/Multimedia/Industrial
-
Cable Type:
-
Low Voltage
-
Certification:
-
CE /RoHS/CCC/TLC/ISO9001/TUV
Quick Details
-
Brand Name:
-
GHT
-
Model Number:
-
UTP
-
Place of Origin:
-
Guangdong, China
-
Conductor Material:
-
99.99% bare copper/CCA
-
Color:
-
Customized
-
Conductor:
-
8
-
Jacket:
-
PVC/LSZH/WDZ-PVC/LDPE
-
Length:
-
305m 1000ft
-
Application:
-
cctv/cumputer/cabling system/Multimedia/Industrial
-
Cable Type:
-
Low Voltage
-
Certification:
-
CE /RoHS/CCC/TLC/ISO9001/TUV

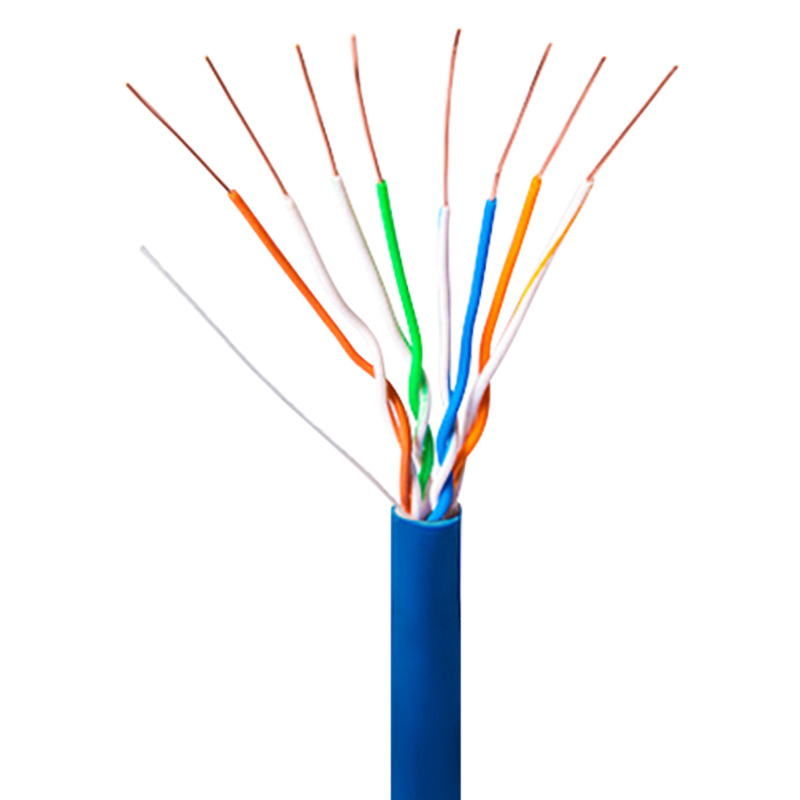

cat5e utp 4pr 24awg /cat6/cat6a/cat7 customized indoor/ outdoor copper cca lan cable cat5 305mt
Specifications:
|
Model |
Cat5e UTP Cable |
|
Conductor Size |
24AWG or Stranded 7x0.12mm/7x0.16mm/7x0.20mm |
|
Conductor Material |
BC/CCA/CCS |
|
Nu m ber Of Conductor |
4P |
|
Flammability Grade: |
CMX,CM,MP,CMG,MPG,CMR,MPR |
|
Indoor / Outdoor |
Single jacket(PVC) / Double jacket(PVC+PE) |
|
Insulation Thickness |
0.90 ±0.0 3 mm HDPE/LDPE |
|
Number of pairs: 4 pairs |
Pair1: Orange/White Orange Pair2: Blue/ White Blue Pair3: Green/ White Green Pair4: Brown/White Brown |
|
Jacket Material |
PVC, ROHS PVC, LSZH PVC |
|
DC Resistance(Max.) |
9.5Ω/100m |
|
DC Resistance Imbalance |
2.50% |
|
Working Capacitance(Max.) |
5.4nF/100m |
|
Insulation Resistance |
10000MΩ.km |
|
Transmission Velocity |
65% |
|
Operating Tempera ture |
-20 °C - +75 °C |
|
PVC Jacket Color |
As client’s request. |
Application:
Ethernet; 100 Base-T; ATM ; Trunk Cabling ; Widely apply to network wiring structure and transmission media,such as audio,video,digital communication,message and so on.
| Length*Width*Height(cm) | 1*20GP(ROLLS) | 1*40HQ(ROLLS) | |
| CAT5e indoor | (2pcs)43*35*35cm | 1040 | 2560 |
| CAT5e outdoor | (2pcs)49*37*37.5cm | 800 | 1950 |
| CAT6 indoor | (2pcs)47*39.5*40cm | 727 | 1800 |
| CAT6 outdoor | (2pcs)47*41*40cm | 690 | 1728 |
