Quick Details
-
Application:
-
Courtyard
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XIANFENG
-
Model Number:
-
swing door operator ZK1800
-
Type:
-
Automatic Door Operators
-
Power supply:
-
AC 220V/50Hz
-
Motor Voltage:
-
DC 24V
-
Rated force:
-
2500N
-
Opening time:
-
22-27s
-
Max. Gate Section Weight:
-
600kg
-
Certificate:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Courtyard
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XIANFENG
-
Model Number:
-
swing door operator ZK1800
-
Type:
-
Automatic Door Operators
-
Power supply:
-
AC 220V/50Hz
-
Motor Voltage:
-
DC 24V
-
Rated force:
-
2500N
-
Opening time:
-
22-27s
-
Max. Gate Section Weight:
-
600kg
-
Certificate:
-
CE

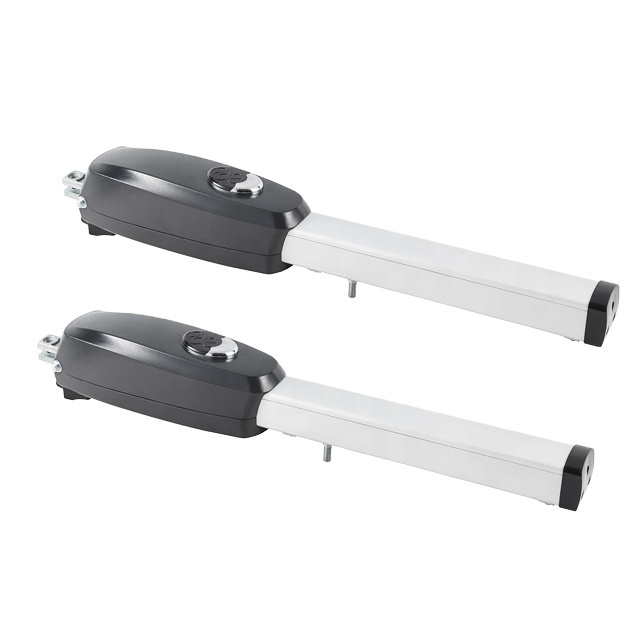

ZK1800 Swing gate operator
Main features
-
Worm screw driving, powerful & smooth.
-
Aluminum body, quality painted.
-
Water-proof design.
-
Simple & safe release by special key.
-
Two pieces of blocks are provided to prevent the door over travelling.
-
Built–in mechanical limit switch, easy for adjustment.
-
Electric lock 12V DC.
-
Available for button switch, keypad, photocells and alarm lamp.
-
It also can be used as Linear Actuator, max. travel 330mm.
-
Comply with industry standard of the ministry of construction of the people 's republic of china ‘Sliding & Swing gate opener’.
Technical specification
|
Type |
ZK1800 |
|
Power supply |
AC220×(1±10%)V 50Hz |
|
Motor voltage |
DC24V |
|
Motor speed |
2800 rpm |
|
Rated force |
2500N |
|
90 ° opening or closing time (one gate leaf) |
22-27S |
|
Working angle of gate |
90° or 105° |
|
Max. gate section weight |
≤600kg |
|
Max. gate section width |
3 m |
|
Ambient temperature |
-20 ºC ~ +50 ºC |
|
Rated power |
180W |
