Quick Details
-
Brand Name:
-
ZOMAGTC
-
Model Number:
-
ZM-0806
-
Voltage:
-
220V 50HZ 1P
-
Cutting Speed:
-
1200mm/s
-
Driver:
-
servo motor
-
Size:
-
3200*1100*1100mm
-
Product name:
-
Acrylic Honeycomb Board Graphtec Cutting Plotter Plotting Machine
-
Max Plotting Size:
-
800*600mm
-
Min. Sheet Size:
-
210*297mm
-
Moving speed:
-
1200mm/s
-
Repeat precIsion:
-
±0.1mm
-
Interface:
-
Ethernet port
-
Control panel:
-
LCD touch screen
-
Rated power:
-
4KW
-
Cutting thickness:
-
≤6mm
-
Auto Sheet Capacity:
-
<100mm
Quick Details
-
Paper Feed Width:
-
800mm
-
Cutting Width:
-
800mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Model Number:
-
ZM-0806
-
Voltage:
-
220V 50HZ 1P
-
Cutting Speed:
-
1200mm/s
-
Driver:
-
servo motor
-
Size:
-
3200*1100*1100mm
-
Product name:
-
Acrylic Honeycomb Board Graphtec Cutting Plotter Plotting Machine
-
Max Plotting Size:
-
800*600mm
-
Min. Sheet Size:
-
210*297mm
-
Moving speed:
-
1200mm/s
-
Repeat precIsion:
-
±0.1mm
-
Interface:
-
Ethernet port
-
Control panel:
-
LCD touch screen
-
Rated power:
-
4KW
-
Cutting thickness:
-
≤6mm
-
Auto Sheet Capacity:
-
<100mm

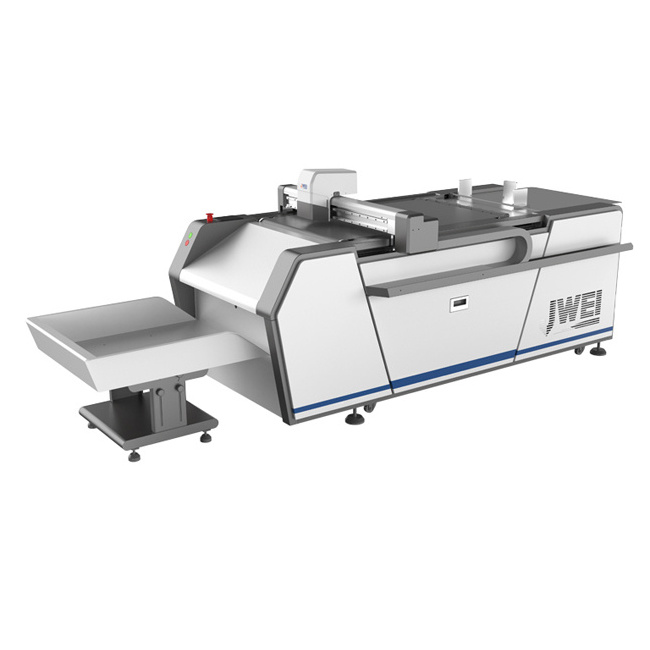

ZM-0806 Corrugated Board Acrylic Honeycomb Board Graphtec Cutting Plotter Plotting Machine Price
Specification
| Auto Feeder | |
| Auto Sheet Capacity | <100mm |
| Feeding System | Vacuum feed with clamps mounted on gantry |
| Max Sheet Size | 800*600mm |
| Min Sheet Size | 210*297mm |
| Standard Tools | CCD camera, electric Oscillating tool,full-cut tool, half-cut tool, creasing wheel |
| Optional | Bevel cutting tool, creasing wheel tool for corrugated board |
| Cutting Sysrem | |
| Productivity | 15 sec-45 seconds per SRA3 sheet(average 24s-depending upon complexity) 70 sec/B2 sheet(Varies depends on complexity of material) |
| Max Cutting Speed | 1200mm/s |
| Cutting Thickness | <=6mm |
| Repeat accuracy | 0.1mm |
| Software and Connection | |
| File Form | PLT, DXF,XML,CF2 |
| Interface | Ethernet Port |
| Connect | Lan |
| Green Credentials | |
| Voltage | 220V 50HZ 1P |
| Power | 4KW |
| Size | 3200*1100*1100mm |
| Weight | 380KG |
Application
Widely used in packaging and signs, including, paper, board, sticker, vinyl and so on. It is the key equipment for small volume production and sample making. This machine provides perfect solutions for printing.
| Packing Details | Wooden case/Carton |
| Delivery time | Within 5-7 working days |
| Transport way | Sea,Express,Truck,Air |
