Quick Details
-
Panel Size:
-
10.4inch
-
Max Resolution:
-
1024*768
-
Product name:
-
Transparent lcd panel
-
Keyword:
-
transparent advertising display
-
Certificate:
-
CE/CCC/FCC/ROHS/ISO9001
-
Optional Function:
-
Android System
-
Warranty:
-
1 Year
-
Panel brand:
-
SUMSUNG LG AUO
-
LED backlight:
-
Need
-
Drive board optional:
-
TV/PC/Stand-alone board/android board
-
Transparency:
-
85% with LED backlight
-
Appliation:
-
indoor advertising
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YAMA
-
Model Number:
-
YM-TLP-10.4
-
Panel Size:
-
10.4inch
-
Max Resolution:
-
1024*768
-
Product name:
-
Transparent lcd panel
-
Keyword:
-
transparent advertising display
-
Certificate:
-
CE/CCC/FCC/ROHS/ISO9001
-
Optional Function:
-
Android System
-
Warranty:
-
1 Year
-
Panel brand:
-
SUMSUNG LG AUO
-
LED backlight:
-
Need
-
Drive board optional:
-
TV/PC/Stand-alone board/android board
-
Transparency:
-
85% with LED backlight
-
Appliation:
-
indoor advertising

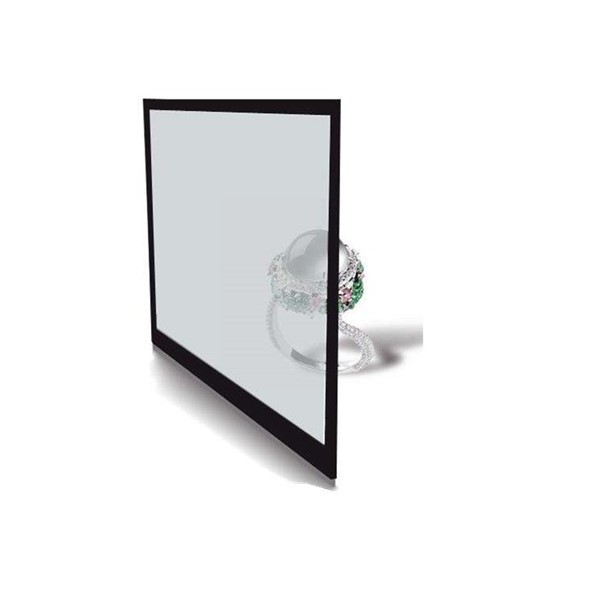

advertising equipment see though display 10.4inch transparent LCD panel
What accessories are needed to use a transparent LCD panel ?
Different type requires different accessories:
1) PC playing: transpraent LCD panel + PC + power supply;
2) Stand-alone advertising: transparent LCD panel + stand-alone advertising board + remote controller + power supply ;
3) TV advertising: transparent LCD panel+TV board + remote controller + power supply.
How to use transparent LCD panel ?
1. Combine with a cabinet / showcase. (need LED strips)
2. Mounted in a wall. (need LED strips)
9inch to 26inch transparent lcd panel display:
Over 32inch transparent lcd panel display:
Specifications of transparent LCD display features
1. Structure: Two tempered glass to protect transparent display, the
middle is the transparent display
2. Transparent panel is one of the electrics products, need electricity
display
3. Transparent panel doesn’t have brightness for itself, so need electricity
to work with LED lights to transparent display, the transparency is
70%~80%, the picture is clear(without LED lights, it can electricity
display, but the transparency is only about 10%~20%, the picture is dim
and can’t see clearly all )
4. Transparent display is suitable to be made to a closed product
showcase or cabinet, and in the showcase, the side of right front of the
transparent display require white out, so can make a better effect. LED
light strips need to place to the top of showcase or the surrounding of the
side of transparent display, and the LED light is white for the best.
10.4inch transparent lcd panel
|
|
10.4 inch |
|
Screen brand |
Mitsubishi , Tianma |
|
Panel Resolution |
800*600 (4:3) |
|
Viewing Angle |
85/85/85/85(L/R/U/D) |
|
Transparent |
75-85% (Cooperate with LED lamp box) |
|
Color Gamut |
72% |
|
Color |
16 .7M |
|
Scan rate |
60Hz-75Hz |
|
Brightness |
0 cd/m2 |
|
Signal interface |
LVDS |
|
Lamp type |
NO |
|
Contrast Ratio |
700:1 |
|
Response Time |
5ms |
|
Operating Temp |
0°~50° |
|
Active Area |
212*159mm |
|
Screen size ±3mm) |
248mm*252mm*7mm & 1.1Kg |
|
Mains |
12V/ 3.3A |
TV play board function parameters
|
Support Audio/Video Coding Format |
MEPG4(AVI, DIVX, XVID),MEPG2(DVD, VOB, mpeg), MEPG1(VCD, DAT, MPG),MP3,JPG ,BMP,GIF,PNG |
|
Slide Show |
Support background music when playing picture |
|
Interface Language |
Support different languages(Chinese, English, etc.) |
|
Play Log |
Support the auto-save of all play records and the save time is adjustable |
|
File Category Play |
Support disc repeat, single video file repeat, single picture file repeat, etc. |
|
Speaker |
2*2Ω2W |
|
Calendar&Time |
Support check calendar, adjust time and display it on the screen on/off |
|
Support Memory Medium Type |
Support memory medium type : USB, update through USB |
|
Interface |
VGA , USB, TV , (ACPI) , (Audio interface) , (DVD interface) |
|
Picture Play Mode |
Support the conventional switching broadcast images |
|
Accessory |
Tele-controller, mains,VGA line |
Transparent LCD panel enhance business image due to its fashion, technology, quality, taste and personality.
1. We use Samsung/AUO/Sharp/CHIMEI/LG orginal LCD transparent panel, 100% brand-new, quality is guaranteed;
2. 75-85% high transmittance, best to display your real objects;
3. 2000:1 high contrast, 1920*1080 high resolution, show digital information perfectly;
4. Automatically turn on/ off setting, operation is convenient.
5. Life-span:over 7-9years.
6. Safety packaged.
7. 1year free warranty.
Packing: wooden case
Shiping: By sea, by air and by expresses delivery.
1.Trade terms
>>
FOB,CIF,EXW
2.Payment terms
>>
TT,Western Union,PayPal,Credit card,E-checking
3.Payment condition
>>
50% deposit in advance,50% balance before delivery
4.Delivery time
>>
5~7days after deposit,3~4 working days for inventory
5.Packing
>>
Neutral carton,wooden case for large size
6.Shipping
>>
By sea,by air and by express
Transparent LCD Panel Display CE,ROHS Certifications
