Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
HIGH-LIFT
-
Model Number:
-
DS-806A+B350a
-
Warranty:
-
12 Months
Quick Details
-
Power:
-
0.75/1.1KW
-
Power Supply:
-
110/220/380V
-
Balancing Speed:
-
7RPM
-
Place of Origin:
-
China
-
Brand Name:
-
HIGH-LIFT
-
Model Number:
-
DS-806A+B350a
-
Warranty:
-
12 Months

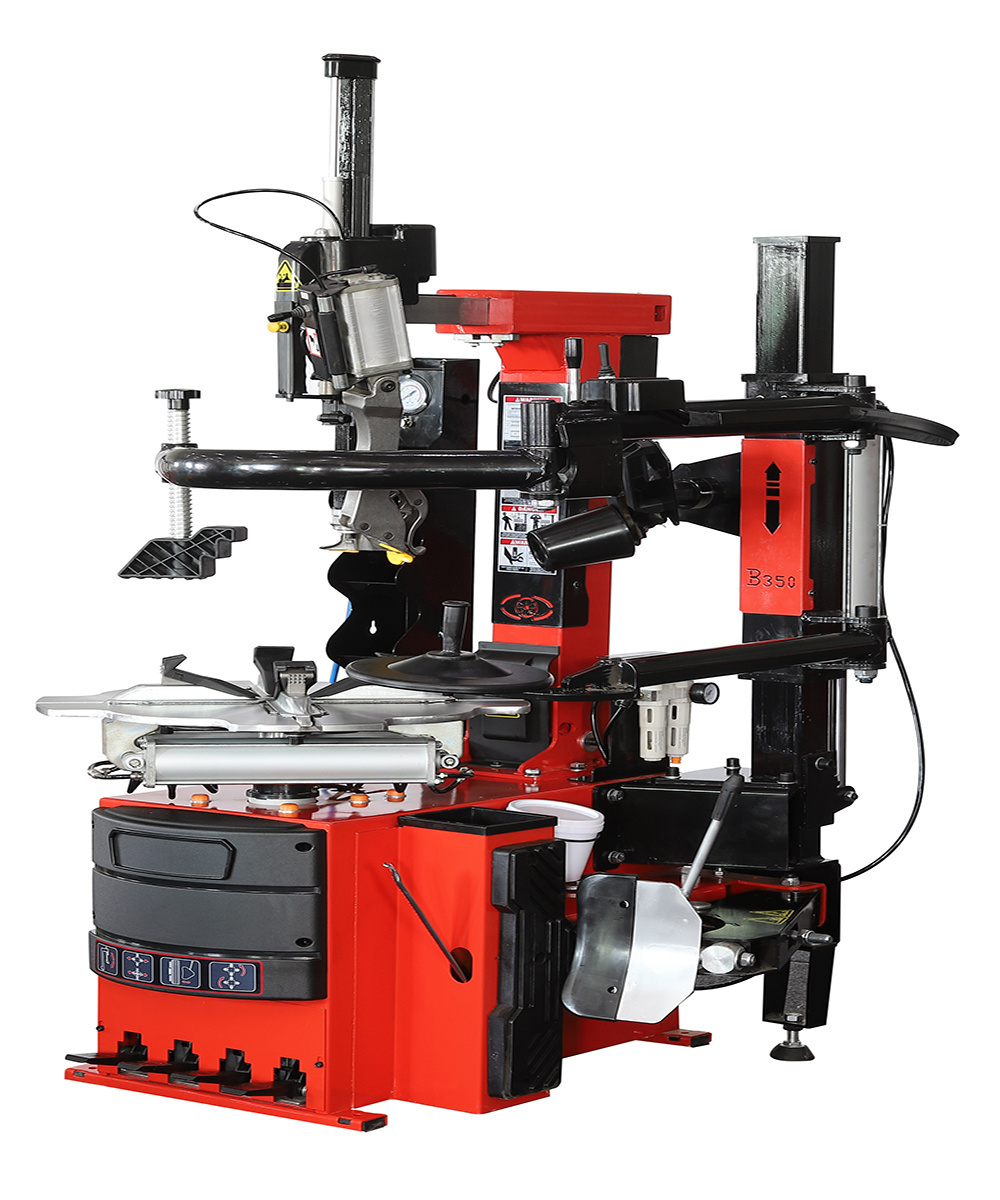

Product display
Technical parameter
|
Voltage
|
110/220/380v
|
|
Power
|
0.75/1.1kw
|
|
Turntable rotation
|
7rpm
|
|
Max wheel diameter
|
1000mm
|
|
Tire width
|
3-14''
|
|
Helper arm net weight /gross weight
|
110kg/122kg
|
|
Rim clamp from outside
|
10-20''
|
|
Rim clamp from inside
|
13-24''
|
|
Working pressure
|
8-10bar
|
|
Net weight/gross weight
|
300kg/329kg
|
|
Packing size
|
1120*860*860mm
|
|
Helper arm packing size
|
1020*380*350mm
|
Show details
aluminum pedal control unit enhanced head breaker arm stainless steel working head
FEATURES
1.Enhanced S41 hexagon shaft with better intensity to avoid mechanical deformation during working
2.Equipped with the protective sleeve for clamping jaws to protect the tire and rim
3.Equipped with mechanical arm which makes mountiong and demounting tire more quicker and easier
4.The clamping jaws are made of precision steel cast which is firm and durable
5.Base of mechanical arm is a complete one set inside with wear-resistant macromolecule plastic slide block to achieve smooth operating
6.The design is novel the layout is reasonable in order to use more flexible and convenient
7.Advanced designed automatic working head instead of crowbar equipped with plastic protective pad to avoid damage the rim
8.Universal bead breaker more suitable for operation
9.Iron stamping pedal durable for life (optional aluminum pedal)
10.Change the clamping range by adjusting the position of the slider
11.Vertical inflation-tool box with elegant appearance
12.Hexagonal pneumatic lifting operation time and labor saving
