Quick Details
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
350*500*850mm
-
Weight:
-
150 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

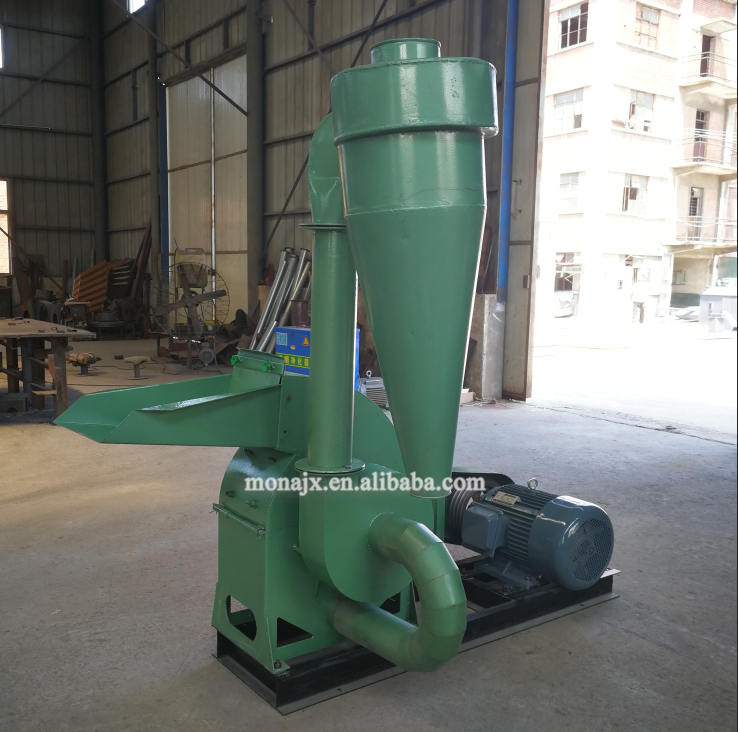

9fq wheat straw hammer mill/crusher
-
Application:
-
Poultry Farm
-
Raw material:
-
grain/straw/stalk/wood chips/tree branches
-
Capacity:
-
Hour
-
Usage:
-
Animal Poultry Livestock Feeding
-
Color:
-
Clients' Requirement
-
Function:
-
Raw Material Cutting
-
Motor:
-
Chinese Brand
Quick Details
-
Max. Capacity:
-
1ton/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MONA
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
350*500*850mm
-
Weight:
-
150 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
9fq wheat straw hammer mill/crusher
-
Application:
-
Poultry Farm
-
Raw material:
-
grain/straw/stalk/wood chips/tree branches
-
Capacity:
-
Hour
-
Usage:
-
Animal Poultry Livestock Feeding
-
Color:
-
Clients' Requirement
-
Function:
-
Raw Material Cutting
-
Motor:
-
Chinese Brand
maize corn hammer mill 800-1500kg/h crusher feed processing maize corn soybean bran nut shell grinder machines price
maize corn hammer mill 800-1500kg/h crusher feed processing maize corn soybean bran nut shell grinder machines price
Introdution of garin/straw/stalk/wood chips/tree branches and forest waste hammer mill crusher grinder:
1.9FQ series Hammer Mill crusher are used for grinding biomass,like straw/stalk/wood chips/
tree branches and forest waste,grains like corns, soybeans and maize ect.into small granular
material of less than 3-5mm,which is perfect size for pelletizing and briquetting.
2.The machine could be driven by the diesel engine, motor, tractor, etc.It is equipped with high
carbon steel blade and works with high efficiency. widely used in swine farm, wood factory,
etc.
Working Principle of garin/straw/stalk/wood chips/tree branches and forest waste hammer mill crusher grinder:
The case is made of high quality materials welded mill feed inlet at the top, can be compatible with various forms of feeding structure, hammer symmetrical arrangement. When the mill work, material into the crushing chamber, high-speed rotary hammer blow and sieve friction at the material gradually be crushed, and the centrifugal force and airflow through the bottom of the discharge port.
Advantages of garin/straw/stalk/wood chips/tree branches and forest waste hammer mill crusher grinder:
1.Unique design , widely used in the poultry feed industiral .
2. Export to many countries all over the world.
3.Best price , reliable quality .
4.easy to use and maintain.
Structure of garin/straw/stalk/wood chips/tree branches and forest waste hammer mill crusher grinder:
The series hammer mill/animal feed crusher consists of base, rotor, feeder, crushing room,
cyclone and etc.
Technical of garin/straw/stalk/wood chips/tree branches and forest waste hammer mill crusher grinder:
|
Model |
Power(kw) |
Output(kg/h) |
Size(mm) |
Weight(kg) |
|
MN9FQ-320 |
Single phase 3 |
100-200 |
350*500*850 |
50 |
|
MN9FQ-360 |
Single phase 4hp |
200-300 |
400*550*850 |
60 |
|
MN9FQ-360 |
Three phase 5.5 |
300-400 |
650*600*1050 |
110 |
|
MN9FQ-400 |
Three phase5.5/7.5 |
400-600 |
700*650*1050 |
160 |
|
MN9FQ-420 |
Three phase7.5/11 |
800-1000 |
780*700*1100 |
180 |
|
MN9FQ-500 |
Three phase11/15 |
1000-1500 |
900*850*1250 |
200 |
|
MN9FQ-600 |
Three phase22 |
1500-2000 |
1350*950*1550 |
505 |
|
MN9FQ-700 |
Three phase27 |
2000-3000 |
1450*1050*1650 |
735 |
|
MN9FQ-800 |
Three phase30 |
3000-5000 |
1750*1350*1800 |
1220 |
|
MN9FQ-900 |
Three phase37 |
4000-8000 |
1950*1550*1950 |
1735 |
|
MN9FQ-1000 |
Three phase55 |
5000-12000 |
2250*1750*2050 |
2485 |
