Quick Details
-
Voltage:
-
220V
-
Power:
-
800W
-
Dimension(L*W*H):
-
60*20*20
-
Weight:
-
23 KG
-
Material:
-
SS316L
-
Bag size:
-
#1,#2,#3,#4,#5,#6,#7
-
Max.operating pressure:
-
6.0 bar(87psi)
-
Designed pressure:
-
9.6bar (104psi) within 30 mins.
-
inlet and outlet form:
-
Tri-clamp 25mm,32mm,38mm,51mm
-
Application 1:
-
Honey filter
-
Application 2:
-
Beverage filtration
-
Connector:
-
Tri-Clamp / Flanged Type / Thread
-
Max.Operating T:
-
120 degree
Quick Details
-
Core Components:
-
Stainless steel filter housing
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TS filter
-
Voltage:
-
220V
-
Power:
-
800W
-
Dimension(L*W*H):
-
60*20*20
-
Weight:
-
23 KG
-
Material:
-
SS316L
-
Bag size:
-
#1,#2,#3,#4,#5,#6,#7
-
Max.operating pressure:
-
6.0 bar(87psi)
-
Designed pressure:
-
9.6bar (104psi) within 30 mins.
-
inlet and outlet form:
-
Tri-clamp 25mm,32mm,38mm,51mm
-
Application 1:
-
Honey filter
-
Application 2:
-
Beverage filtration
-
Connector:
-
Tri-Clamp / Flanged Type / Thread
-
Max.Operating T:
-
120 degree

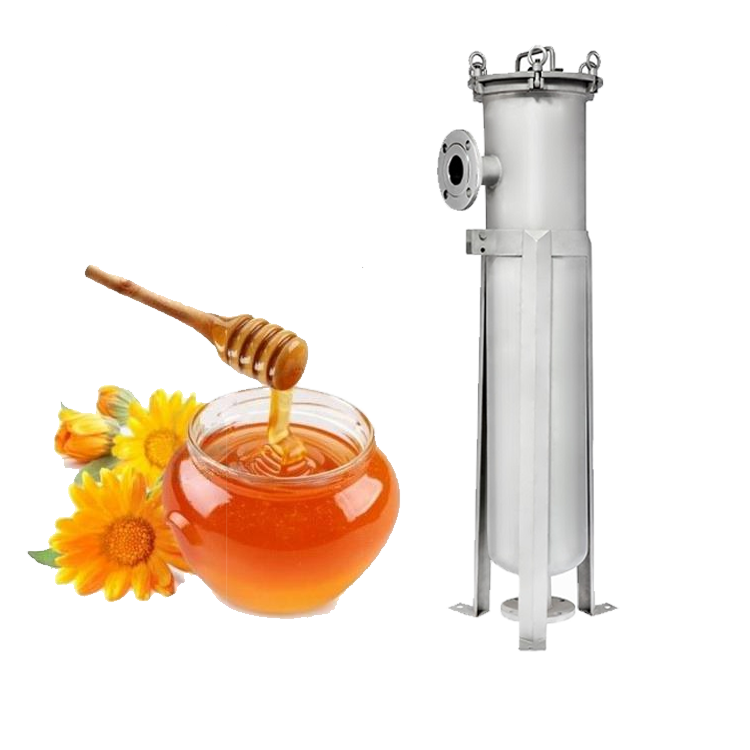

Sanitary small honey processing 304/ 316 stainless steel filter housing for removing the pollen and particles in honey
| Customized products are available, OEM service provided | |
| body | stainless steel 304/ 316L |
| surface treatment | polishing |
| body size |
Φ 220mm, H950mm |
| filtration precision | 1-500μm |
| filtration area | 0.45m² |
| flow rate | 30m³/h 132GPM |
| working temperature | 40 °C 100 °F |
| max pressure | 6.0bar 87psi |
| O-ring | Buna N |
| bag material | PP,PE |
| inlet/outlet connections | NPT |
| Connector | Female pipe thread, tri clamp, flange |
| Surface treatment | polished;sand blasting |
1) - Different kinds of bag support baskets to fit for wide range of filter bags
2) - Quality stainless steel 304 or 316L material
3) - High pressure and high temperature design
4) - More filtration area, high efficiency
5) - Low running cost, long service life
6) - Application: Liquid prefiltration, particularly suitable for lasrge volume or high viscosity liquids
