Quick Details
-
Model Number:
-
AHC811-24V
-
Max. Current:
-
16A
-
Product name:
-
AHC811-24V 7-day electronic online timer,intelligent timer switch
-
Frequency:
-
50~60Hz for AC
-
Operating voltage:
-
24V AC & DC
-
Terminal Quantity:
-
5
-
Installation type:
-
Din rail
-
Type of contact:
-
Changeover contact
-
Ambient humidity:
-
35~85%RH
-
Power reserve:
-
3 years
-
Test approval:
-
CE
-
Consumed power:
-
4V
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALION
-
Model Number:
-
AHC811-24V
-
Max. Current:
-
16A
-
Product name:
-
AHC811-24V 7-day electronic online timer,intelligent timer switch
-
Frequency:
-
50~60Hz for AC
-
Operating voltage:
-
24V AC & DC
-
Terminal Quantity:
-
5
-
Installation type:
-
Din rail
-
Type of contact:
-
Changeover contact
-
Ambient humidity:
-
35~85%RH
-
Power reserve:
-
3 years
-
Test approval:
-
CE
-
Consumed power:
-
4V
-
Certification:
-
CE

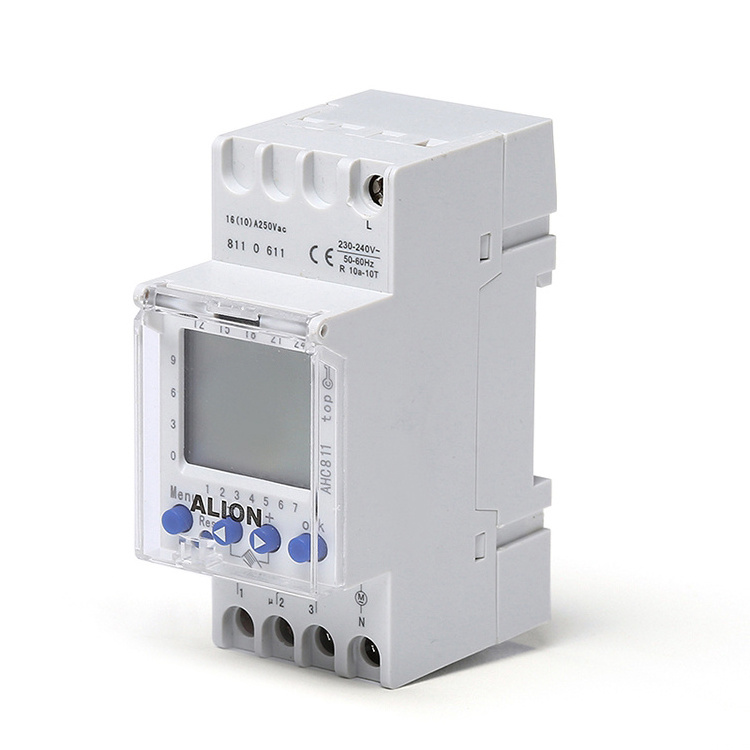

AHC811-24V online timer,intelligent 7 day electronic time switch
Focus On Time Control For 24 Years
The AHC811 Din rail weekly program digital time switch have a wide screen, display more information, and unit have more diverse functions such as pulse program, cycle program, holiday program.
Description
- Digital time switch
- 44 memory locations
- 44 Memory pulse program
- 20 pulse programs(1s~59m59s)
- 18 Cycle program
- Random or Holiday program
- Language(English/Spain/France/Portugal/Germany/Italy)
- Automatic summer/winter time
EUROPE
Great Britain
U.S.A/Canada
- PIN Code
Display year/month/day/hour/minute
- Built-in lithium battery,power failure memory
- Fully operable without mains connection
- Preset date and time
- Manual ON/OFF control
- Screw terminals
Applications
- Light of billboard or showcase control
- Air-condition or Commercial Refrigeration
- Pumps/Motor/Fan Control
- Hydroponic Systems
- Wastewater Treatment Systems
- Generator Exercising
- Boilers / Heater Control
- Pool & Spa
- Ventilation
- Hot Water Pump Circulation
- Lighting Panel Control
- Landscape Lighting
- Bug and Pest Control Systems
- Aerobic Waste Water Systems
- General Electrical Circuits
Product Selection
| Product Type | Voltage | Frequency | Consumed power | Terminal |
| AHC811-220/50Hz | 220V | 50Hz | 4VA | 5 |
| AHC811-220/60Hz | 60Hz | |||
| AHC811-110/50Hz | 110V | 50Hz | 5VA | |
| AHC811-110/60Hz | 60Hz | |||
| AHC811-12V | 12V AC/DC | 50/60Hz for AC | 4VA | |
| AHC811-24V | 24V AC/DC | |||
| AHC822-220/50Hz | 220V | 50Hz | 7.5VA | 8 |
| AHC822-220/60Hz | 60Hz | |||
| AHC822-110/50Hz | 110V | 50Hz | ||
| AHC822-110/60Hz | 60Hz | |||
| AHC822-12V | 12V AC/DC | 50/60Hz for AC | ||
| AHC822-24V | 24V AC/DC |
Technical Data
| Product Type | AHC811/822 | ||||
| Operating voltage | 220V AC | ||||
| Width | 2 modules | ||||
| Installation type | Din rail | ||||
| Type of contact | Changeover contact | ||||
| Switching output | Phase-independent | ||||
| Method of connection terminal | Screw terminals | ||||
| Power reserve | 4 years | ||||
|
Switching capacity at
250 V AC, cos φ = 1 |
16A | ||||
|
Switching capacity at
250 V AC, cos φ = 0,6 |
10A | ||||
| Incandescent/halogen lamp load 230V | 2600W | ||||
| Energy saving lamps | 170W | ||||
| LED lamp < 2 W | 30W | ||||
| LED lamp 2–8 W | 100W | ||||
| LED lamp > 8 W | 120W | ||||
| Fluorescent lamp load (electronic ballast) | 650W | ||||
| Fluorescent lamp load (conventional) not corrected | 1000VA | ||||
| Fluorescent lamp load (conventional) series-corrected | 1000VA | ||||
| Fluorescent lamp load (conventional) parallel-corrected | 730 VA 80uF | ||||
| Time accuracy at 25 °C | typical ± 2 s/day (quartz) | ||||
| Test approval | CE | ||||
| Type of protection | IP 20 | ||||
| Protection class | II according to EN 60 730-1 | ||||
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic | ||||
| Work temperature: | -10 ~ +50 °C (non-icing) | ||||
| Ambient humidity: | 35~85%RH | ||||
Connection Example
Scale Drawings
